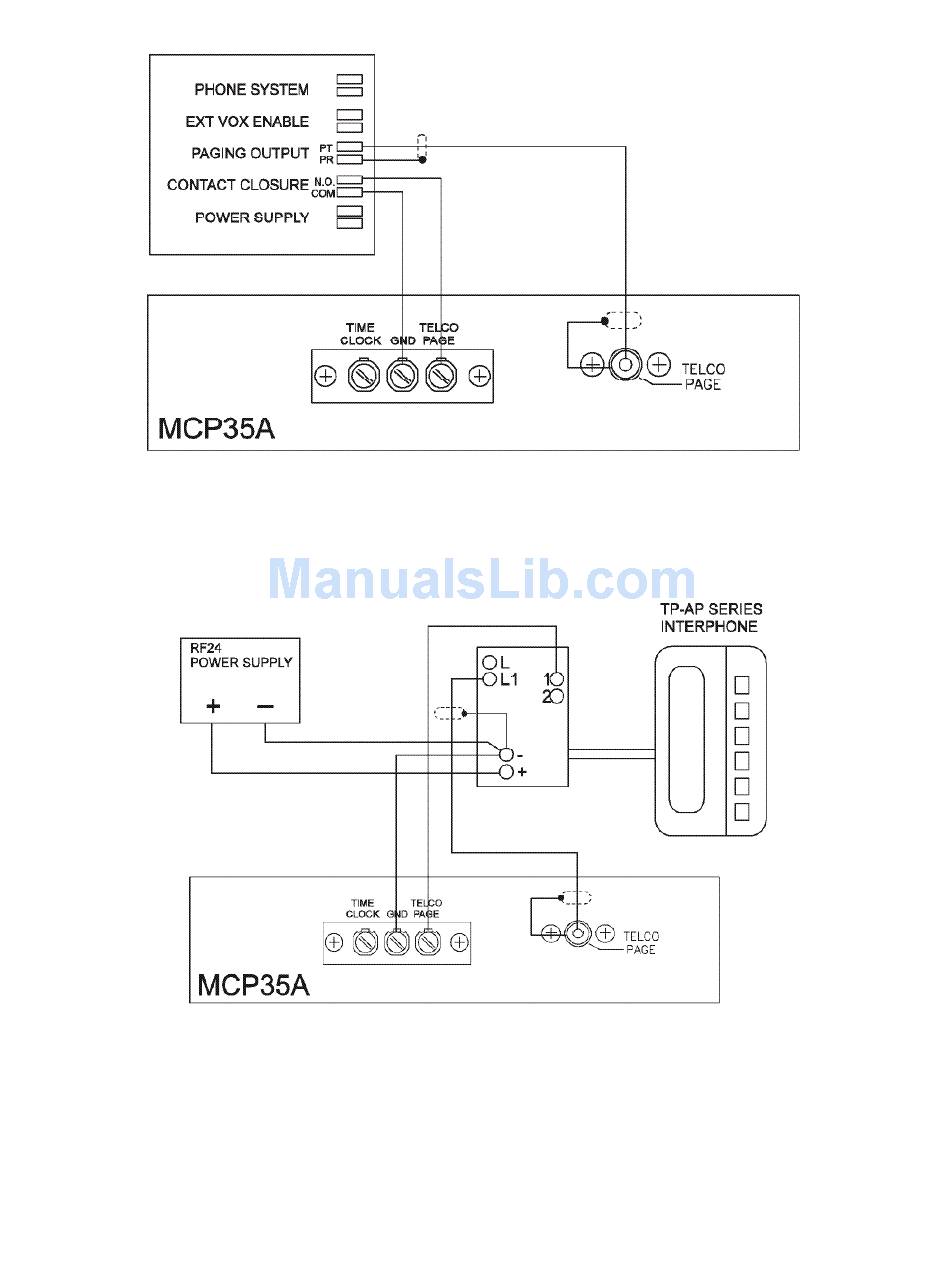

The Bogen model TAMB telephone interface module can be used to make a remote page through the telephone system.
Note: Jumper J3 on the MCP35A printed circuit board must be set to the TELCO position. See the Special Adjustments
section for jumper information.
A Bogen TP-AP Series Interphone can be used to make a remote page.The figure below shows the connection.
Note: Jumper J3 on the MCP35A printed circuit board must be set to the TELCO position. See the Special Adjustments
section for jumper information.
12
