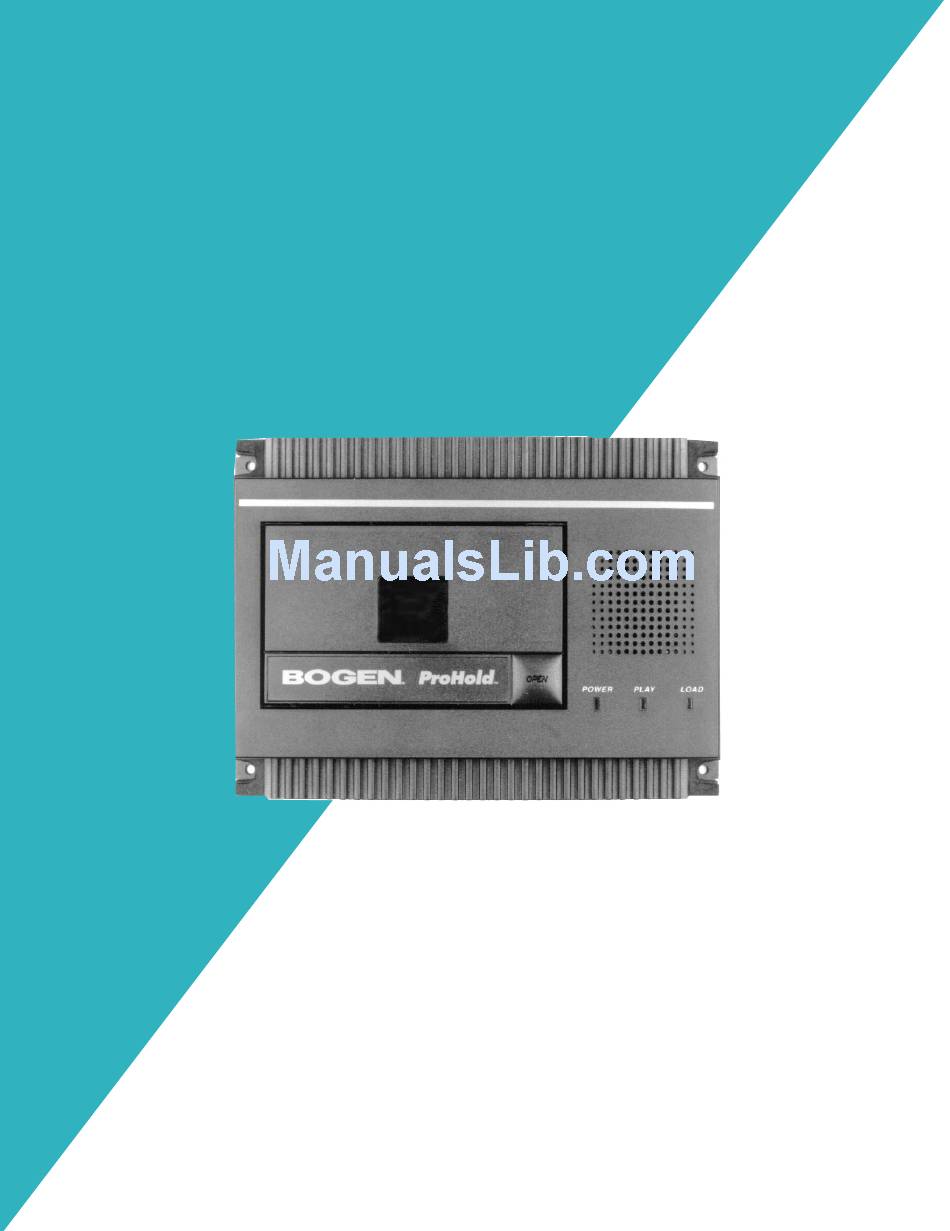

- Page 1 ProHold Models PRO4, PRO8, PRO12, and PRO16 User’s Guide 54-5037-01 Printed in Korea 9903...
-
Page 2: Table Of Contents
FCC Notice Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: Introduction
Introduction The Bogen ProHold Series of Music-On-Hold (MOH) Digital Announcers are designed to play a digitally recorded announcement over the MOH bus of most telephone systems. Four models are available. The PRO4 has a recording time of 4 minutes. The PRO8 has a recording time of 8 minutes. -
Page 4: Front Panel Features
Front Panel Features Cassette Tape Compartment High-quality cassette tape drive mechanism accepts a standard cassette tape. Compartment door has self-adjusting feet to assure proper positioning of the cassette. The cassette tape size should not exceed 60 minutes. Monitor Speaker Lets you monitor the tape during the preview and downloading process, and when the unit is operating. -
Page 5: Controls And Connectors
Controls and Connectors TRIG. VOLUME TRIG External trigger jack for single-play operation. Accepts a mono or stereo mini-plug (you can monitor system operation when a stereo mini-plug is used). VOLUME Controls output level of the monitor speaker and the 1 WATT and LINE 600 Ω... -
Page 6: Installation
Installation Unpacking & Inspection The ProHold unit was carefully checked at the factory. Inspect the carton and unit for signs of damage. If damage is found, notify the dealer from whom the unit was purchased. If the unit was shipped to you, file a claim with the transportation carrier. Installation Precautions Observe the following installation precautions: •... -
Page 7: Operation
Operation Use the following procedure to load a prerecorded cassette tape. Place the POWER switch in the ON position. The red POWER indicator will illuminate. Be sure the SPEAKER switch is in the ON position (if desired), and set the VOLUME control between its minimum and maximum positions. -
Page 8: External Trigger Operation
External Trigger Operation The ProHold can be set for single-play operation, activated by an external trigger. (Note: The PLAY LED on the front panel illuminates only during digital playback.) The TRIG mini-jack on the top panel accepts a mono or stereo mini-plug, as shown in the illustration below. -
Page 9: Troubleshooting
Troubleshooting Power LED does not light Turn POWER switch ON. Check power supply connection. Tape plays too fast The tape is not threading properly. Remove the cassette and tighten up any slack in the cassette. Output sounds distorted over telephone Reduce volume or change type of output used. -
Page 10: Specifications
Specifications Sampling Frequency: Memory Capacity: Power Required: External Speaker Power: Input: Output: Controls: Indicators: Mounting: Dimensions: Shipping Weight: Tape Cassette: 64 Kilobits/sec. (KBPS) PRO4 - 4 min.; PRO8 - 8 min.; PRO12 - 12 min.; PRO16 - 16 min. 12V AC/DC. Power supply included with the unit provides 12V AC @ 800mA from a 120V AC source 1 watt into 8 ohms High-quality cassette-tape mechanism.
