Panasonic TH-P50C10D Service Manual

Hide thumbs Also See for TH-P50C10D:
Table of Contents

Advertisement

Quick Links

TH-P50C10D
Model No.
TH-P50C10K
TH-P50C10M
TH-P50C10S
TH-P50C10T
GPH12DA Chassis
© Panasonic Corporation 2009.
Unauthorized copying and distribution is a violation
of law.
ORDER NO. PSG0905074CE
Plasma Television

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TH-P50C10D and is the answer not in the manual?

Questions and answers

حسین عبادیان
February 10, 2025

مشخصات پین های روی برد پاور p-on

User image 67a9c2192bff5
0

Subscribe to Our Youtube Channel

Related Manuals for Panasonic TH-P50C10D

Summary of Contents for Panasonic TH-P50C10D

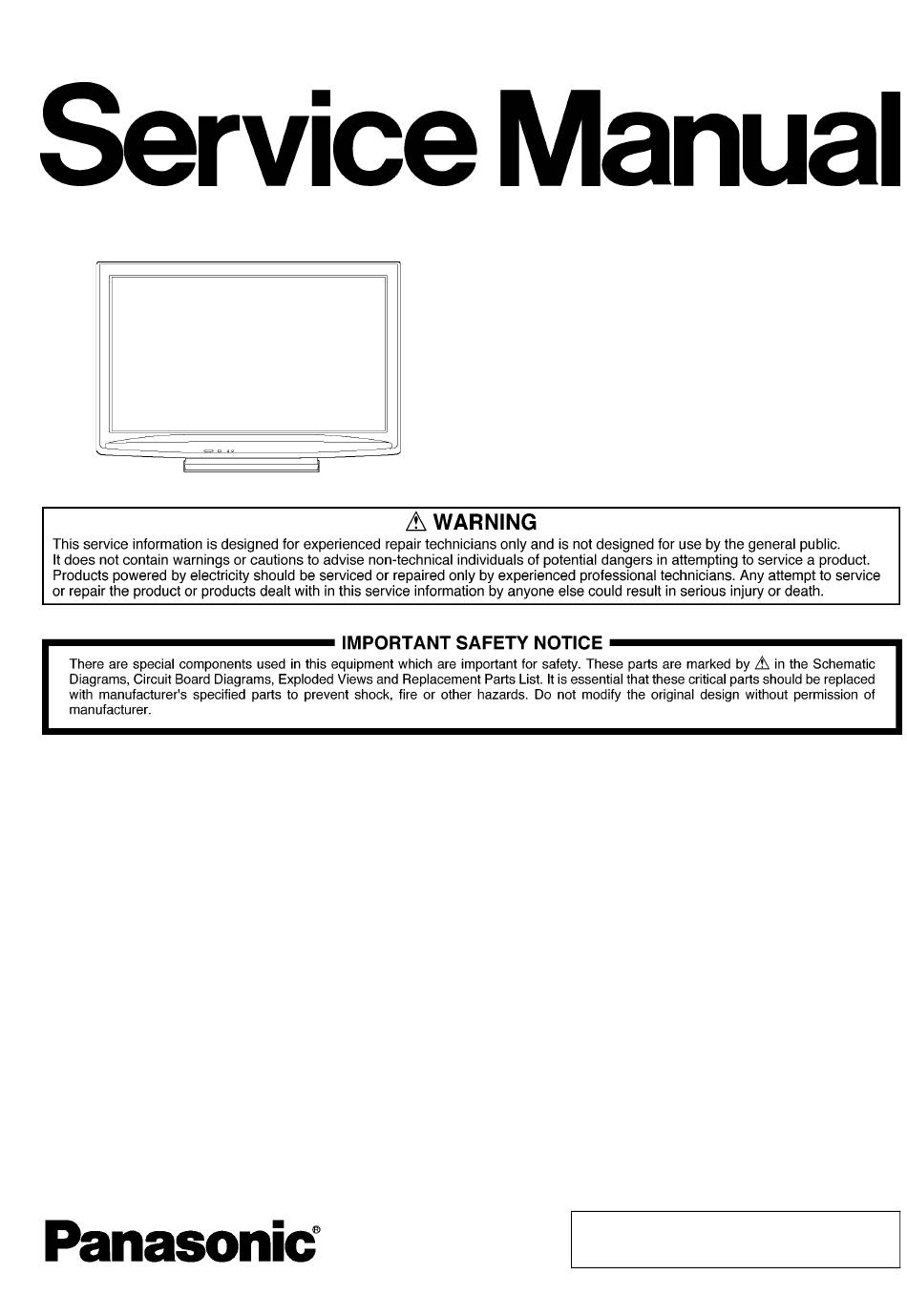

  • Page 1 ORDER NO. PSG0905074CE Plasma Television TH-P50C10D Model No. TH-P50C10K TH-P50C10M TH-P50C10S TH-P50C10T GPH12DA Chassis © Panasonic Corporation 2009. Unauthorized copying and distribution is a violation of law.
