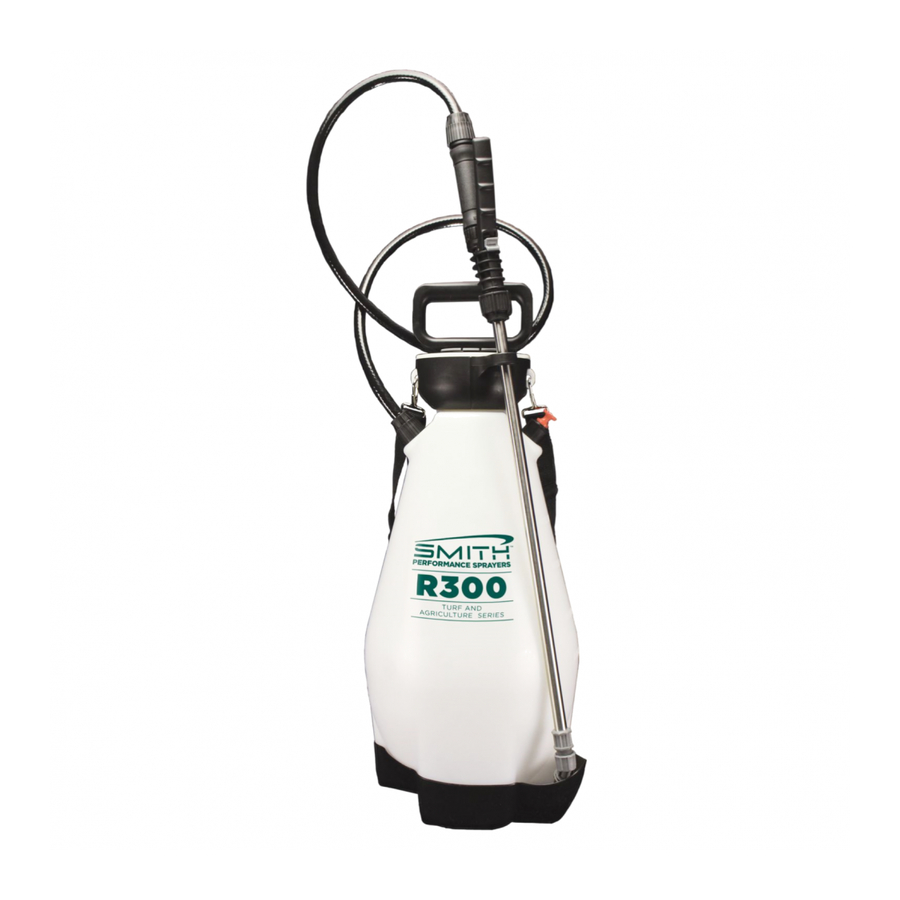

Smith R300 Setting Up

1. Assemble Hose To Tank

IMPORTANT: Do not attempt to heat or alter
hose, hose nut, or barb prior to assembly.
. Align hose barb tabs, push hose barb into tank
1
until it stops (See Figure A).
2. Slide hose nut into place and turn clockwise to
tighten. (See Figure B).
NOTE: Do not use tools to tighten hose nut.
2. Assemble Wand & Nozzle
Place nozzle onto the end of the
wand assembly and tighten securely.
(See Figure C)

3. Assemble Shut-off to Wand

Screw on Wand Assembly to end of Shut-off
and tighten securely. (See Figure D)

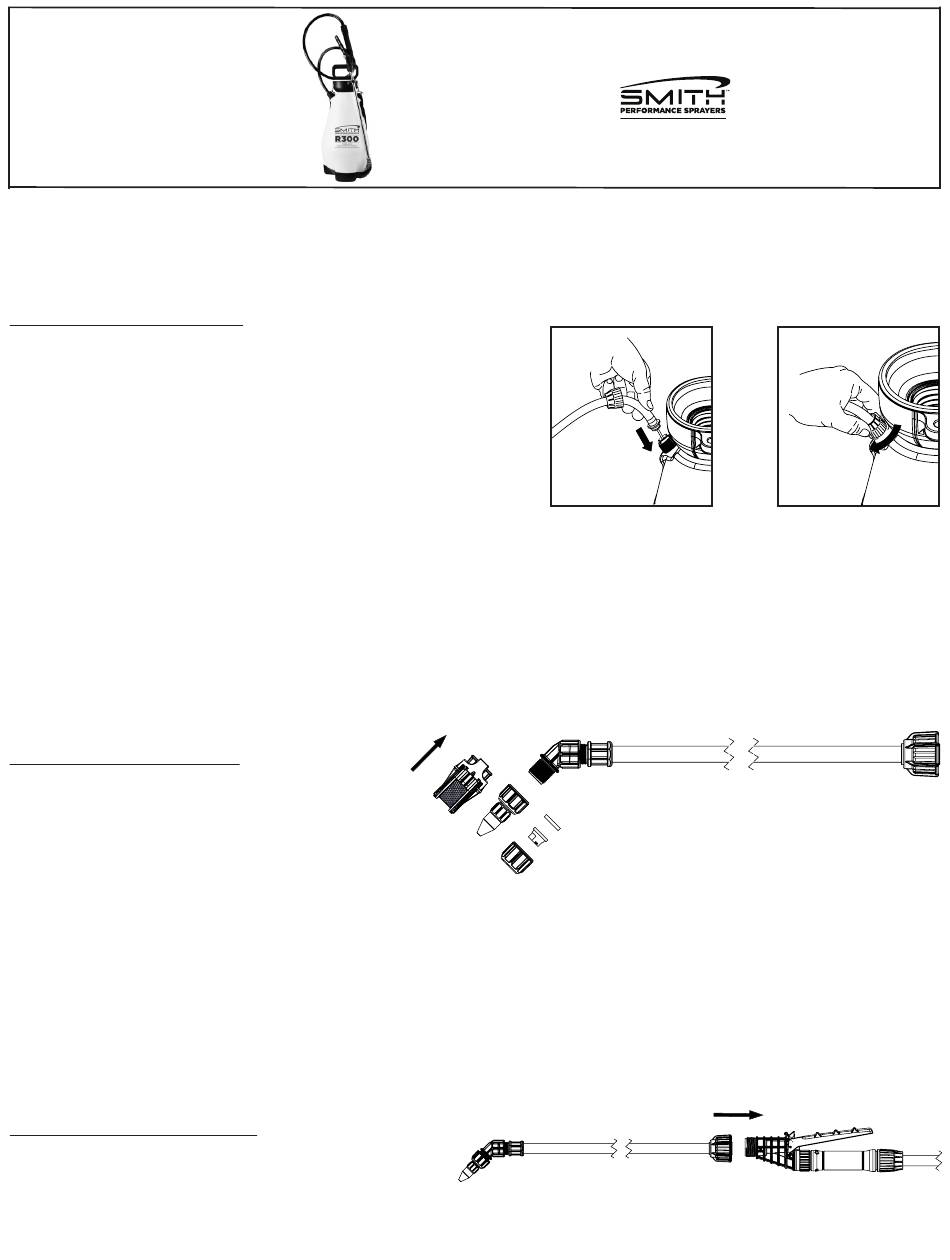

SETTING UP YOUR
R300 SPRAYER
190436
Configuration for
nozzle tip sprayers
Figure A
Figure C
Figure D
Figure B
