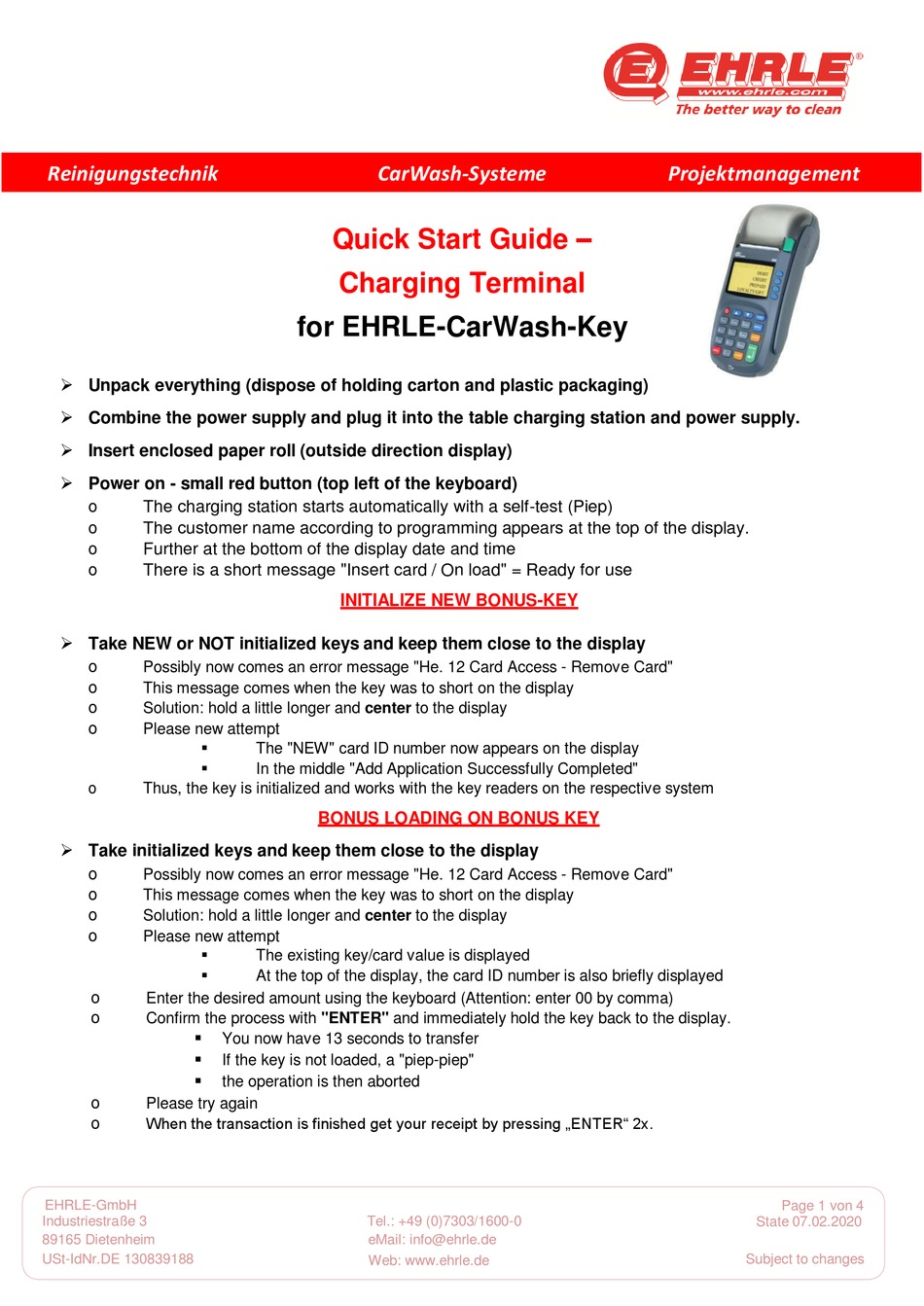

EHRLE CarWash-Key Quick Start Manual

Reinigungstechnik
 Unpack everything (dispose of holding carton and plastic packaging)
 Combine the power supply and plug it into the table charging station and power supply.
 Insert enclosed paper roll (outside direction display)
 Power on - small red button (top left of the keyboard)
o The charging station starts automatically with a self-test (Piep)
o The customer name according to programming appears at the top of the display.
o Further at the bottom of the display date and time
o There is a short message "Insert card / On load" = Ready for use
 Take NEW or NOT initialized keys and keep them close to the display
o
Possibly now comes an error message "He. 12 Card Access - Remove Card"
o
This message comes when the key was to short on the display
o
Solution: hold a little longer and center to the display
o
Please new attempt


o Thus, the key is initialized and works with the key readers on the respective system
 Take initialized keys and keep them close to the display
o
Possibly now comes an error message "He. 12 Card Access - Remove Card"
o
This message comes when the key was to short on the display
o
Solution: hold a little longer and center to the display
o
Please new attempt


o
Enter the desired amount using the keyboard (Attention: enter 00 by comma)
o
Confirm the process with "ENTER" and immediately hold the key back to the display.



o
Please try again
When the transaction is finished get your receipt by pressing „ENTER" 2x.
o
EHRLE-GmbH
Industriestraße 3
89165 Dietenheim
USt-IdNr.DE 130839188
CarWash-Systeme
Quick Start Guide –
Charging Terminal
for EHRLE-CarWash-Key

INITIALIZE NEW BONUS-KEY

The "NEW" card ID number now appears on the display
In the middle "Add Application Successfully Completed"

BONUS LOADING ON BONUS KEY

The existing key/card value is displayed
At the top of the display, the card ID number is also briefly displayed
You now have 13 seconds to transfer
If the key is not loaded, a "piep-piep"
the operation is then aborted
Tel.: +49 (0)7303/1600-0
eMail: info@ehrle.de
Web: www.ehrle.de
Projektmanagement
Page 1 von 4
State 07.02.2020
Subject to changes
