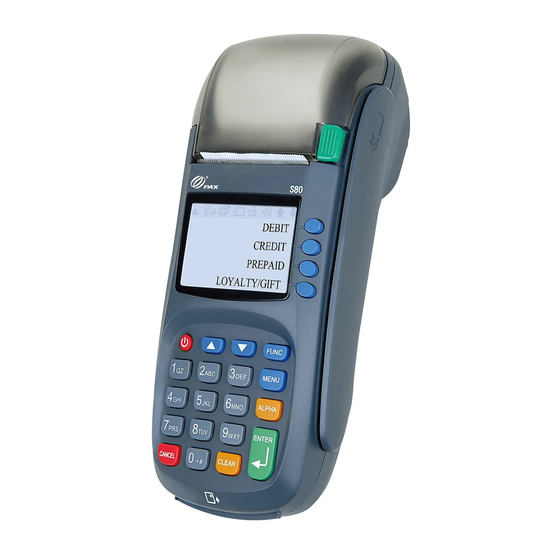

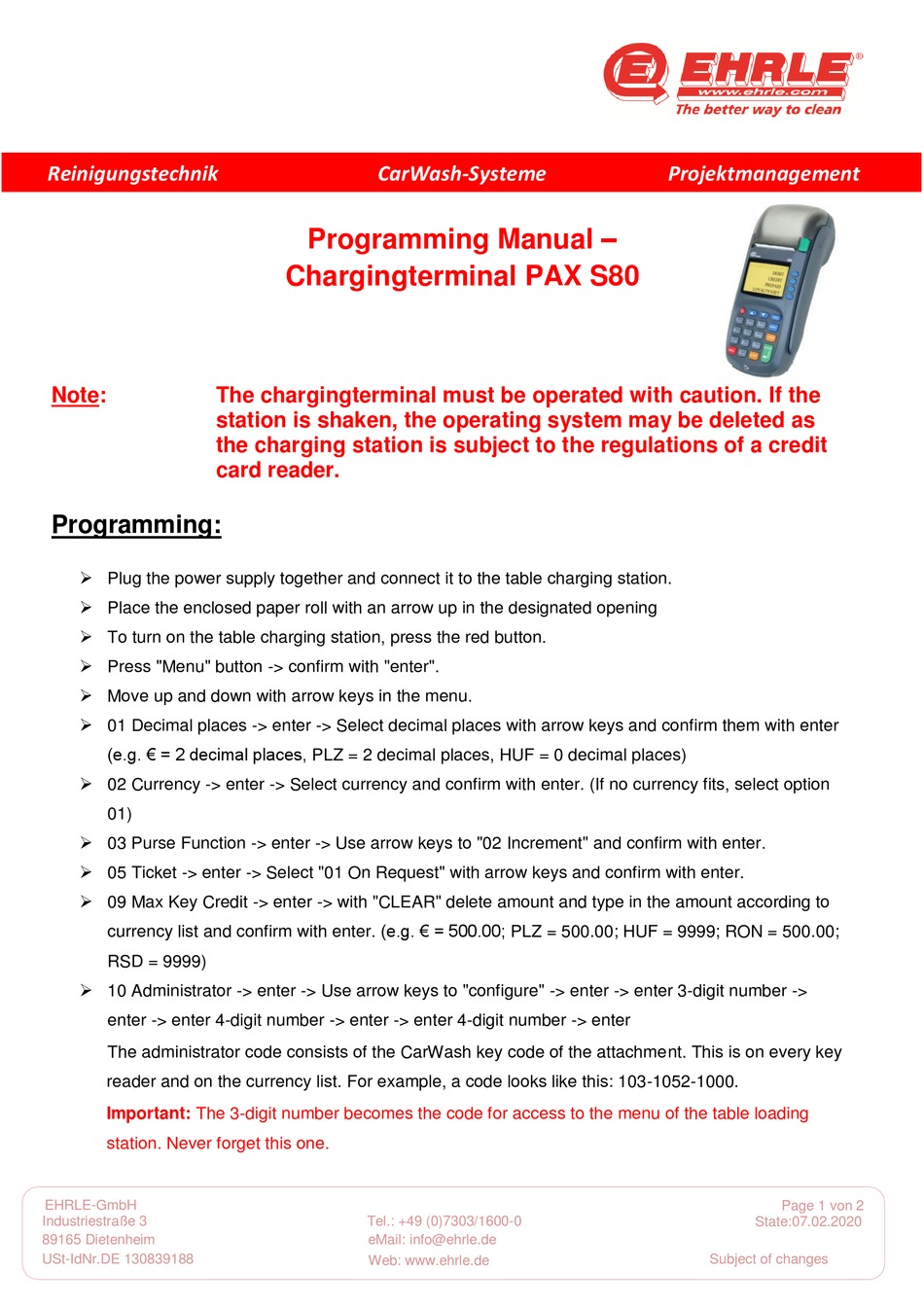

EHRLE PAX S80 Programming Manual

Reinigungstechnik
Note: The chargingterminal must be operated with caution. If the
station is shaken, the operating system may be deleted as
the charging station is subject to the regulations of a credit
card reader.

Programming:

 Plug the power supply together and connect it to the table charging station.
 Place the enclosed paper roll with an arrow up in the designated opening
 To turn on the table charging station, press the red button.
 Press "Menu" button -> confirm with "enter".
 Move up and down with arrow keys in the menu.
 01 Decimal places -> enter -> Select decimal places with arrow keys and confirm them with enter
(e.g. € = 2 decimal places, PLZ = 2 decimal places, HUF = 0 decimal places)
 02 Currency -> enter -> Select currency and confirm with enter. (If no currency fits, select option
01)
 03 Purse Function -> enter -> Use arrow keys to "02 Increment" and confirm with
 05 Ticket -> enter -> Select "01 On Request" with arrow keys and confirm with enter.
 09 Max Key Credit -> enter -> with "CLEAR" delete amount and type in the amount according to
currency list and confirm with enter. (e.g. € = 500.00; PLZ = 500.00; HUF = 9999; RON = 500.00;
RSD = 9999)
 10 Administrator -> enter -> Use arrow keys to "configure" -> enter -> enter 3-digit number ->
enter -> enter 4-digit number -> enter -> enter 4-digit number -> enter
The administrator code consists of the CarWash key code of the attachment. This is on every key
reader and on the currency list. For example, a code looks like this: 103-1052-1000.
Important: The 3-digit number becomes the code for access to the menu of the table loading
station. Never forget this one.
EHRLE-GmbH
Industriestraße 3
89165 Dietenheim
USt-IdNr.DE 130839188
CarWash-Systeme
Programming Manual –
Chargingterminal PAX S80
Tel.: +49 (0)7303/1600-0
eMail: info@ehrle.de
Web: www.ehrle.de
Projektmanagement
enter.
Page 1 von 2
State:07.02.2020
