Alula RE205 Quick Start Manual

Resolution Compatibles

The Temperature Sensor

overheat conditions. The sensor will alarm when the
temperature trip points are reached.

Features

• Indicates freeze and overheat warnings
• Industry-leading wireless range and battery life
• Secure encrypted wireless transmissions
• 5-year warranty

Enroll

by placing the panel into wireless enrollment mode
and then sending an enrollment signal from the sensor.

Options for sending an Enrollment Signal

• Remove the battery tab and cover to
trip tamper. Select desired Loop:
• Loop 1: Overheat
• Loop 2: Magnetic reed (magnet
not included)
• Loop 3: Freeze
• Loop 4: Tamper

Install

by mounting the sensor in the desired location
using two #4 or #6 screws. An optional cover-securing
screw is included. Alternatively, the sensor can also be
installed using 3M™ VHB™ tape.

Freeze or Heat alarms

temperature trip points are reached.

Temperature Trip Points

• Heat alarms when over 100°F (38°C)
• Heat restores when under 97°F (36°C)
• Freeze alarms when under 45°F (7°C)
• Freeze restores when over 48°F (9°C)

Pro Tips

3M™ VHB™ Tape works great if the surface is properly prepared and firm pressure is
applied for over 10 seconds.

Surface Preparation

• Clean the surface
• Ensure the mounting surface temperature is above 50°F
Use the panel installation guide to verify proper system setup.

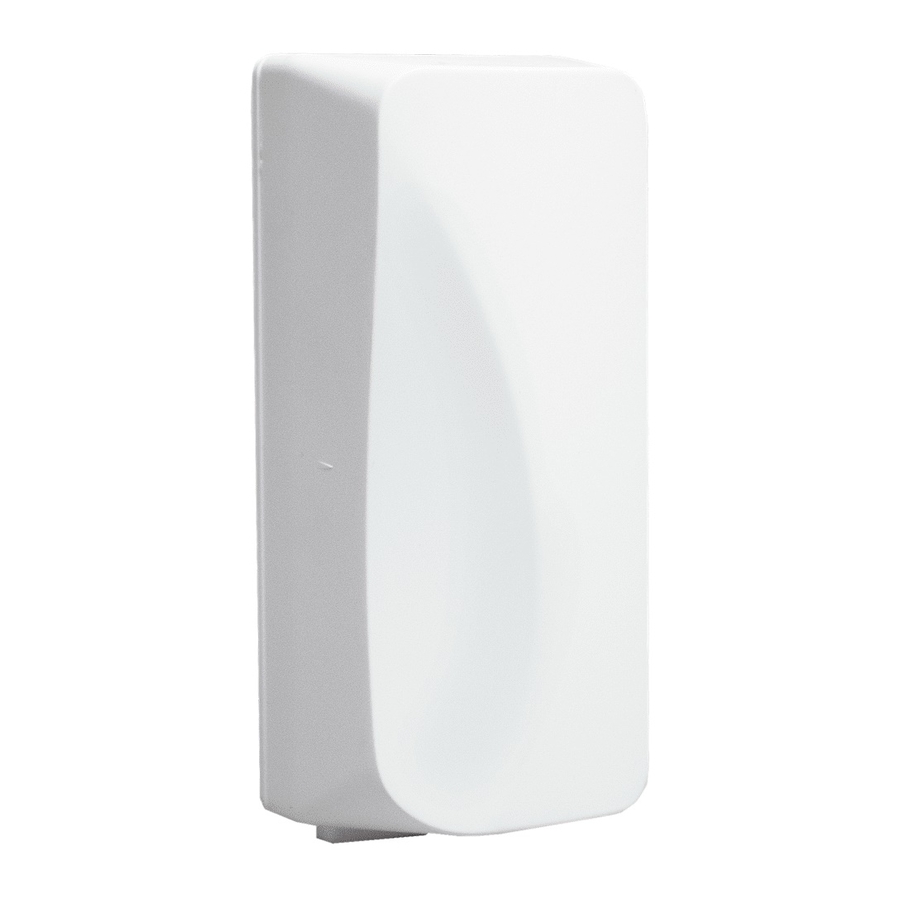

RE205 Temperature Sensor
Honeywell
is used to detect freeze and
are transmitted when the
Compatible
®
Mounting Screw Holes
Cover-Securing Screw Hole
I
