Recording Data with AutoSPY

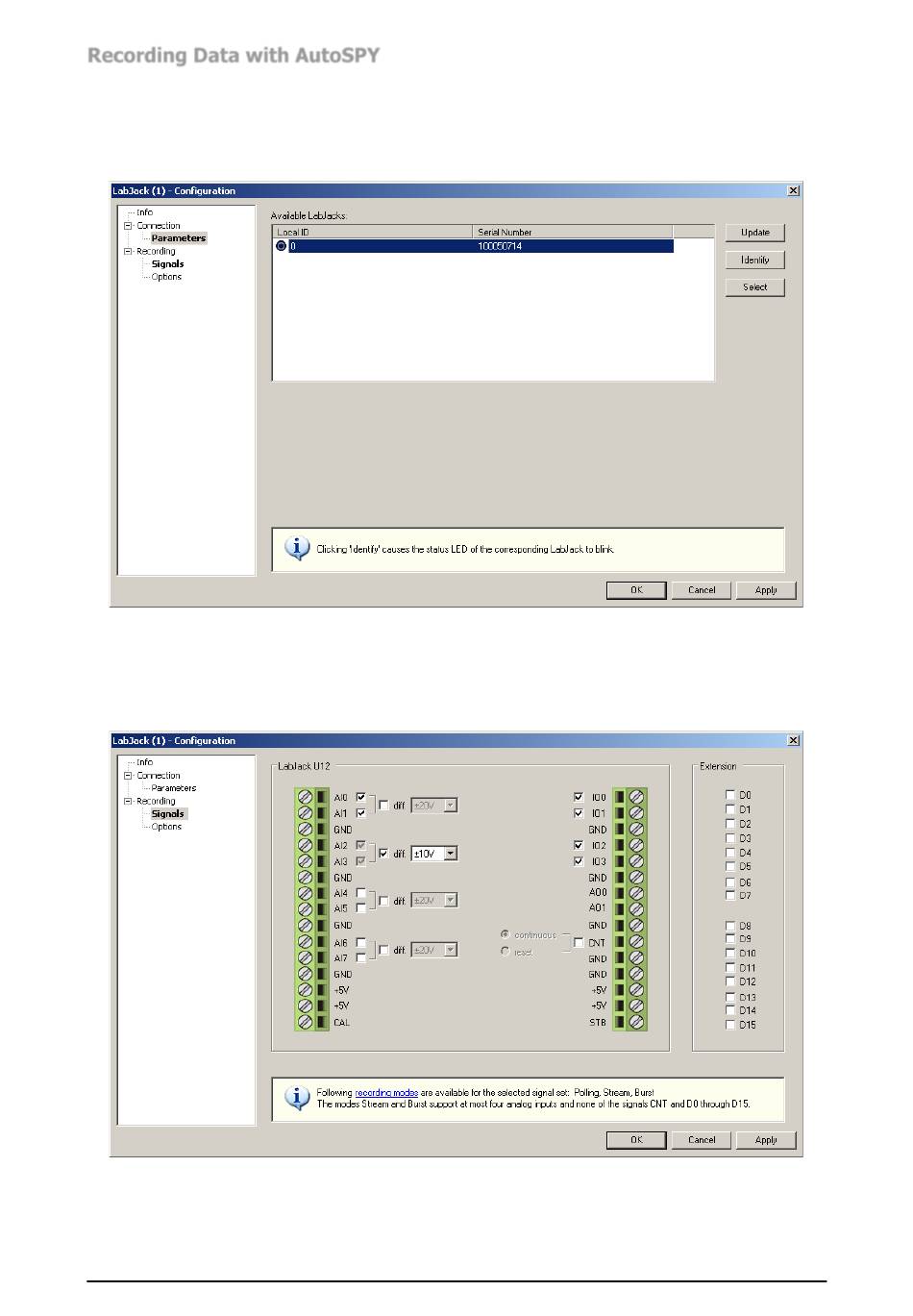

In order to record data from a LabJack in AutoSPY, a data source of that type must be inserted into the
document. Afterwards, the LabJack to be used for recording must be selected in the configuration
dialog of the newly created data source. The button "Identify" causes the status LED of the selected
LabJack to blink, which is useful when multiple LabJacks are attached to the same PC.
The tab "Signals" provides a graphical representation of the LabJack's screw terminals, where the
inputs to be recorded can intuitively be checked. Furthermore, the option "diff." enables differential
measurement for analog inputs, which additionally allows for specifying a voltage range (which trans-
lates into the appropriate gain, internally) for higher measurement resolution.
This is all mandatory configuration work that is required for simple use cases. You can now connect to
your LabJack and start recording.
