- Page 1 INSTALLATION, OPERATION & MAINTENANCE MANUAL Mist Blaster™ www.BlastOne.com...
-
Page 2: Manual Contents
MANUAL CONTENTS Safety Warnings Rules For Safe Operationa Description How the System Works How It Works System Set Up Operating Procedure Maintenance Fault Finding Diagrams Spare Parts & Accessories Fill in your model and serial number in the blank spaces below. These can be used for reference whenever service or maintenance is required. -
Page 3: Safety Warnings
SAFETY WARNINGS WARNING Read all recommended safe procedures before attempting to use this equipment. • Depressurize unit before loading media or before any maintenance is performed. • Do not use abrasives containing silica, lead, arsenic, copper, zinc or sharp glass particles - use of abrasives containing these elements could result in serious injury or death. -
Page 4: Warning Labels
SAFETY WARNINGS WARNING When the unit is operating: • DO NOT attempt to perform maintenance while the unit is under pressure or is even capable of being pressurized. This means, at a minimum, the inlet valve should be closed and ideally the air source be shut off or disconnected. Anytime the manual blow-down valve (if fitted) is closed it should be assumed the unit is under pressure. -
Page 5: Rules For Safe Operation
RULES FOR SAFE OPERATION • Know your equipment. Do not operate this equipment in a manner other than its intended application. Do not operate this equipment or any other equipment without following these “Rules For Safer Operation” and all operating procedures and instructions. Learn the applications and limitations as well as the specific potential hazards related to this machine. - Page 6 • Do not modify vessel. Do not modify or alter any abrasive blaster, blast equipment, or controls thereof without the written consent of BlastOne. Do not weld, grind or sand the pressure vessel. It will not be safe to operate. Non-authorized modifications could lead to serious injury or death.
- Page 7 • Use the provided kickstand when unit is stationary. Ensure that the kickstand is down and locked in place using provided pin whenever the Mist Blaster™ is not being moved. The kickstand can be locked in the up position using the same pin when the unit is to be moved.

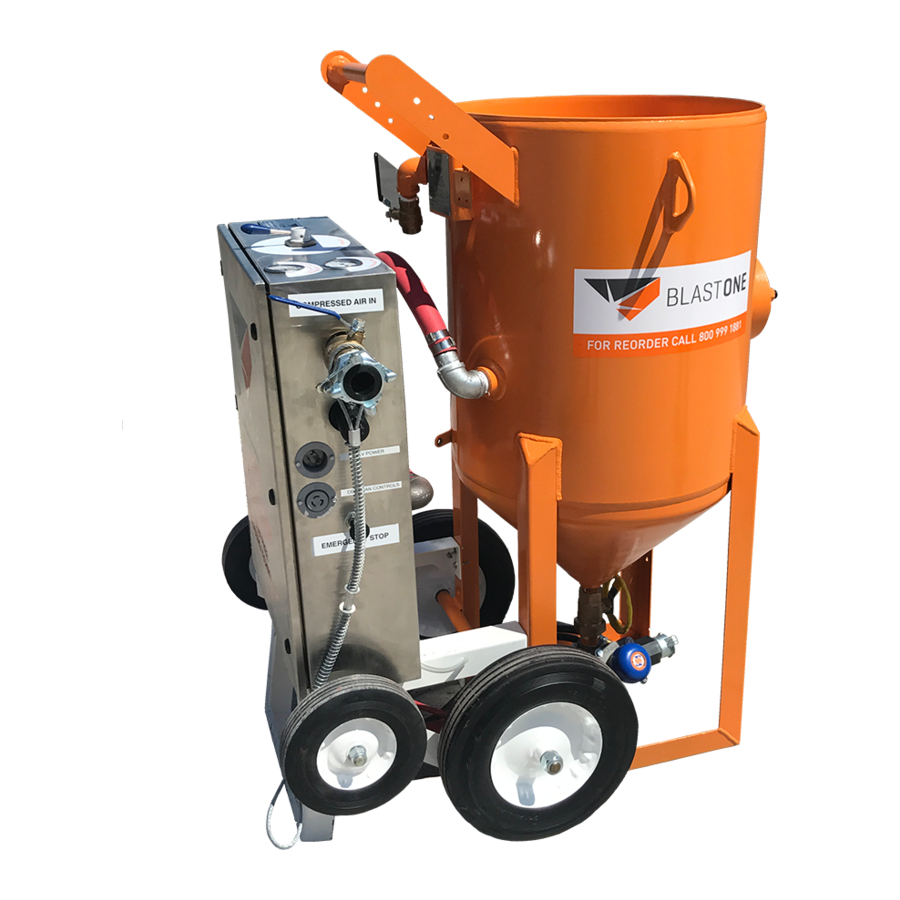

- Page 8 DESCRIPTION The Mist Blaster™ is a blast machine with a cabinet mounted on a standard blast pot to allow for mist blast, dry blast, and wash down functionality, consisting of the blast pot, an additional mounting frame, injection block, and associated connecting hose.
- Page 9 DESCRIPTION Air inlet connection Blast air pressure regulator Emergency Stop Button Deadman connection 3 pin twist lock plug 12 volt power in Blasting pressure and supply pressure 3 way switch Manual blow down exhaust valve Water pump pressure regulator...
-
Page 10: How The System Works
HOW THE SYSTEM WORKS With air supplied and with the manual exhaust (blow down) ball valve closed, the pot will be pressurized as soon as the inlet ball valve is opened. When the three-way switch is set to the dry blasting position, the dead-man handle is pressed, and the emergency stop has not been actuated, the auto air valve and Thompson valve are energized. -
Page 11: System Setup
SYSTEM SET UP Connect a water supply to the water inlet Connect the blasting hose to the outlet coupling on the water injection valve. A large whip check and safety clips MUST be used, as shown Connect air supply hose (minimum 2” I.D.) to the inlet connection (using a large whip check) and connect the 12 volt power supply and deadman cable... -
Page 12: Operation Checklist
5. Ensure adequate c.f.m. for chosen nozzle is suppled; refer to air consumption chart on page 15. 6. Ensure system is connected to a dry air supply, as moisture inside the blast pot leads to abrasive clumping; please consult a BlastOne sales representative for a moisture control solution. -
Page 13: Operating Procedure
IMPORTANT: When switching from dry or mist blast to wash down, there will still be abrasive in the blast line for a brief period of time. Always adhere to all safety protocol when operating the Mist Blaster™. To stop the process, release the deadman handle. Note that the pot will not depressurize; only the... -
Page 14: Proper Shut Down Procedure
When operating in near-freezing to freezing temperatures, it is vital that the necessary precautions are taken to prevent any water freezing in the pipes of the Mist Blaster™. To prevent such freezing, run windshield wiper fluid through the unit in place of water until only the windshield wiper fluid exits the unit. -
Page 15: Maintenance
MAINTENANCE AIR CONSUMPTION (C.F.M.) PER BLAST NOZZLE NOZZLE SIZE 60 p.s.i. 70 p.s.i. i. 80 p.s.i. 90 p.s.i. 100 psi 120 p.s.i. No. 2 1/8” No. 3 3/16” No. 4 ¼” No. 5 5/16” No. 6 3/8” No. 7 7/16” No. -
Page 16: Fault Finding
FAULT FINDING SYMPTOM POSSIBLE PROBLEM REMEDY The pot is empty Refill Thompson valve isolation ball valve is Open closed The abrasive in the pot is wet Try closing the choke valve until some (Moisture can enter in vapor form abrasive is pumped out. Operating with the compressed air - this is not the unit in the "choked"... - Page 17 FAULT FINDING SYMPTOM POSSIBLE PROBLEM REMEDY Undersized air compressor (see air Use a larger compressor or a smaller requirements chart) nozzle Air hose is too small The air hose diameter should be at least 3 times the nozzle diameter. Reduced Pressure Abrasive adjustment open too far Start off with no abrasive (fully closed) at the Nozzle...
- Page 18 DIAGRAMS THOMPSON VALVE ® 2152-006 1" Valve With Tungsten Carbide Sleeve 2152-106 1" Valve With Urethane Sleeve 2152-007 1 1/4" Valve With Tungsten Carbide Sleeve 2152-107 1 1/4" Valve With Urethane Sleeve 2152-008 1 1/2" Valve With Tungsten Carbide Sleeve 2152-108 1 1/2"...
- Page 19 DIAGRAMS AUTOMATIC AIR VALVE (NORMALLY CLOSED) 2123-106 1" Valve 2123-107 1 1/4" Valve 2123-109 2" valve 2123-108 1 1/2" Valve NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION 2123-006-99 Repair Kit 2123-009-99 Repair Kit 2123-006-01 Gasket 2123-007-99 Repair Kit 2123-009-01 Gasket 2123-006-02 Diaphragm...
-
Page 20: Control Valve
DIAGRAMS CONTROL VALVE 2229-100 Electric Control Valve, 12 Volt D.C. 2229-101 Electric Control Valve, 12 Volt A.C. 2229-102 Electric Control Valve, 24 Volt D.C. PART NO. DESCRIPTION 2229-100-99 Replacement Parts Kit (Electric) Not Available Air Operator Cap 2229-000-02 Plunger w/O-Rings Not Available Valve Body 2229-000-04... -
Page 21: Spare Parts And Accessories
SPARE PARTS & ACCESSORIES... - Page 22 30" X 24" X 8" - N1A SERIES AIR DISTRIBUTION MANIFOLD, AFAIRPIG4A BAN1AWESS-fab1 WALLMOUNT ENCLOSURE, 4-PORT STAINLESS STEEL FBP08 PLUG, BRASS, 1/2" MIST BLASTER PUMP 5:1 BRZ, FBP06 PLUG, BRASS, 3/8" BAMBPDL DRY LUBE BUSH, HEX REDUCING FBB0604 FBB0804 BUSH, HEX REDUCING, 1/2'' X 1/4'' 3/8""...
- Page 23 SPARE PARTS & ACCESSORIES 3-WAY SWITCH AIR FILTER BAMV4P6 APFAF0MP WATER PRESSURE PRESSURE GAUGE REGULATOR AFPRGUC200RE AFREGARG30 DEADMAN CONTROL VALVE WATER PUMP AFPRGUC200RE BAMBPDL BLAST AIR PRESSURE Do not disassemble. REGULATOR Repairs must be completed by factory/trained technician AFREG40 NEEDLE VALVE EMERGENCY STOP FPSSTH04 BMMBESTOP...
- Page 24 SPARE PARTS & ACCESSORIES Thompson II valve GV2152008 3-way switch BAMV4P6 Water pressure AFREGARG30 regulator Water pump BAMBPDL Needle valve FPSSTH04...
- Page 25 SPARE PARTS & ACCESSORIES Water filter housing APF158203 Water filter AFPEP5CBWF Air actuated valve DMAAVSR12 Humphrey valve DMPYT99919 Air filter APFAF0MP...
- Page 26 SPARE PARTS & ACCESSORIES Pressure gauge AFPRGUC200RE Deadman control valve DM2229100 Deadman handle DM2263402 Socket for deadman DMECK3002 Deadman control cable DMECKC2553 Blast air pressure regulator AFREG40...
- Page 27 SPARE PARTS & ACCESSORIES Emergency stop BMMBESTOP 3-slot female receptacle BA7162K77 3-slot male receptacle BA7162K8 Auto air valve DM2123108 Kickstand pin BATH...
- Page 28 NOTES...
- Page 29 BLASTONE INTERNATIONAL (AUST) PTY LTD BLASTONE INTERNATIONAL 57 Alexandra Place Murarrie 4510 Bridgeway Avenue Queensland 4172 Australia Columbus Ohio 43219 USA PO Box 3385 Tingalpa DC Toll Free 800 999 1881 Queensland 4172 Australia Tel (614) 476 3000 Fax (614) 476 3002 Toll Free 1800 190 190 Email sales@blastone.com...
