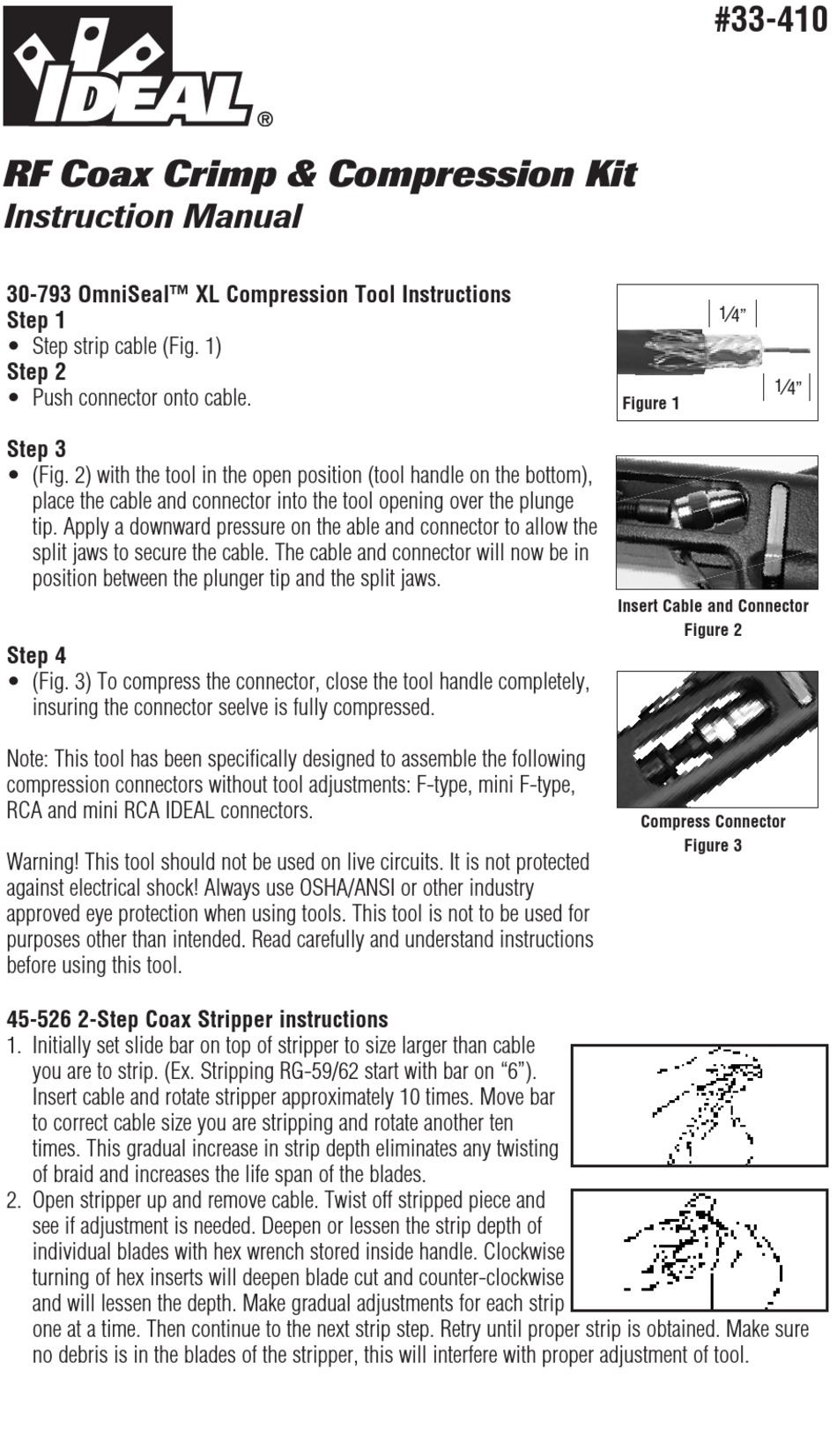

IDEAL 33-410 Instruction Manual

RF Coax Crimp & Compression Kit
Instruction Manual
30-793 OmniSeal™ XL Compression Tool Instructions
Step 1
• Step strip cable (Fig. 1)
Step 2
• Push connector onto cable.
Step 3
• (Fig. 2) with the tool in the open position (tool handle on the bottom),
place the cable and connector into the tool opening over the plunge
tip. Apply a downward pressure on the able and connector to allow the
split jaws to secure the cable. The cable and connector will now be in
position between the plunger tip and the split jaws.
Step 4
• (Fig. 3) To compress the connector, close the tool handle completely,
insuring the connector seelve is fully compressed.
Note: This tool has been specifically designed to assemble the following
compression connectors without tool adjustments: F-type, mini F-type,
RCA and mini RCA IDEAL connectors.
Warning! This tool should not be used on live circuits. It is not protected
against electrical shock! Always use OSHA/ANSI or other industry
approved eye protection when using tools. This tool is not to be used for
purposes other than intended. Read carefully and understand instructions
before using this tool.
45-526 2-Step Coax Stripper instructions
1. Initially set slide bar on top of stripper to size larger than cable
you are to strip. (Ex. Stripping RG-59/62 start with bar on "6").
Insert cable and rotate stripper approximately 10 times. Move bar
to correct cable size you are stripping and rotate another ten
times. This gradual increase in strip depth eliminates any twisting
of braid and increases the life span of the blades.
2. Open stripper up and remove cable. Twist off stripped piece and
see if adjustment is needed. Deepen or lessen the strip depth of
individual blades with hex wrench stored inside handle. Clockwise
turning of hex inserts will deepen blade cut and counter-clockwise
and will lessen the depth. Make gradual adjustments for each strip
one at a time. Then continue to the next strip step. Retry until proper strip is obtained. Make sure
no debris is in the blades of the stripper, this will interfere with proper adjustment of tool.
#33-410
⁄
1
4"
⁄
1
4
9
1
⁄
1
4
9
Figure 1
Insert Cable and Connector
Figure 2
Compress Connector
Figure 3
⁄
4"
