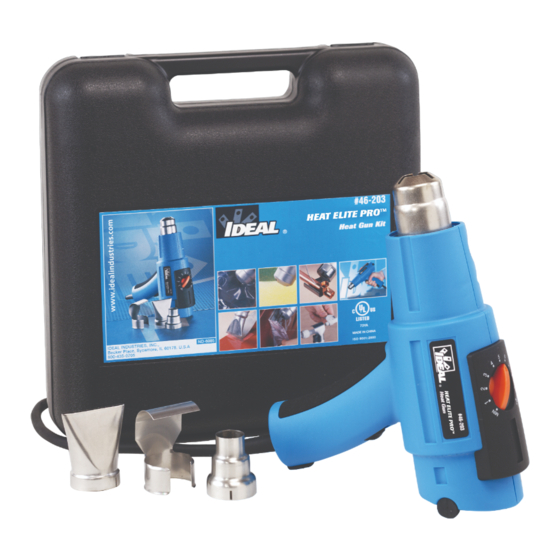

HEAT ELITE PRO™ Heat Gun
Operating Instructions

SAFETY INSTRUCTIONS

Danger! When working with hot-air tools it is vital to follow the following preventive safety guidelines to avoid the risk of fire,
explosion, electric shock and bodily injuries. Read these instructions attentively before you use the tool.
Keep these instructions in a safe place.
Warning
Danger! Unplug the tool before opening it, as live components and connections are exposed.
The appliance must not be used in damp or wet surroundings.
Avoid contact with earthed items, e.g. pipes, radiators, cookers or refrigerators.
Do not use in bathroom or over water.
Danger of fire and explosion through improper use of hot-air tools. Beware of poisonous gases, risk of
explosion and ignition. When plastics, lacquers and similar materials are being processed, toxic,
explosive and poisonous gases can be generated.
The working space must always be well ventilated.
Caution
• The voltage rating stated on the tool should correspond to the mains voltage.
• Avoid unexpected start-up. Temperature-limit-switch heating off in case of improper use. Attention! Heating is
automatically switched on again after cooling.
• Ensure that the switch is OFF when connecting to the mains supply.
• For personal protection, we strongly recommend the tool be connected to an RCCB (Residual Current Circuit Breaker)
before using.
• The tool must not be operated without supervision.
• Do not use the tool if inflammable gases may be present. Areas behind shutters, ceilings and floors and in hollow walls
may contain flammable material. These materials must be checked before using the hot-air tool. Heat may reach materials
which are not visible. Do not aim the stream of hot air at the same spot for extended periods.
• Cause burns! Do not touch the element housing, nozzle and adapter when hot as they can cause burns. Never use the
tool as a hair dryer. It gets much hotter than a hairdryer!
• Do not point the hot air flow in the direction of people or animals.
• Keep children at a distance. Do not allow other people to touch the tool or cord, keep them away from the work area.
• Consider work area environment. Protect tool from damp and wet conditions.
• Keep your work area clean. Cluttered areas and benches invite injuries.
• Do not wear loose or flammable clothing.
• Don't overreach. Keep proper footing and balance of all times.
• Use only accessories which are indicated in the instructions for use or are recommended by the manufacturer. The use of
Accessories other than those indicated in the instruction for use can mean risk of injury.

OPERATING REQUIREMENTS

• The tool must not be used lying flat nor permanently directed downwards.
• Ensure that the air inlet openings and the nozzle outlet are not obstructed, as this can lead to excessive heat build-up and
thus to damage to the tool.
• After use put the tool on its stand and allow it to cool down completely before packing it away.
#46-203

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEAT ELITE PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IDEAL HEAT ELITE PRO

  • Page 1 #46-203 HEAT ELITE PRO™ Heat Gun Operating Instructions SAFETY INSTRUCTIONS Danger! When working with hot-air tools it is vital to follow the following preventive safety guidelines to avoid the risk of fire, explosion, electric shock and bodily injuries. Read these instructions attentively before you use the tool.
  • Page 2 Storage of hot-air tools • Hot-air tools which are not in use should be stored in a dry enclosed place out of the reach of children. USES FOR HEAT ELITE PRO™ HEAT GUN Shrinking • Shrinking of shrink tubes for a variety of wiring insulation, sealing, strain relieve and mechanical protection •...
  • Page 3 Uses for HEAT ELITE PRO™ Heat Guns (cont.) Paint stripping • Stripping of all oil and lacquer, even in thick layers, from furniture and paneling, guttering, banisters and windows. Heat the layer of paint until blisters form, then remove cleanly with a paint knife, paint scraper or wire brush. For windows use glass- protecting nozzle.
  • Page 4 HEAT ELITE PRO™ OPERATING PRINCIPLES Connect tool to main supply. Step-switch position Tool is switched off Step-switch position Tool heats to 450°C. Air flow 380 I/min Step-switch position II : Tool heats to 550°C. Air flow 550 I/min Cooling down the tool...
  • Page 5 Each unit is warranted to be free from defects in materials and workmanship under normal use and service for a period of 12 months after the date of purchase. The obligations of IDEAL under this warranty shall be limited to repairing at the Sycamore, Illinois manufacturing facility any unit which shall, within the 12 month period, be returned to us with the transportation charges prepaid, and with our examination shall disclose to our satisfaction to have been defective.
