Summary of Contents for CruzPro WSD110

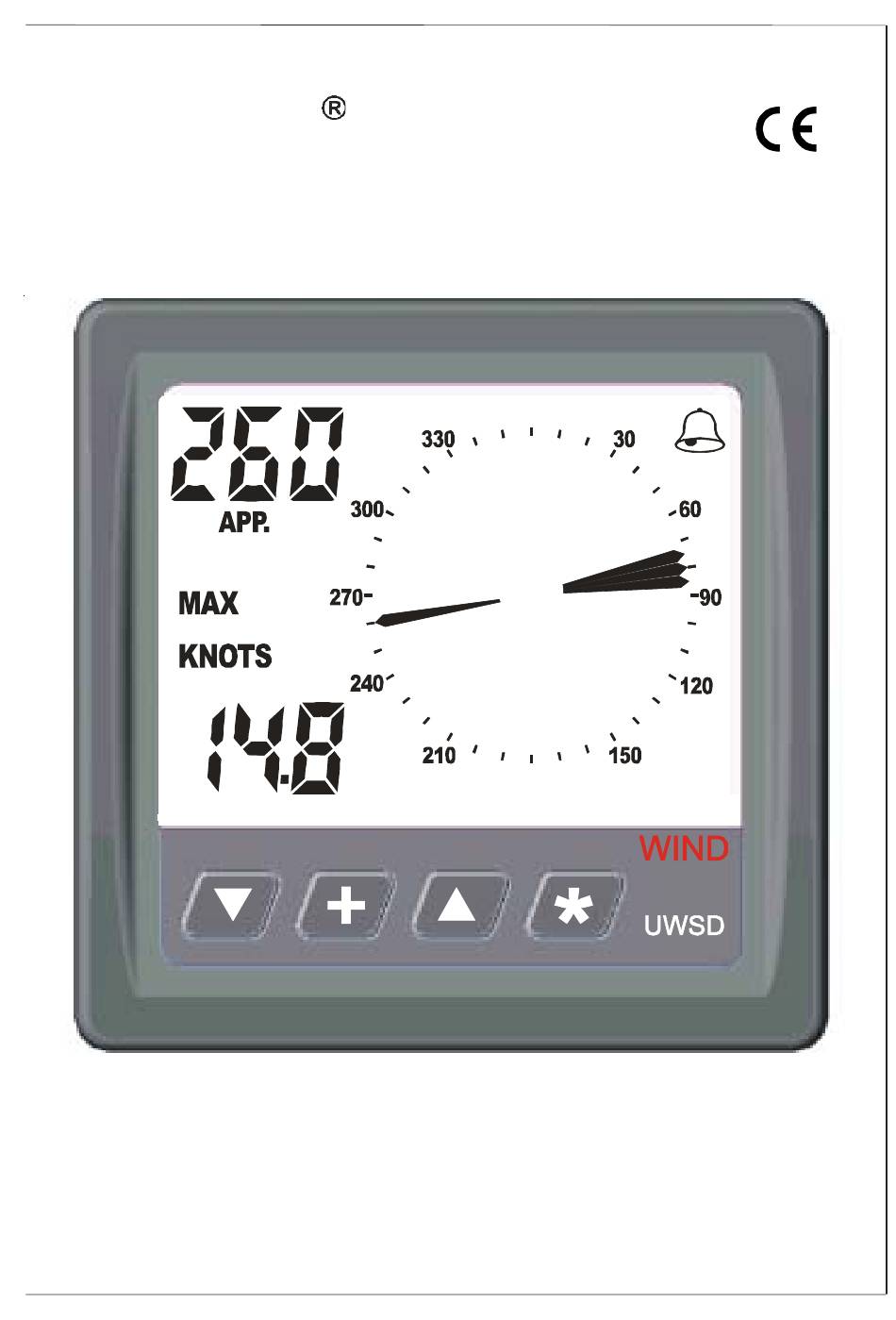

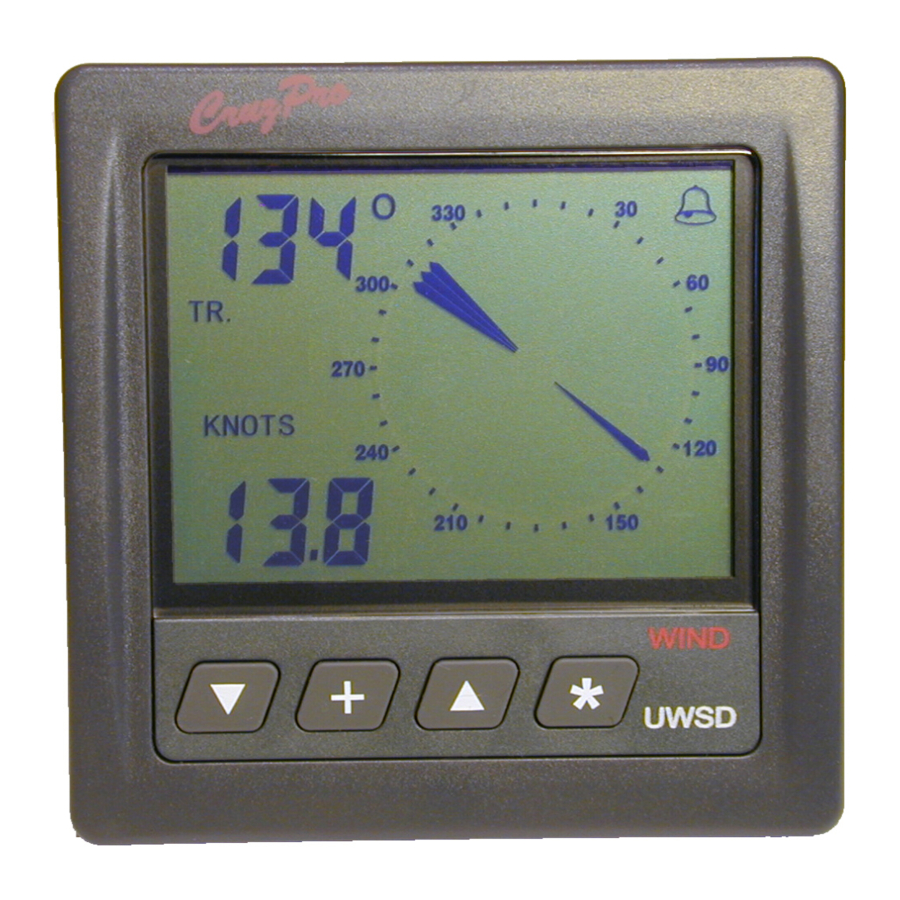

- Page 1 CruzPro WSD110 Wind Speed/Direction Display with Data Logging functions...
-
Page 2: Table Of Contents
Appendix B - Key Function Summary ... . 14 Other CruzPro Products ....16... -
Page 3: Introduction
The WSD110 outputs NMEA 0183 data of wind speed, direction and air temperature and works on both 12 and 24 VDC systems. The WSD110 with its large display draws only .025 amps and only .045 amps with full backlighting. Page 3... -
Page 4: Specifications
True Wind Speed/Direction: When boat speed is available from the $VHVHW or $GPRMC NMEA 0183 enabled sensor then the WSD110 can display True Wind Speed and True Wind Direction and VMG as well as Apparent Wind Speed/Direction. Resolution: 0.1 Knot, MPH, Km/H or M/S, 1 degree for direction and 1 deg F or C for temperature. -
Page 5: Installation
Installation Before starting the installation, please read this entire section first. Finger tighten the screws that mount the instrument bracket - It is not necessary or recommended to use tools. Drill a 2-1/8" (55mm) mounting hole where you desire to mount the instrument (Figure 1). - Page 6 WIND SENSOR Figure 2 Page 6...
-
Page 7: Operation
Operation Key Functions keys are used to select what to display, set backlight levels, calibrate wind speed, wind direction, air tem- perature, change constants and units of display. New informa- tion is automatically saved to non-volatile memory. Three different types of presses are recognized: A quick press, a press between 1/2 second and 2-1/2 seconds and a press longer than ten seconds. -
Page 8: Display Expanded Wind Direction Scale
Press the key to toggle between Apparent Wind and True Wind (if a NMEA 0183 speed input is connected to the WSD110 yellow wire). If Average Wind Speed is being displayed then True Wind Direction is also averaged. Press the key to display air temperature. -
Page 9: Calibrating Wind Speed
Calibrating Wind Speed To calibrate the displayed Wind Speed value, press and hold the key for ten seconds (until you hear a long beep) while viewing Apparent Wind Speed . The word “CAL” will be displayed. Use the keys to adjust the value to read correctly. Press key to save the new value to memory. -
Page 10: Display/Set Wind Speed/Direction Damping/Filter Value
Where sss.ss is Wind Speed in knots, ddd is Wind Direction in degrees and CS= NMEA 0183 checksum. The other NMEA 0183 data input to the WSD110 is on the yellow wire and is used to calculate True Wind Speed/Direc- tion. -
Page 11: Display/Set High Wind Speed Alarm Value
$ G P R M C , h h m m s s . s s , A , l l l l . l l , N / S , y y y y y . y y , E / W,ss.s,ccc.c,ddmmyy,mm.m,E/W,*CS from a GPS where ss.s is Boat Speed in knots. The WSD110 outputs Average Wind Speed, Average Wind Direction and Air Temperature on the white wire. following NMEA 0183 sentences are sent: $WIMWV,ddd,R,sss.s,N,A*CS... -
Page 12: Reset Maximum Wind Speed Memory
VMG data is logged to the non-volatile memory. To send the data, turn off the power to the WSD110. Connect the white wire from long cable #1 to the input connection of a RS232 serial port. Turn the power back on while holding the "... -
Page 13: Appendix A - Notes And Warnings
All calibration values, backlight levels, units of measure, maximum wind speed,logging data, etc. are saved to a nonvola- tile memory. If the power to the WSD110 is turned off and back on again the WSD110 will be set up exactly the same way as when it was turned off. -
Page 14: Appendix B - Key Function Summary
Appendix B - Key Function Summary Keys Secs Function Scroll through Wind Speed, Average Wind Speed and Maximum Wind Speed display. Scroll through displaying Wind Speed in Knots, MP/H, M/S and Km/H. Switch display between Apparent/True Wind Speed/Direction. Display Velocity Made Good (VMG) downwind and True Wind Direction. - Page 15 Notes Page 15...
-
Page 16: Other Cruzpro Products
Other CruzPro Products l 3D Ultrasonic Wind Speed/Direction Sensor l Depthsounders/w Keel Offset, Deep/Shallow/Anchor Drag Alarms l PC Based DSP Fishfinder for Windows98, XP, 2000, Vista, Win7 l Speed/Temperature/Logs l Digital DC Volts Gauge/w Alarms l Digital DC Volts Gauge/w Alarms for 3 Battery Banks...
