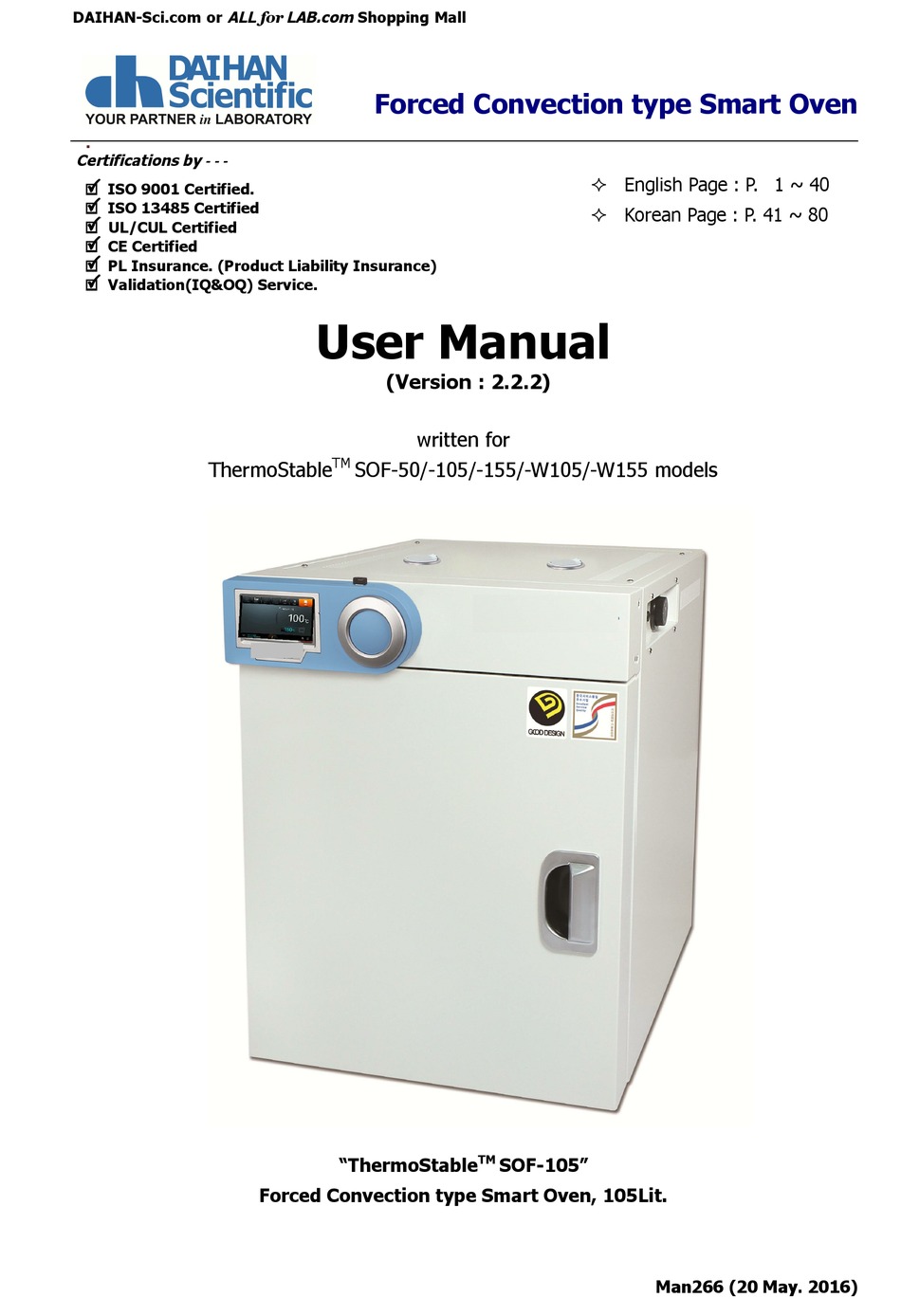

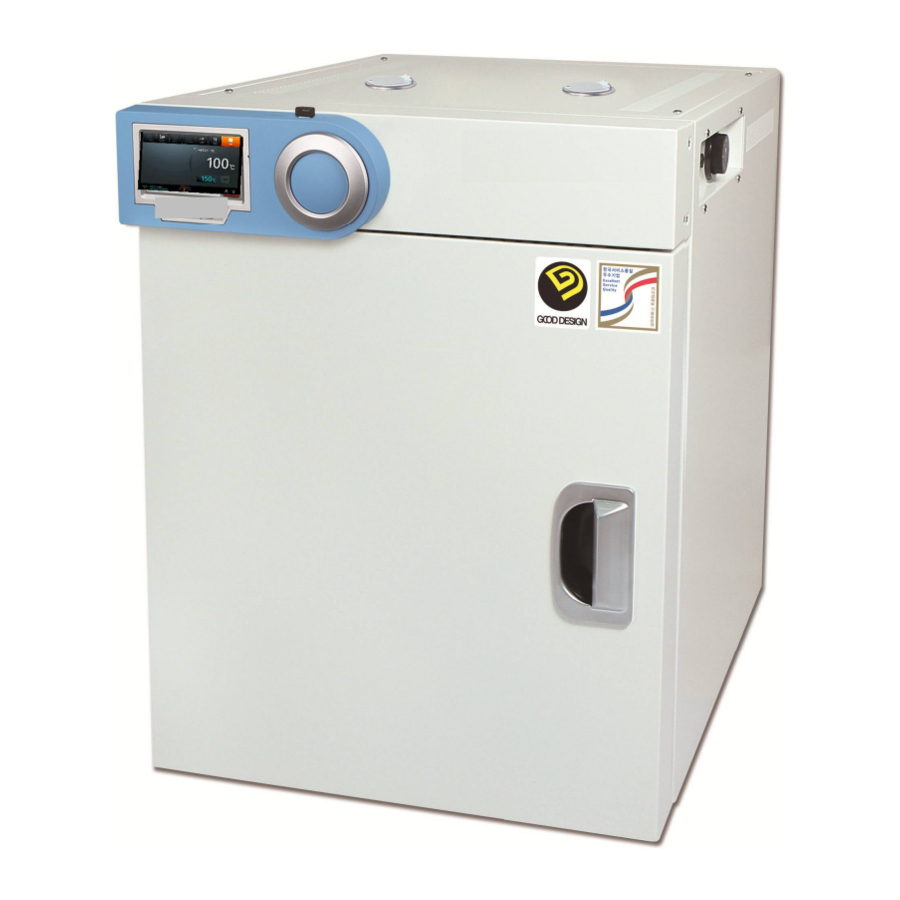

ThermoStable
Forced Convection type Smart Oven
User Manual
(Version : 2.2.2)
written for
TM
SOF-50/-105/-155/-W105/-W155 models
"ThermoStable
Forced Convection type Smart Oven, 105Lit.
 English Page : P. 11 ~ 40
 Korean Page : P. 41 ~ 80
TM
SOF-105"
Man266 (20 May. 2016)
