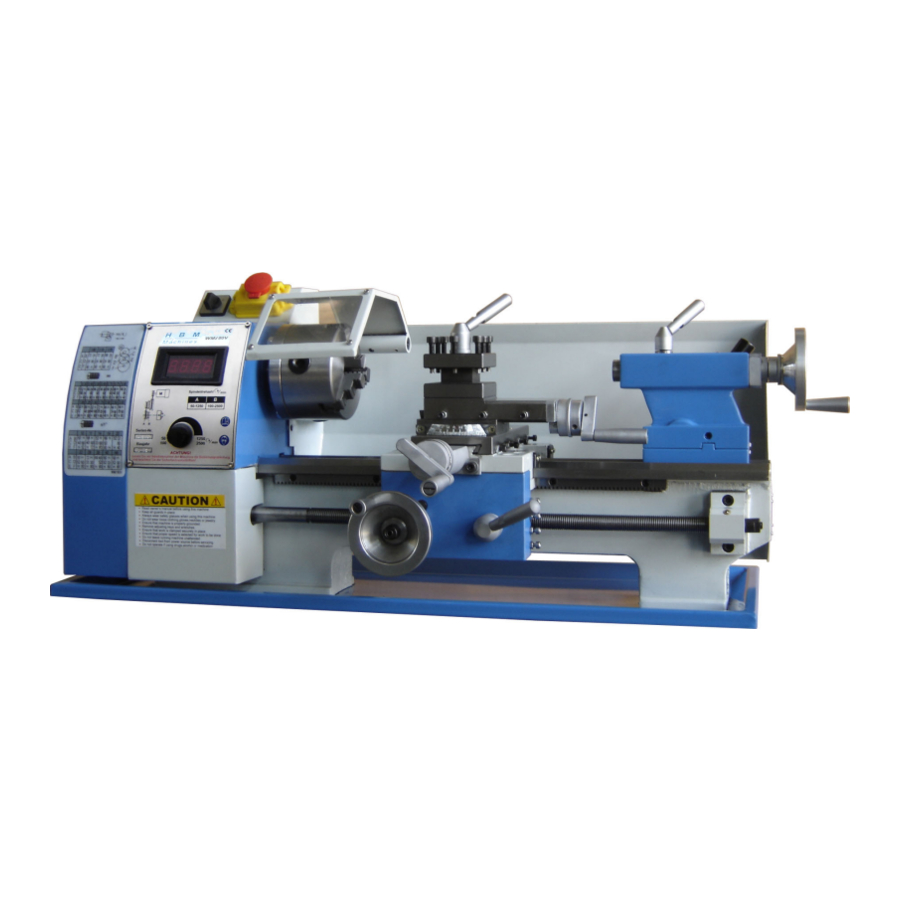

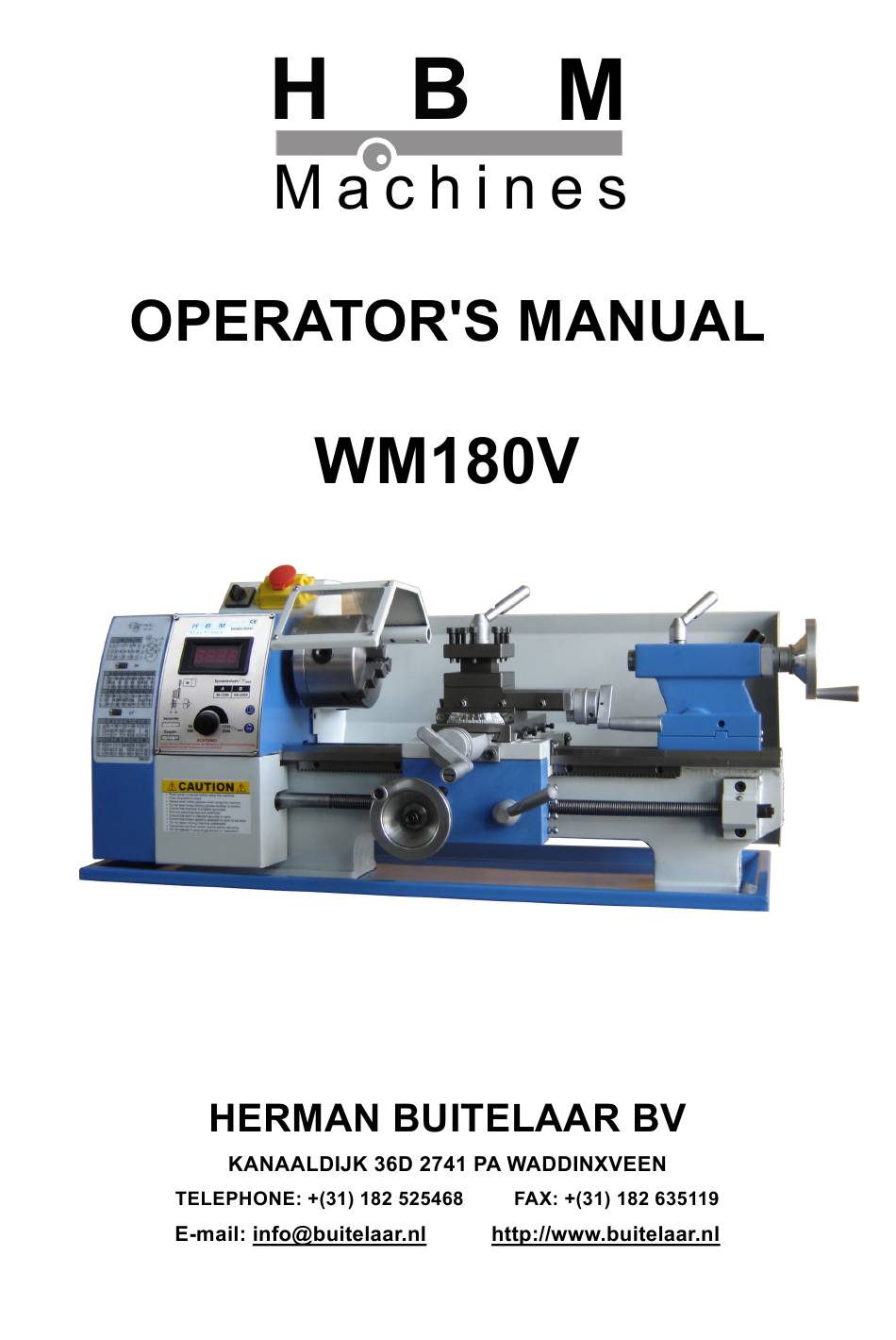

Summary of Contents for HBM Machines WM180V
-
Page 3: Limited Warranty
NOTE! This manual has been prepared for the owner and operators of a HBM lathe. Its purpose, aside from machine operation, is to promote safety through the use of accepted correct operating and maintenance procedures. Completely read the safety and maintenance instructions before operating or servicing the machine. -
Page 4: Safety Warnings
13. Keep children and visitors away. All visitors should be kept a safe distance from the work WARNING! area. Read and understand the entire instruction manual before attempting set-up or operation 14. Make the workshop child proof. Use padlocks, master switches, and remove of this machine! starter keys. -
Page 5: Specifications
SPECIFICATIONS: WM180V Capacities: Swing Over Bed 180mm Swing Over Cross Slide 110mm Distance Between Centers 300mm Width of Bed 100mm Headstock: Hole Through Spindle 21mm Taper in Spindle Nose Number of Spindle Speeds Variable 50-2500RPM Range of Spindle Speeds Feeding and Threading:... -
Page 6: Table Of Contents
TABLE OF CONTENTS LIMITED WARRANTY………………… …...…………..……………………………………. 1 SAFETY WARNINGS ………………………………………………………………………… 2 SPECIFICATIONS ……………………………………………………………………………. 3 TABLE OF CONTENTS …………….………………………………………………….…….. 4 CONTENTS OF SHIPPING CONTAINER ……………………………………..…………... 5 UNCRATING AND CLEAN-UP ……………………………………………………………… 6 FOUNDATION DRAWING ……………………………………………………………………. 6 GENERAL DESCRIPTION..…………………………………………………………………... 7 CONTROLS..…………………………….…………………………………………………….. 8 OPERATION …………………………………………………………………………………….10 LATHE ACCESSORIES………………………………………………………... - Page 14 THREAD AND FEED TABLE Fig. 20...
-
Page 22: Lubrication
MAINTENANCE Keep the maintenance of the machine tool during the operation to guarantee the accuracy and service life of the machine tool. 1. In order to retain the machine’s precision and functionality, it is essential to treat it with care, keep it clean and grease and lubricate it regularly. -
Page 23: Truble Solution
TROUBLESHOOTING Problem Possible Reason Elimination Surface of workpiece too Tool blunt Re-sharpen tool rough Tool springs Clamp tool with less overhang Feed too high Reduce feed Radius at the tool tip too small Increase radius Workpiece becomes coned Centers are not aligned (tailstock has Adjust tailstock to the center offset) Top slide not aligned well (cutting with... -
Page 24: Ec Declaration Of Confirmity
EC directives, as does the version marketed by us. Any modification carried out on the machine without our consent shall cause this declaration to be null and void. Herman Buitelaar BV Distributor: WM180V Name of machine: Bench Lathe Type of machine: Relevant EU directives:...
