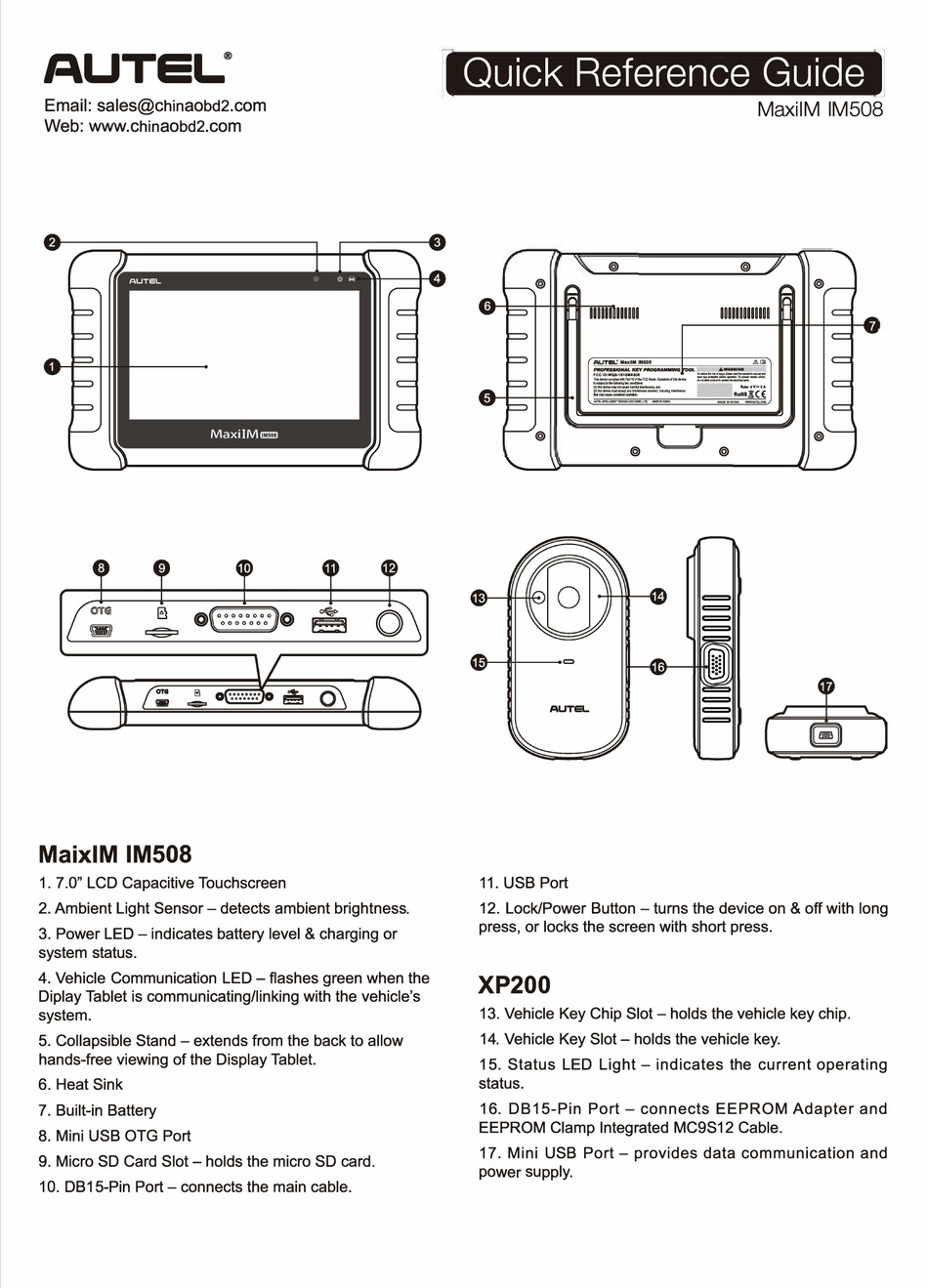

MaixlM IM508
1. 7 .O" LCD Capacitive Touchscreen
2. Ambient Light Sensor - detects ambient brightness.
3. Power LED - indicates battery level & charging or
system status.
4. Vehicle Communication LED - flashes green when the
Diplay Tablet is communicating/linking with the vehicle's
system.
5. Collapsible Stand - extends from the back to allow
hands-free viewing of the Display Tablet.
6. Heat Sink
7. Built-in Battery
8. Mini USB OTG Port
9. Micro SD Card Slot - holds the micro SD card.
10. DB 15-Pin Port - connects the main cable.
®
[ Quick Reference Guide J
@
@
11. USB Port
12. Lock/Power Button - turns the device on & off with long
press, or locks the screen with short press.
XP200
13. Vehicle Key Chip Slot - holds the vehicle key chip.
14. Vehicle Key Slot- holds the vehicle key.
15. Status LED Light - indicates the current operating
status.
16. D815-Pin Port - connects EEPROM Adapter and
EEPROM Clamp lnteg「ated MC9S12 Cable.
17. Mini USB Port - provides data communication and
pow er sup ply.
