Bloomfield HT-327AF Installation Instructions

ELECTRICAL
MODEL VOLTS WATTS
HT-327AF 208 3700
HT-327AF 240 5000

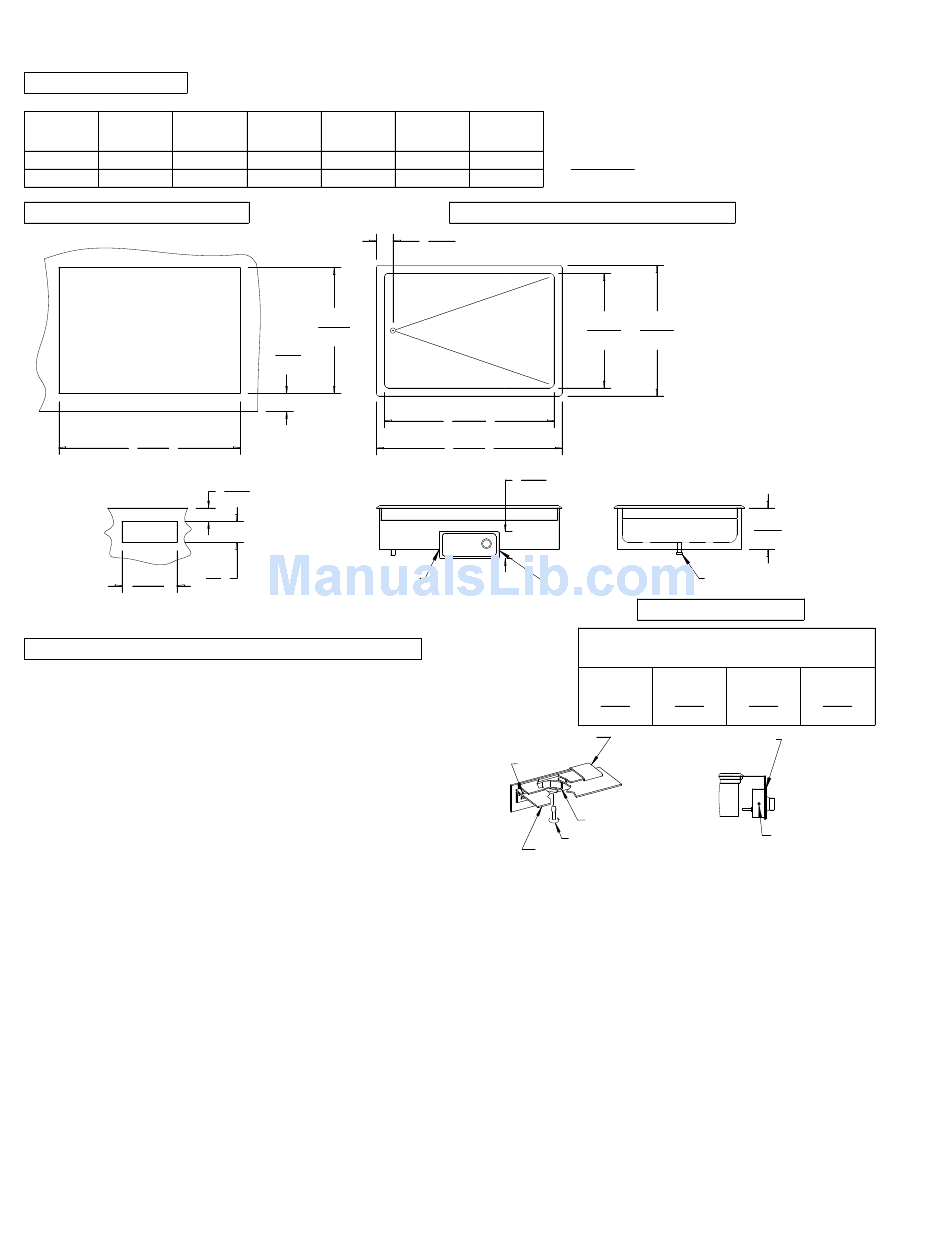

CUTOUT DETAILS
42 1/2
(1080)
12 7/8
(327)

INSTALLATION INSTRUCTIONS

INSTALLER MUST MEET CONDITIONS OF ACCEPTABILITY
OUTLINED BELOW UPON INSTALLATION:
1. Required installation clearances:
Wooden and Metal Installation: DO NOT install closer than
4 1/8 inches to front wall, 1 inch to back and side walls,
and 10 3/4 inches to surface below the unit.
2. Unit shall be accessible for servicing from the bottom.
3. If storage is to be used underneath the unit, it is
recommended that a baffle be placed 12 inches below
the unit to avoid contact with elevated temperatures.
4. For water and waste connections: This appliance is to be
installed to comply with the applicable federal, state or
local plumbing codes.
TO FABRICATE:
1. Lay out "cutout" dimensions on countertop and front
apron.
2. Lay out and fabricate control panel holes in counter
apron using the control box as a template.
3. Cut out holes.
TO INSTALL:
IMPORTANT - DO NOT disconnect lead wires from the
Master Control Panel when making installation.
1. Tilt and pass Control Panel and electrical box through
the countertop cutout, then through the apron cutout.
Lower modular section into countertop cutout and
position.
RECOMMENDATION: Before final seating of modular section
to countertop, apply a bead of silicone adhesive/sealant
to the underside of gasket supplied on the mounting
flange.
2. From underneath, insert screwdriver into slots in
Wellslock frame and twist ears outward (clockwise) as
required to secure flange tightly to countertop.
3. Mount Control Box to apron cutout as shown in drawing.
4. Mount Control Panel onto electrical box using the
screws supplied.
AMPS PHASE
17.9 SINGLE
20.6 SINGLE
29 1/2
(749)
4 1/8
(105)
3 1/8
(79)
5
1/4 NPT WATER
(127)
FILL CONNECTION
WELLS/BLOOMFIELD * VERDI, NV
DROP-IN BAIN MARIE STYLE HEATED TANK
FIELD
TEMP.
WIRING
RATING
GAUGE
10 AWB Cu 90°C
INCHES
10 AWB Cu 90°C (MM)
PRODUCT DIMENSIONS
3 7/8
(98)
39 3/4
(1010)
43 1/2
(1105)
6 1/4
(159)
CONTROL PANEL WITH
FLEXIBLE CONDUIT
WARMER FLANGE
GASKET
WELLSLOK
SCREWDRIVER
COUNTERTOP
TO PLUMB:
1. A drain with valve is supplied on all units. Location of the
valve handle is at the discretion of the fabricator (see drawing).
2. Connect 1" drain connection to a suitable drain line.
3. Connect 1/4 NPT flexible water fill line to solenoid valve in
outlet box, maximum pressure 120 PSI, maximum temperature 120∞F.
TO WIRE:
1. Final connection is accomplished by bringing proper power
supply leads (see 'WIRING REQUIREMENTS' label) through
conduit knockout to terminal block supplied within the Master
Control Panel. Check nameplates for voltage and phase.
NOTES:
BAIN MARIE STYLE HEATED TANKS ARE DESIGNED FOR WET
OPERATION ONLY.
A BACK FLOW PREVENTER IS INCORPORATED IN THE WATER FILL
LINE BETWEEN SOLENOID VALVE AND PAN. LOCAL CODES MAY
REQUIRE AN ADDITIONAL VACUUM BREAK DEVICE, NOT PROVIDED
BY WELLS.
THIS EQUIPMENT IS TO BE INSTALLED TO COMPLY WITH
APPLICABLE FEDERAL, STATE OR LOCAL PLUMBING AND
ELECTRICAL CODES.
INSTALLATION INSTRUCTIONS
MODEL HT-327AF WITH AUT0-WATER FILL
26 7/8 30 5/8
(683) (778)
9 3/4
(248)
1 INCH NPT DRAIN
WITH BALL VALVE
CLEARANCES
MINIMUM CLEARANCE REQUIRED
FROM UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM
1 1 10 3/4
(25) (25) (273)
MASTER CONTROL PANEL
303753-2 REV (-)
FRONT
4 1/8
(105)
1/4 NPT WATER
FILL CONNECTION
