This item is designed to be a 3-in-1 configuration. Please choose the option that best suits your needs. DO NOT
discard any of the hardware or parts that you will not use on your chosen option. This will allow you to use this
TV Console in different configurations at a later date, if desired.
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store
where it was purchased. Please call our customer service number and have your instructions and parts list
ready to provide the model name, part name or factory number:
Or visit our website 24 hours a day, 7 days a week for product assistance at www.whalenfurniture.com
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Belmont 3-in-1 TV Stand
Model # BJXLZEC44-GB
U.S. Patent 8,561,551
ADULT ASSEMBLY REQUIRED
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2019-06-17
TV
1-866-942-5362
Rev. 0001-B
LOT NUMBER:
DATE PURCHASED: /
TV
/
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Whalen Belmont
Summary of Contents for Whalen Belmont

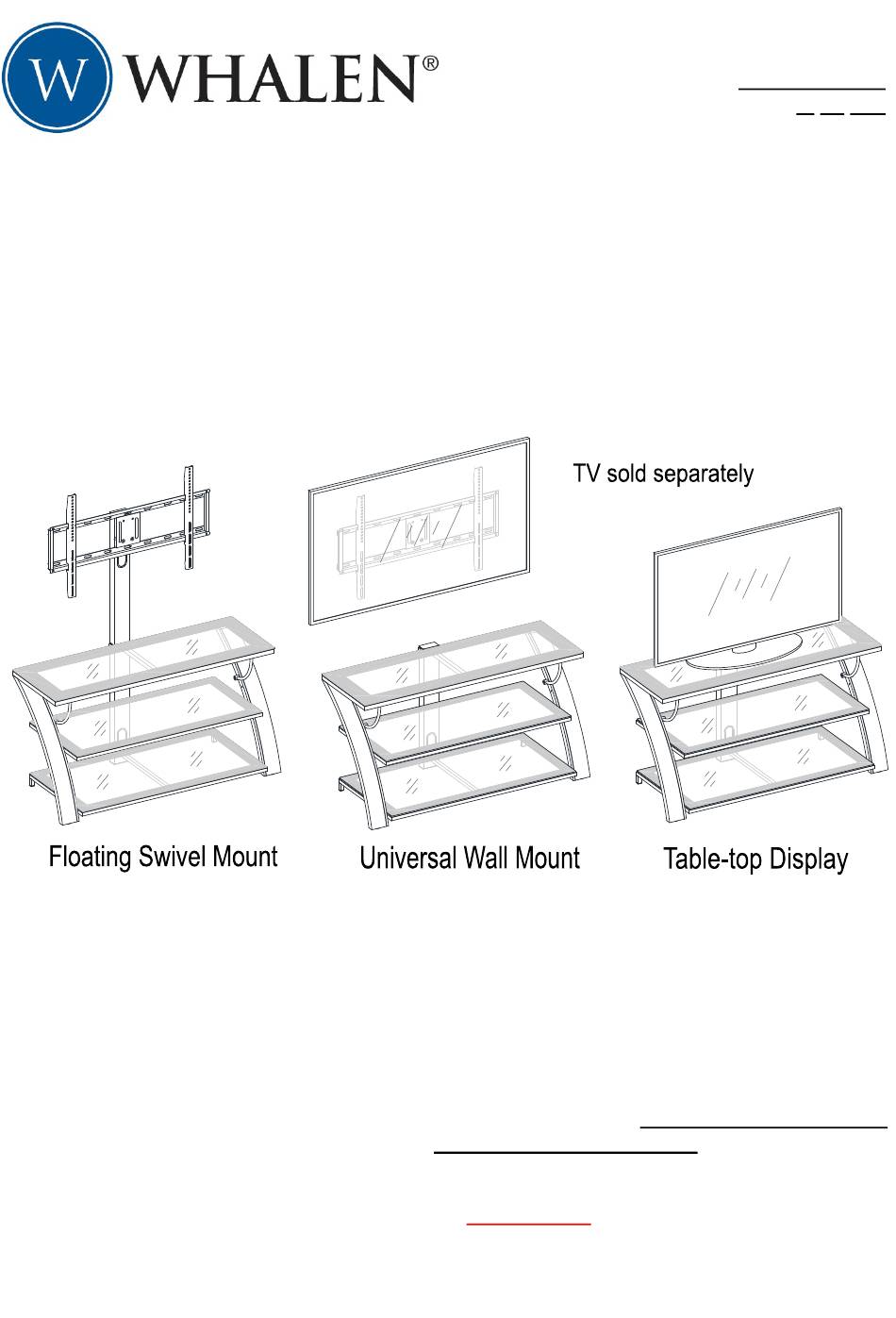

- Page 1 LOT NUMBER: DATE PURCHASED: / Belmont 3-in-1 TV Stand Model # BJXLZEC44-GB U.S. Patent 8,561,551 This item is designed to be a 3-in-1 configuration. Please choose the option that best suits your needs. DO NOT discard any of the hardware or parts that you will not use on your chosen option. This will allow you to use this TV Console in different configurations at a later date, if desired.
- Page 2 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Belmont 3-in-1 TV Stand MODEL # BJXLZEC44-GB MADE IN VIETNAM FITS UP TO MOST 54”...
- Page 3 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Top Shelf Frame (Qty. 1) B- Middle Shelf Frame (Qty. 1) C- Bottom Shelf Frame (Qty. 1) D- Lower Spine (Qty.
- Page 4 Parts and Hardware List (1) Suction Cup (2) 1/2” Bolt (3) 3/4” Bolt (4) 7/8” Bolt (Qty. 18+1 extra) (Qty. 6+1 extra) (Qty. 20+1 extra) (Qty. 8+1 extra) (5) Lock Washer (6) Flat Washer (7) 3-1/8” Bolt (8) Flange Nut (Qty.
- Page 5 Assembly Instructions ④ x 4 NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. 1. Unpack the unit and confirm that you have all the hardware and required parts. 2.
- Page 6 Assembly Instructions ④ x 4 4. Align and attach the Left Leg (F) to the Lower Shelf Frames (B and C) by inserting two 7/8” Bolts (4) from inside the Shelf Frames through the pre-drilled holes on side rail and screw into the threaded sockets on the Leg.
- Page 7 Assembly Instructions ⑤ x 4 ⑥ x 4 ③ x 4 6. Stand the unit upright. 7. Align and attach the Top Shelf Frame (A) to the Legs (F and G) with the inside corner plates facing up, using four 3/4” Bolts (3) with the Washers (5 and 6) through the end bracket holes of the Legs (F and G) and screw into the back sockets of Top Shelf Frame.
- Page 8 Assembly Instructions ⑨ x 2 ② x 2 ⑤ x 2 ⑥ x 2 8. Align and attach one Top Shelf Support (K) to the “L” bracket of the Top Shelf Frame (A) using one 1/2” Bolt (2) with the Washers (5 and 6). Secure the Top Shelf Support (K) to the Left Leg (F) with the provided 1-1/8”...
- Page 9 Assembly Instructions for Table-top Console ⑦ ⑤ x 1 ⑥ x 1 ⑧ 11. Plug the Spine End Cap (13) all the way into the top of the Lower Spine (D). 12. Secure the Top Shelf Frame (A) to the Lower Spine (D) by inserting one 3-1/8” Bolt (7) with the Washers (5 and 6) through the bracket hole and securely screw into the Flange Nut (8).
- Page 10 Assembly Instructions for Table-top Console ③ x 4 13. Attach 2 Cable Wheels (O) to the backside of the Lower Spine (D) with the 3/4” Bolts (3). Tighten the bolts with the provided hex wrench. 14. The Cable Wheels (O) enable you to shorten, separate and route cables and cords. Using the Cable Wheels, you can create a system for routing cables through channels, between components and to power sources without tangled mess or annoying signal interference.
- Page 11 Assembly Instructions for Table-top Console H/ I /J A/B/C ① x 18 15. Put the Suction Cups (1) firmly into top holes and metal tabs on 3 Shelf Frames (A, B and C), as shown. TIP: If a Suction Cup resists insertion, try pressing down on the middle of the cup with the hex wrench while twisting it clockwise into the hole.
- Page 12 Assembly Instructions for Table-top Console Tools required: Hex wrench (provided), Phillips screwdriver, stud finder, measure tape, pencil, power drill, and 1/8” drill Bit (not provided). 17. Position the assembled console at the desired location against a wall. In case of uneven floor, Floor Levelers are provided at the bottom of both Legs (F and G).
- Page 13 A s s e m b l y I n s t r u c t i o n s f o r F l o a t i n g S w i v e l M o u n t ③...
- Page 14 Assembly Instructions for Floating Swivel Mount ③ x 6 ⑤ x 6 ⑥ x 6 21. Fasten the Swiveling Bracket (L) to the top of the Upper Spine (E) with six 3/4” Bolts (3) and the Washers (5 and 6). Turn the Swiveling Bracket against the Upper Spine (E) when tightening the bolts with the enclosed hex wrench.
- Page 15 Assembly Instructions for Floating Swivel Mount BACK ⑤ x 4 ② x 4 ⑥ x 4 22. Hold and attach the flat side of the Mounting Frame (M) onto the Swiveling Bracket (L) using four 1/2” Bolts (2) and four Washers (5 and 6). Make sure that the recess holes on the Mounting Frame are located at the bottom.
- Page 16 Mounting Monitor Brackets to a Television with a Flat Back NOTE: For televisions with a curved or recessed back, proceed directly to next page. 23. Determine the correct diameter of the bolt the TV requires by hand threading them into the threaded insert on the back of the TV.
- Page 17 Mounting Monitor Brackets to a Television with a Curved/Recess Back 25. Determine the correct diameter of the bolt the TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If you are unable to find the correct bolt consult a local hardware store.
- Page 18 Assembly Instructions for Floating Swivel Mount MAKE SURE ALL BOLTS ARE TIGHT AND THE SPINE IS AT A 90 DEGREE ANGLE AND USE A QUALITY LEVEL TO VERIFY THE MOUNTING FRAME IS LEVEL PRIOR TO INSTALLATION OF TV. 27. Once the Monitor Brackets (N) are attached onto the back of television, ask for assistance to lift the television up to hang the Monitor Brackets (N) onto the Mounting Frame (M).
- Page 19 Assembly Instructions for Floating Swivel Mount 29. Copy step 13 to attach the Cable Wheels (O) to the backside of the spine assembly. H/ I /J A/B/C 30. Repeat steps 15 through 16 to install the Top Glass (H) and Glass Shelves (I and J) in place.
- Page 20 Assembly Instructions for Floating Swivel Mount Tools required: Hex wrench (provided), Phillips screwdriver, stud finder, measure tape, pencil, power drill, and 1/8” drill Bit (not provided). 31. Carefully move the console and position in your desired location against a wall. Now follow the instructions printed on the plastic bag containing Tipping Restraint Hardware Kit to attach the tip-over restraint to the Upper Spine (E) and the wall.
- Page 21 The following steps are only for those who wish to mount their TV directly to the wall. If you have already mounted your TV to the Swinging Floater or plan to display your TV on the top surface of the stand, disregard the following steps. Assembly Instructions for Universal Wall Mount Installing the Mounting Frame onto a WOODEN STUD WALL 407 mm...
- Page 22 Assembly Instruction for installing the Mounting Frame onto a BRICK, SOLID CONCRETE OR CONCRETE BLOCK WALL 407 mm 16 in / po 166 mm 6.5 in / po 63.5 mm 2.5 in / po Maximum weight 61.2 kg /135 lb Concrete Anchors should only be used for masonry mounting.
- Page 23 Assembly Instructions 39. Attach the Monitor Brackets (N) to the back of the television following steps 23 and 24, or 25 and 26, depending on the type of TV that you own. 40. Ask for assistance to lift the television up to attach the Monitor Brackets (N) onto the Mounting Frame (M).
-
