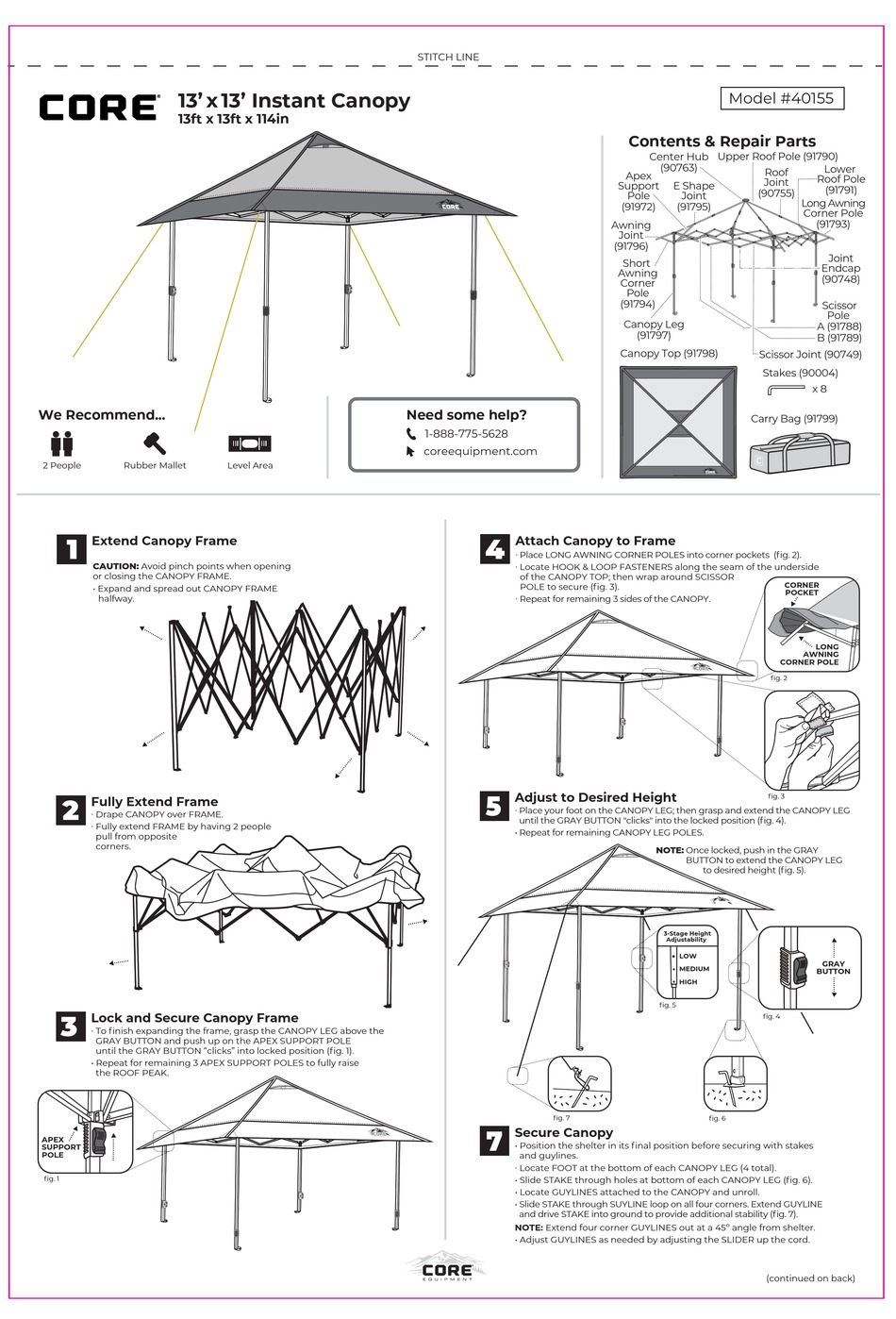

Core 40155 Quick Start Manual

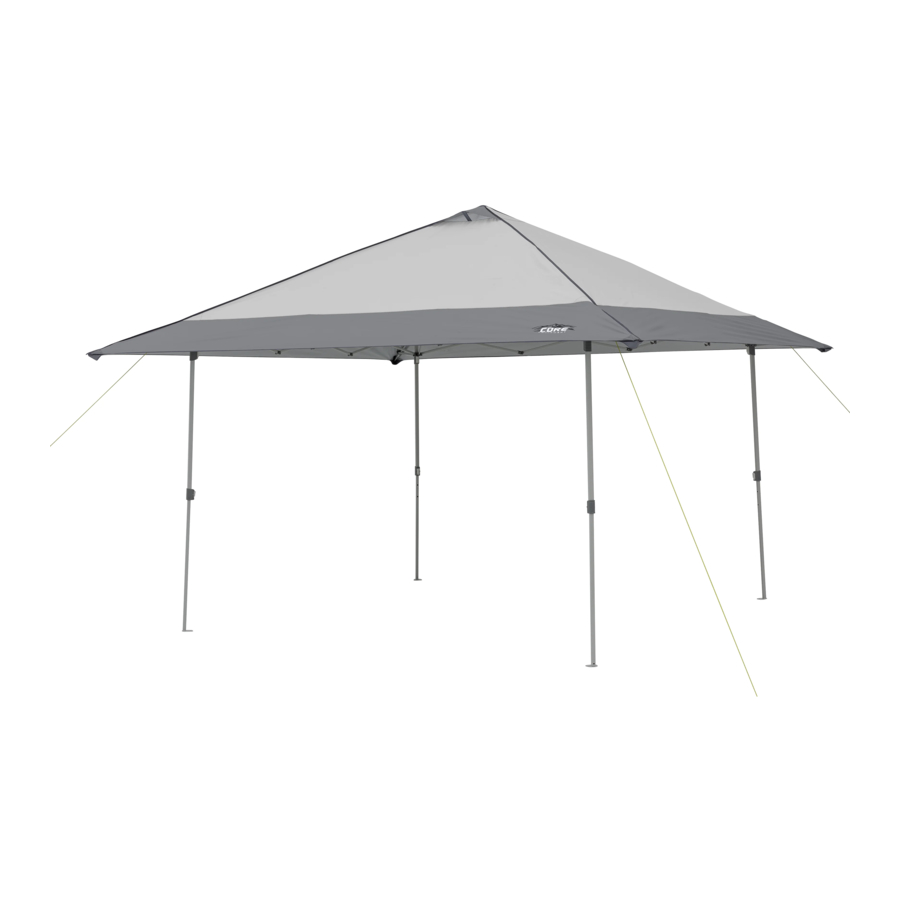

13' x 13' Instant Canopy
13ft x 13ft x 114in
We Recommend...
2 People Rubber Mallet
1

Extend Canopy Frame

CAUTION: Avoid pinch points when opening
or closing the CANOPY FRAME.
• Expand and spread out CANOPY FRAME
halfway.
2

Fully Extend Frame

Drape CANOPY over FRAME.
Fully extend FRAME by having 2 people
pull from opposite
corners.
3

Lock and Secure Canopy Frame

To finish expanding the frame, grasp the CANOPY LEG above the
GRAY BUTTON and push up on the APEX SUPPORT POLE
until the GRAY BUTTON "clicks" into locked position (fig. 1).
• Repeat for remaining 3 APEX SUPPORT POLES to fully raise
the ROOF PEAK.
APEX
SUPPORT
POLE
fig. 1
Level Area
STITCH LINE
Need some help?
1-888-775-5628
coreequipment.com
4

Attach Canopy to Frame

Place LONG AWNING CORNER POLES into corner pockets (fig. 2).
Locate HOOK & LOOP FASTENERS along the seam of the underside
of the CANOPY TOP; then wrap around SCISSOR
POLE to secure (fig. 3).
Repeat for remaining 3 sides of the CANOPY.
5

Adjust to Desired Height

Place your foot on the CANOPY LEG; then grasp and extend the CANOPY LEG
until the GRAY BUTTON "clicks" into the locked position (fig. 4).
• Repeat for remaining CANOPY LEG POLES.
fig. 7
7

Secure Canopy

• Position the shelter in its final position before securing with stakes
and guylines.
Locate FOOT at the bottom of each CANOPY LEG (4 total).
• Slide STAKE through holes at bottom of each CANOPY LEG (fig. 6).
• Locate GUYLINES attached to the CANOPY and unroll.
• Slide STAKE through SUYLINE loop on all four corners. Extend GUYLINE
and drive STAKE into ground to provide additional stability (fig. 7).
NOTE: Extend four corner GUYLINES out at a 45º angle from shelter.
• Adjust GUYLINES as needed by adjusting the SLIDER up the cord.
Model #40155
Contents & Repair Parts
Center Hub Upper Roof Pole (91790)
(90763)
Roof
Apex
Joint
Support E Shape
(90755)
Pole Joint
(91972) (91795)
Awning
Joint
(91796)
Short
Awning
Corner
Pole
(91794)
Canopy Leg
(91797)
Canopy Top (91798)
Scissor Joint (90749)
Stakes (90004)
Carry Bag (91799)
CORNER POLE
fig. 2
fig. 3
NOTE: Once locked, push in the GRAY
BUTTON to extend the CANOPY LEG
to desired height (fig. 5).
3-Stage Height
Adjustability
LOW
MEDIUM
HIGH
fig. 5
fig. 4
fig. 6
(continued on back)
Lower
Roof Pole
(91791)
Long Awning
Corner Pole
(91793)
Joint
Endcap
(90748)
Scissor
Pole
A (91788)
B (91789)
x 8
CORNER
POCKET
LONG
AWNING
GRAY
BUTTON
