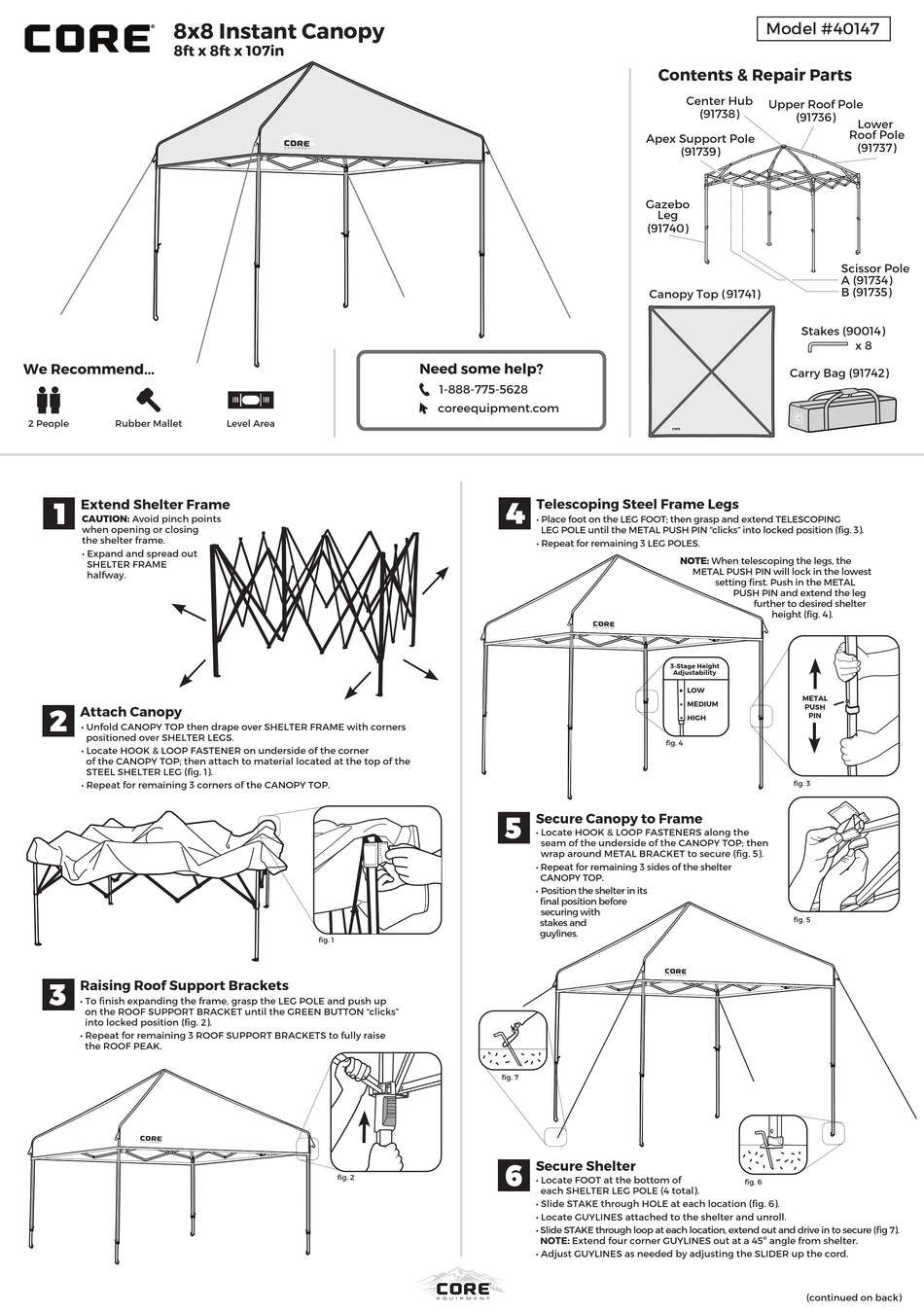

Core 40147 Quick Start Manual

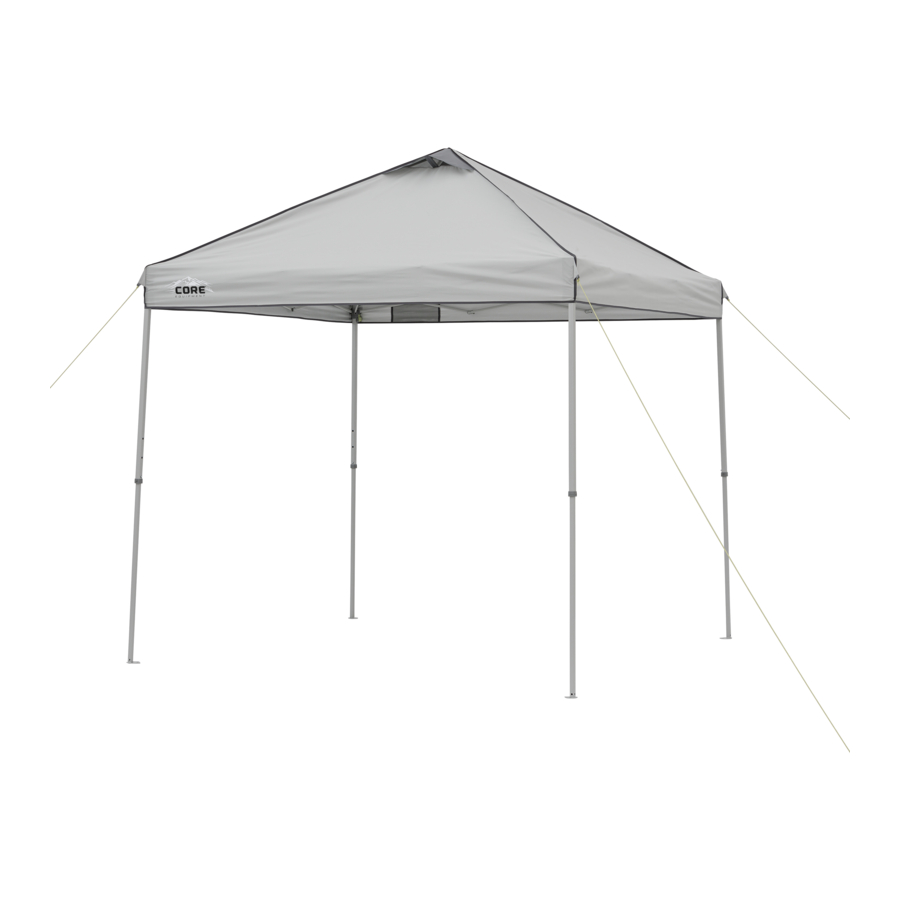

8x8 Instant Canopy
8ft x 8ft x 107in
We Recommend...
2 People Rubber Mallet
1
Extend Shelter Frame
CAUTION: Avoid pinch points
when opening or closing
the shelter frame.
• Expand and spread out
SHELTER FRAME
halfway.
2
Attach Canopy
Unfold CANOPY TOP then drape over SHELTER FRAME with corners
positioned over SHELTER LEGS.
Locate HOOK & LOOP FASTENER on underside of the corner
of the CANOPY TOP; then attach to material located at the top of the
STEEL SHELTER LEG (fig. 1).
• Repeat for remaining 3 corners of the CANOPY TOP.
3
Raising Roof Support Brackets
To finish expanding the frame, grasp the LEG POLE and push up
on the ROOF SUPPORT BRACKET until the GREEN BUTTON "clicks"
into locked position (fig. 2).
• Repeat for remaining 3 ROOF SUPPORT BRACKETS to fully raise
the ROOF PEAK.
Level Area
fig. 1 fig. 1
fig. 2
Need some help?
1-888-775-5628
coreequipment.com
4
Telescoping Steel Frame Legs
Place foot on the LEG FOOT; then grasp and extend TELESCOPING
LEG POLE until the METAL PUSH PIN "clicks" into locked position (fig. 3).
• Repeat for remaining 3 LEG POLES.
5
Secure Canopy to Frame
Locate HOOK & LOOP FASTENERS along the
seam of the underside of the CANOPY TOP; then
wrap around METAL BRACKET to secure (fig. 5).
• Repeat for remaining 3 sides of the shelter
CANOPY TOP.
• Position the shelter in its
final position before
securing with
stakes and
guylines.
fig. 7
6
Secure Shelter
Locate FOOT at the bottom of
each SHELTER LEG POLE (4 total).
• Slide STAKE through HOLE at each location (fig. 6).
• Locate GUYLINES attached to the shelter and unroll.
• Slide STAKE through loop at each location, extend out and drive in to secure (fig 7).
NOTE: Extend four corner GUYLINES out at a 45º angle from shelter.
• Adjust GUYLINES as needed by adjusting the SLIDER up the cord.
Model #40147
Contents & Repair Parts
Center Hub
Upper Roof Pole
(91738)
(91736)
Apex Support Pole
(91739)
Gazebo
Leg
(91740)
Canopy Top ( 91741)
Stakes (90014)
Carry Bag (91742)
NOTE: When telescoping the legs, the
METAL PUSH PIN will lock in the lowest
setting first. Push in the METAL
PUSH PIN and extend the leg
further to desired shelter
height (fig. 4).
3-Stage Height
Adjustability
LOW
METAL
MEDIUM
PUSH
PIN
HIGH
fig. 4
fig. 3
fig. 5
fig. 6
(continued on back)
Lower
Roof Pole
(91737)
Scissor Pole
A (91734)
B (91735)
x 8
