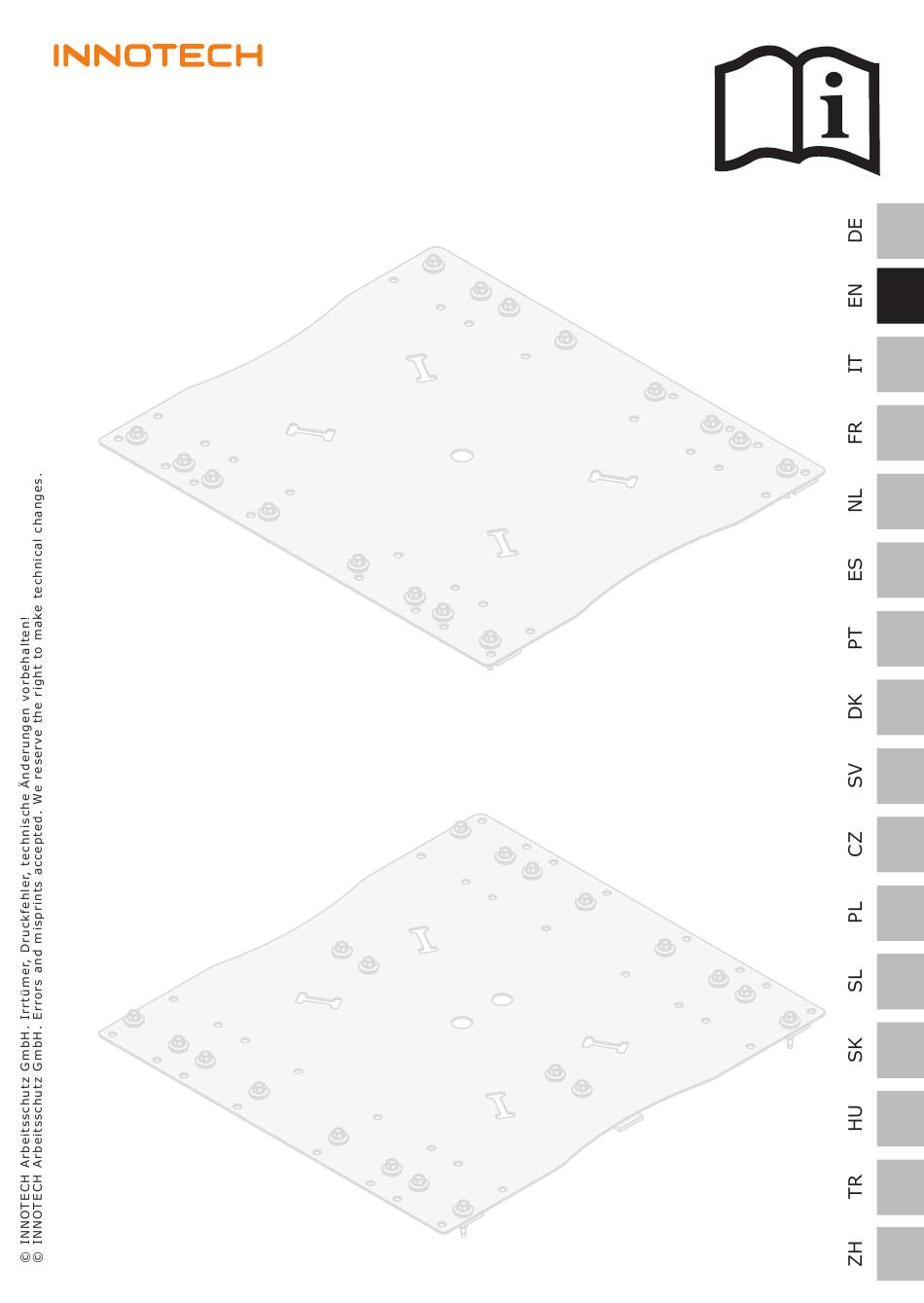

SANDWICH-10/-11
Observe the instruction manual
DE – ACHTUNG: Die Verwendung des INNOTECH-Produkts ist erst zulässig, nachdem die
Gebrauchsanleitung in der jeweiligen Landessprache vollständig gelesen und verstanden wurde.
EN – ATTENTION: Use of the INNOTECH product is only permitted after the instruction
manual has been read and fully understood in the respective language.
IT – ATTENZIONE: L'utilizzo del prodotto INNOTECH è permesso solo previa lettura e
comprensione dell'intero manuale di istruzioni nella lingua del relativo paese di utilizzo.
FR – ATTENTION : L'utilisation du produit INNOTECH n'est autorisée qu'après avoir
entièrement lu et compris la notice d'utilisation dans la langue du pays concerné.
NL – ATTENTIE: Dit INNOTECH-product mag pas gebruikt worden nadat u de gebrui-
kershandleiding in de taal van het betreffende land gelezen en begrepen hebt.
ES – ATENCIÓN: Se autorizará el uso de los productos INNOTECH una vez que se hayan
leído y entendido las instrucciones de uso en el idioma del país.
PT – ATENÇÃO: O uso do produto INNOTECH apenas é permitido depois de ter lido e
compreendido na totalidade as instruções de uso na respetiva língua nacional.
DK – GIV AGT: Du må først bruge et produkt fra Innotech, efter du har læst og forstået
brugsvejledningen i fuldt omfang i dit lands sprog.
SV – O B S : Denna INNOTECH-produkt får inte användas förrän bruksanvisningen på
respektive lands språk har lästs igenom och förståtts.
CZ – POZOR: Práce s výrobkem INNOTECH je povolena teprve po kompletním přečtení a
porozumění návodu k použití v jazyku daného státu.
PL – UWAGA: Produkty firmy INNOTECH mogą być używane dopiero po dokładnym
zapoznaniu się z całą instrukcją obsługi w ojczystym języku.
SL – POZOR: Uporaba izdelka INNOTECH je dovoljena šele po tem, ko ste navodila pre-
brali v celoti v ustreznem jeziku svoje dežele in jih tudi razumeli.
SK – POZOR: Produkt INNOTECH môžete používať až po prečítaní a porozumení celého
návodu na použitie pre príslušnú krajinu.
HU – FIGYELEM: Az INNOTECH termékek használata csak azt követően engedélyezett,
hogy saját nyelvén elolvasta és megértette a teljes használati utasítást.
TR – DİKKAT: INNOTECH ürününün kullanımına ancak ilgili ülkenin dilinde sunulmuş
olan kullanım kılavuzunun tamamen okunmasından ve anlaşılmasından sonra izin verilir.
注意:只有在仔细阅读并完全理解了当地语言的使用说明后,才能使用 INNOTECH 公司的产品。
ZH –

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SANDWICH-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Innotech SANDWICH-10

  • Page 1 PT – ATENÇÃO: O uso do produto INNOTECH apenas é permitido depois de ter lido e compreendido na totalidade as instruções de uso na respetiva língua nacional. DK – GIV AGT: Du må først bruge et produkt fra Innotech, efter du har læst og forstået brugsvejledningen i fuldt omfang i dit lands sprog.
  • Page 2: Table Of Contents

    DIMENSIONS [10] INSTALLATION SUBSTRUCTURE [11] INSTALLATION TOOLS [12] INSTALLATION [13] EXAMPLES OF USE [14] LOAD DIRECTIONS [15] DISPOSAL [16] ACCEPTANCE LOG [17] INFORMATION ON THE SAFETY SYSTEM [18] TEST LOG [19] DEVELOPMENT & SALES SANDWICH-10/-11 / Version 181219 / www.innotech.at...
  • Page 3: Description Of Symbols

    For a POTENTIALLY dangerous situation that could lead to minor physical injuries and damage to property. CAUTION Wear gloves. Wear safety spectacles. Supplementary information/instructions  ü correct wrong Comply with manufacturer's instructions/applicable instruction manuals. SANDWICH-10/-11 / Version 181219 / www.innotech.at...
  • Page 4: Safety Instructions

    Do not make any changes to the restraint system. If used on sloping roofs, roof avalanches (ice, snow) must be prevented by the use of suitable devices to hold back snow. SANDWICH-10/-11 / Version 181219 / www.innotech.at...
  • Page 5 (sharp edges, trapezoidal corrugated sheeting, steel girders, concrete, etc.). Do NOT use restraint systems if wind speeds are higher than normal. Children and pregnant women must NOT use the restraint system. SANDWICH-10/-11 / Version 181219 / www.innotech.at...
  • Page 6: Components/Material

    B) Lubricant: Weicon AntiSeize ASW10000 C) Anchorage eye: Stainless steel AISI 304 D) 17x bore fasteners: Stainless steel AISI 304 E) INNOTECH "SANDWICH-10": Stainless steel AISI 304 F) Hex bolt M16x45 mm: Stainless steel AISI 304 G) 2x Washer M16: Stainless steel AISI 304...
  • Page 7 B) Lubricant: Weicon AntiSeize ASW10000 C) Anchorage eye: Stainless steel AISI 304 D) 21x bore fasteners: Stainless steel AISI 304 E) INNOTECH "SANDWICH-11": Stainless steel AISI 304 F) Hex bolt M16x45 mm: Stainless steel AISI 304 G) 2x Washer M16: Stainless steel AISI 304...
  • Page 8: Product Suitability/Approval

    INNOTECH “AIO-SANDWICH-10/-11‟ was developed as an anchorage point for personal safety for end and corner points, and for intermediate brackets (not included in scope of delivery) in the INNOTECH horizontal lifeline system as per EN 795:2012 TYPE C & CEN/TS 16415:2013 and as an anchor point for personal safety for 3 people (including 1 person for pro- vision of first aid) as per EN 795:2012 TYPE A &...
  • Page 9 PRODUCT SUITABILITY/APPROVAL APPROVAL INNOTECH “EAP-SANDWICH-10/-11‟ INNOTECH "EAP-SANDWICH-10/-11‟ has been tested and certified as per EN 795:2012 TYPE A & CEN/TS 16415:2013. The notified authority participating in the type test: DEKRA EXAM GmbH, Dinnendahlstr. 9, 44809 Bochum, Germany APPROVAL INNOTECH “ AIO-SANDWICH-10/-11‟...
  • Page 10: Inspection

    (written documentation). If necessary, replace the product. ANNUAL REVISION Have INNOTECH-SANDWICH-10/-11 checked at least once a year by a specially trained technician who is familiar with the restraint system. The user's safety depends on the effectiveness and durability of the equipment.
  • Page 11: Warranty

    D) Maximum number of people who can be secured: 3 (including 1 person for first-aid administration) E) Year of manufacture and manufacturer's serial number: JJJJ-..-... F)Number of the applicable standard: EN 795:2012 & CEN/TS 16415:2013 TYPE A SANDWICH-10/-11 / Version 181219 / www.innotech.at...
  • Page 12: Dimensions

    E) Number of the applicable standard: EN 795:2012 & CEN/TS 16415:2013 TYPE C SANDWICH-10 JJJJ-..-... EN 795 : 2012 TYP C SANDWICH-11 JJJJ-..-... EN 795 : 2012 TYP C DIMENSIONS [mm] INNOTECH “SANDWICH-10‟ INNOTECH “SANDWICH-11‟ 16,5 SANDWICH-10/-11 / Version 181219 / www.innotech.at...
  • Page 13: Installation Substructure

    DANGER TO LIFE as a result of installation on an unsuitable installa- tion substructure. Install INNOTECH-SANDWICH-10/-11 on a trapezoidal roof laid with a material thickness of a minimum of 0.6 mm In case of doubt, have the installation substructure checked by a DANGER structural engineer or by the manufacturer.
  • Page 14: Installation

    INSTALLATION RISK TO LIFE if NOT correctly installed. Install INNOTECH-SANDWICH-10/-11 in accordance with the user instruc- DANGER tions. Maintain a min. edge distance of 1.50 m to the end of the roof sheeting (Figure). The maximum spacing of the intermediate cable brackets is 7.5 m.
  • Page 15 INSTALLATION [mm] [mm] ≥ ≥ ü  SANDWICH-10/-11 / Version 181219 / www.innotech.at...
  • Page 16 INSTALLATION SANDWICH-10 SANDWICH-11 DONE! SANDWICH-10/-11 / Version 181219 / www.innotech.at...
  • Page 17: Examples Of Use

    SAMPLE APPLICATIONS SANDWICH-10/-11 / Version 181219 / www.innotech.at...
  • Page 18: Load Directions

    LOAD DIRECTIONS DANGER TO LIFE when used in UNAPPROVED load directions. Use INNOTECH-SANDWICH only in the approved load directions. DANGER DISPOSAL Do NOT dispose of the restraint system with domestic waste. As per national requirements, gather together the used parts, and dispose of them environmentally correctly.
  • Page 19: Acceptance Log

     ANCHORAGE POINTS of a horizontal lifeline system as per EN 795:2012 TYPE C  Specialist: Company address: OPTIONAL: when setting up a horizontal lifeline system in accordance with EN 795:2012 TYPE C Installation of the anchorage points by: Installation of the lifeline system by: SANDWICH-10/-11 / Version 181219 / www.innotech.at...
  • Page 20 (e.g: personal protective equipment PPE Item Item Item Item Included in lightning protection system? Comments: Name: Client Inspection: Contractor (expert who is familiar with the restraint system) Date, company stamp, signature Date, company stamp, signature SANDWICH-10/-11 / Version 181219 / www.innotech.at...
  • Page 21: Information On The Safety System

    If there is strain caused by fall, or if in doubt, the anchorage device must be taken out of service immediately and sent to the manufacturer, or to a specialised workshop for inspection and repair. This applies if there is damage to the anchorage equipment. SANDWICH-10/-11 / Version 181219 / www.innotech.at...
  • Page 22: Test Log

    Inspection logs/anchorage documentation/photo documentation PPE (personal protective equipment against falls from a height): Inspection in accordance with manufacturer's specifications Expiration date Annual inspection performed Not checked (no authorisation) ROOF SEALING: No damage No corrosion ........SANDWICH-10/-11 / Version 181219 / www.innotech.at...
  • Page 23 Technical safety reliability is confirmed. Comments: Name: Client Inspection: Contractor (expert who is familiar with the restraint system) Date, company stamp, signature Date, company stamp, signature SANDWICH-10/-11 / Version 181219 / www.innotech.at...
  • Page 24: Development & Sales

    DEVELOPMENT & SALES ® INNOTECH Arbeitsschutz GmbH, Laizing 10, 4656 Kirchham/Austria www.innotech.at SANDWICH-10/-11 / Version 181219 / www.innotech.at...
