Carson HookUpz IB-700 Manual

HookUpz

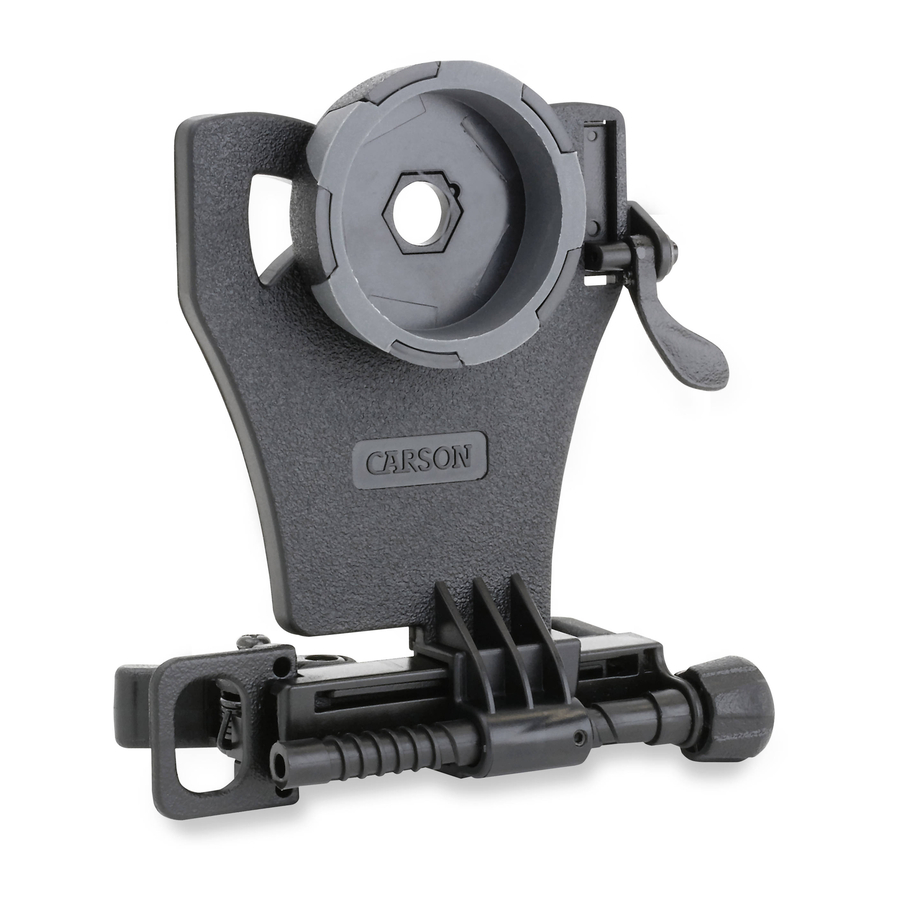

Smartphone Binocular Adapter
Congratulations on selecting your new HookUpz Smartphone Binocular
Adapter! In order to achieve optimum performance, please follow
instructions for proper use and care.
OPTIC AND PHONE SIDE DIAGRAM:
OPTIC SIDE
1. Make sure binocular is focused and is in
fully extended or fully closed position only.
INSERTING PHONE:
1. Rotate to unlock top clamp.
Fig. 1
UNLOCK
TM
PHONE SIDE
2. Smartphone adapter can only be used with left eyecup.* Make sure left
eyecup is fully extended before connecting. If your binocular has fold down
eyecups, fold down and attach adapter.
2. Slide top clamp into
uppermost position.
Fig. 2
PRODUCT SPECIFICATION:
Fits: Most full-size binoculars with
40-44mm eyepieces
0.18 lbs
Weight:
4.0 x 1.9 x 4.4"
Dimensions:
3. Insert phone into
left clamp.
Fig. 3
IB-700
1
