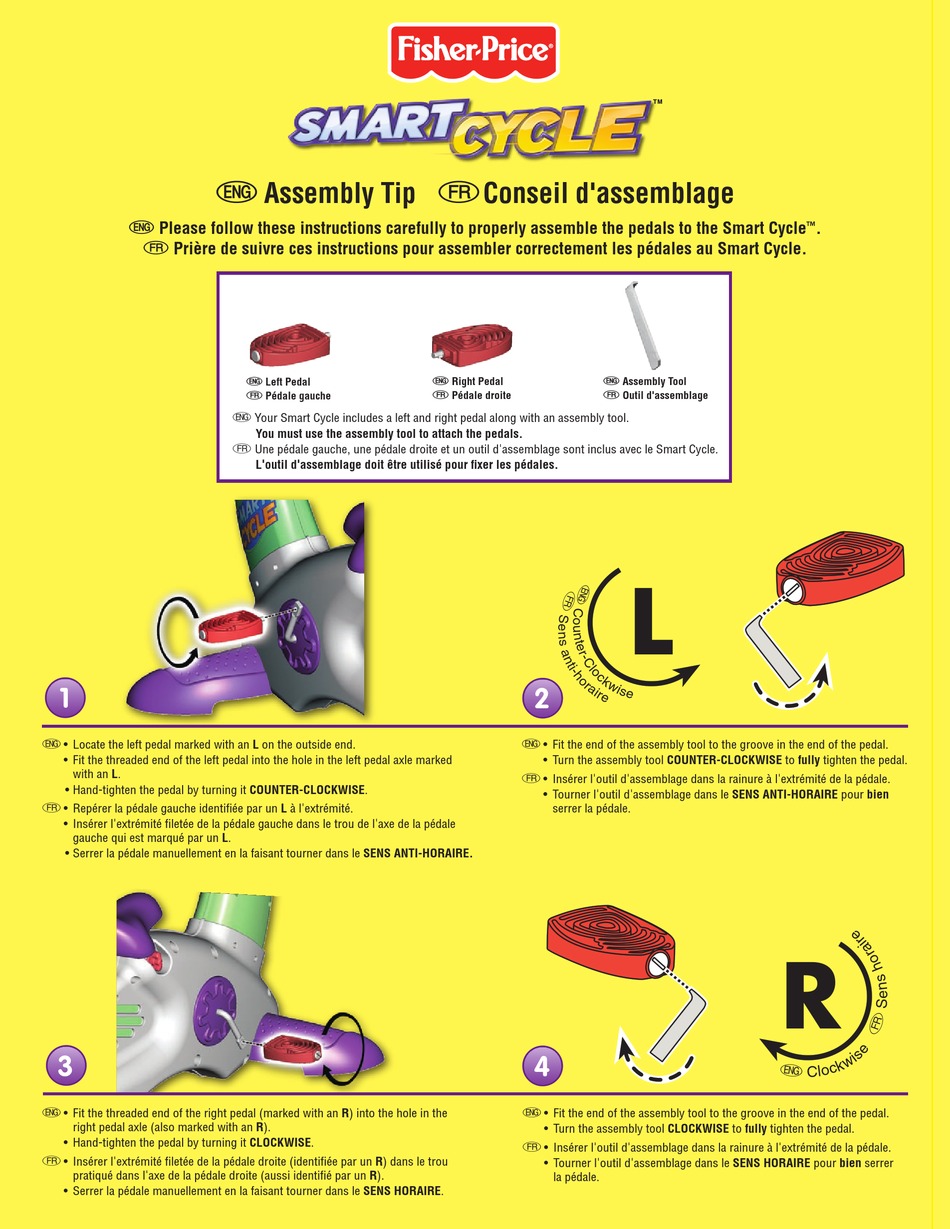

e Assembly Tip fConseil d'assemblage
e Please follow these instructions carefully to properly assemble the pedals to the Smart Cycle
f Prière de suivre ces instructions pour assembler correctement les pédales au Smart Cycle.
1
e • Locate the left pedal marked with an L on the outside end.
• Fit the threaded end of the left pedal into the hole in the left pedal axle marked
with an L.
• Hand-tighten the pedal by turning it COUNTER-CLOCKWISE.
f • Repérer la pédale gauche identifiée par un L à l'extrémité.
• Insérer l'extrémité filetée de la pédale gauche dans le trou de l'axe de la pédale
gauche qui est marqué par un L.
• Serrer la pédale manuellement en la faisant tourner dans le SENS ANTI-HORAIRE.
L
3
e • Fit the threaded end of the right pedal (marked with an R) into the hole in the
right pedal axle (also marked with an R).
• Hand-tighten the pedal by turning it CLOCKWISE.
f • Insérer l'extrémité filetée de la pédale droite (identifiée par un R) dans le trou
pratiqué dans l'axe de la pédale droite (aussi identifié par un R).
• Serrer la pédale manuellement en la faisant tourner dans le SENS HORAIRE.
e Left Pedal
f Pédale gauche
e Your Smart Cycle includes a left and right pedal along with an assembly tool.
You must use the assembly tool to attach the pedals.
f Une pédale gauche, une pédale droite et un outil d'assemblage sont inclus avec le Smart Cycle.
L'outil d'assemblage doit être utilisé pour fixer les pédales.
e Right Pedal
e Assembly Tool
f Pédale droite
f Outil d'assemblage
2
e • Fit the end of the assembly tool to the groove in the end of the pedal.
• Turn the assembly tool COUNTER-CLOCKWISE to fully tighten the pedal.
f • Insérer l'outil d'assemblage dans la rainure à l'extrémité de la pédale.
• Tourner l'outil d'assemblage dans le SENS ANTI-HORAIRE pour bien
serrer la pédale.
4
e • Fit the end of the assembly tool to the groove in the end of the pedal.
• Turn the assembly tool CLOCKWISE to fully tighten the pedal.
f • Insérer l'outil d'assemblage dans la rainure à l'extrémité de la pédale.
• Tourner l'outil d'assemblage dans le SENS HORAIRE pour bien serrer
la pédale.
TM
™
L
R
.
