CLEANING THE FILTER HOLDER UNIT

REPLACING THE XEOS FILTER HOLDER SEAL

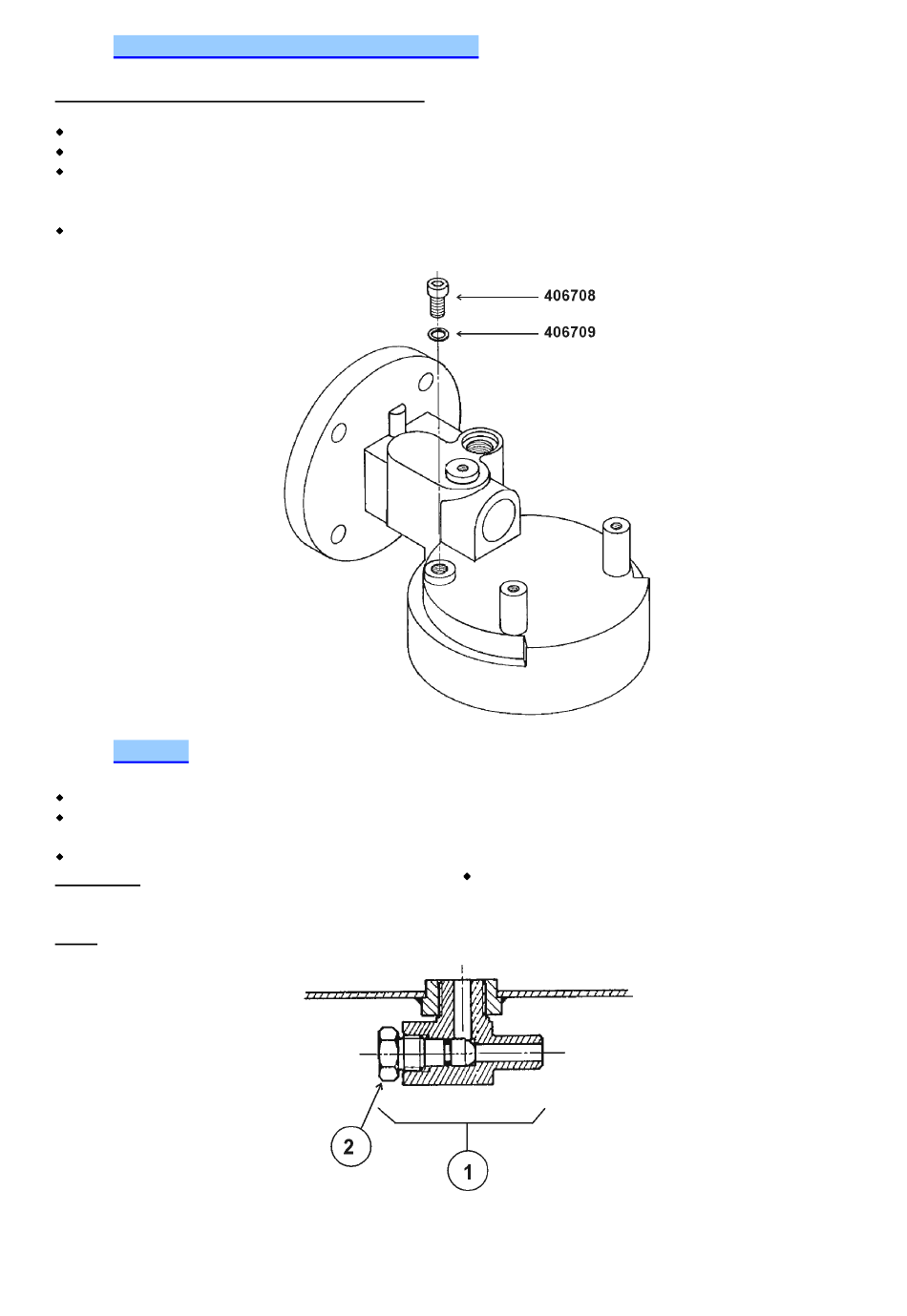

Remove the 6X8 stainless steel screw (n° 406708) (w rench 5).
Remove or leave the copper washer in its place (n° 406709).
Using a screw, size 6 (pitch of 100 and length of at least 200mm) in the hole of the previous screw, lift
the filter holder seal partly out of its hole. This will allow the seal to be accessible. Remove the 6X20
screw.
After cleaning the seal housing, replace the CHC 6X8 stainless steel screw (n° 406708) and the copper
washer (n° 406709). Fasten tightly and fix in the n ew filter holder seal.
33.

BOILER

Turn off the main power.
Empty the boiler, by opening the drain valve, which is found underneath the boiler on the right hand
side.
Turn the drain valve screw (2) 1 or 2 turns.
Attention : Do not remove the screw completely.
Restart the machine according to paragraph A of the installation manual.
Note: If the boiler does not empty once the drain valve screw is opened, take it out and remove any
SACOME, Document CONFIDENTIEL,
SACOME, CONFIDENTIAL Document,
Edition 07/2008 - XEOS EVOLUTION 2 - XEOS TALL CUP
NOTES TECHNIQUES - TECHNICAL DOCUMENTS - page 46
it is forbidden to duplicate or communicate this document without previous authorization.
After draining the boiler, retighten the screw (2).
