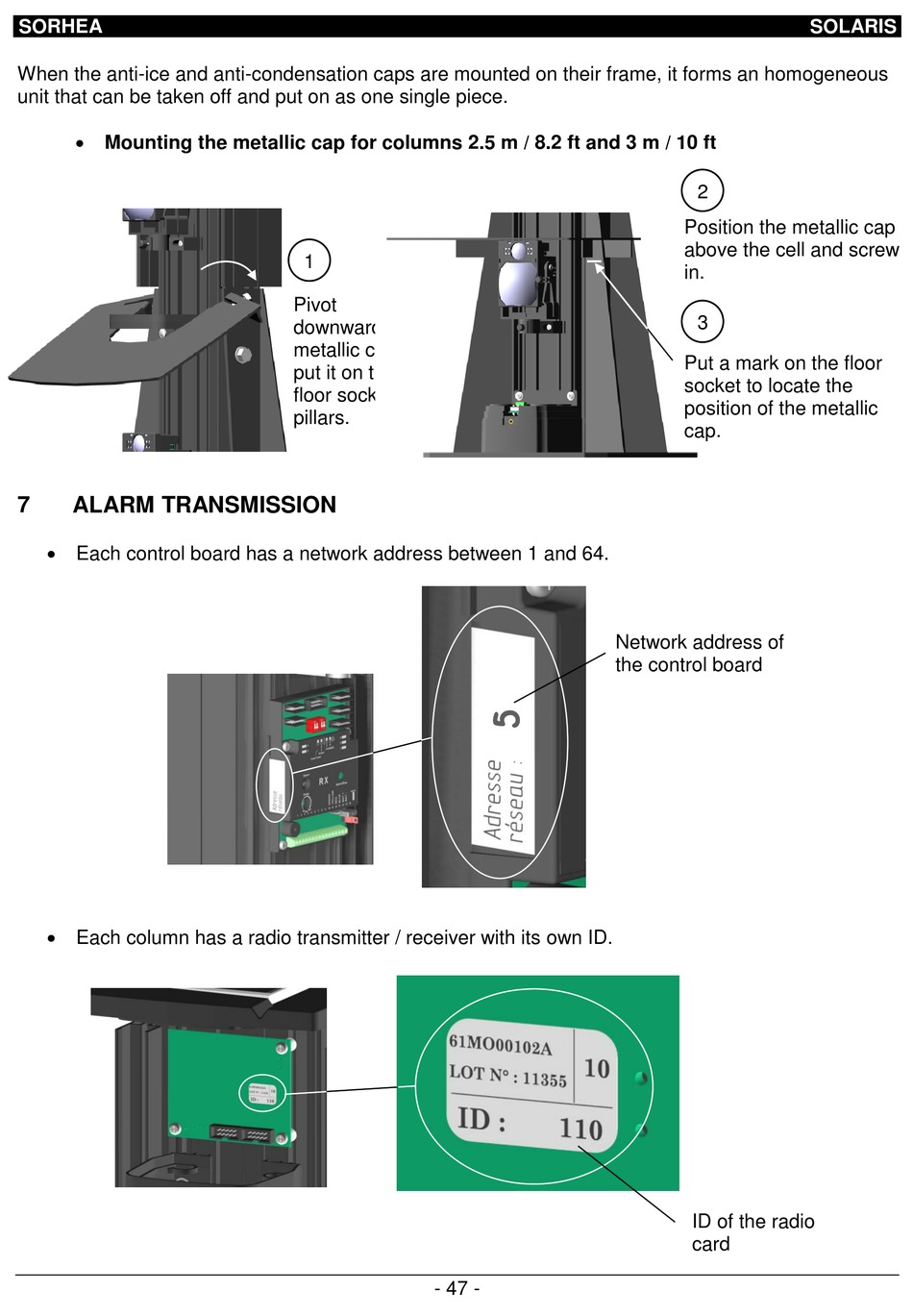

When the anti-ice and anti-condensation caps are mounted on their frame, it forms an homogeneous
unit that can be taken off and put on as one single piece.
 Mounting the metallic cap for columns 2.5 m / 8.2 ft and 3 m / 10 ft
7

ALARM TRANSMISSION

 Each control board has a network address between 1 and 64.
 Each column has a radio transmitter / receiver with its own ID.
1
Pivot
downwards the
metallic cap to
put it on the
floor socket
pillars.
- 47 -
2
Position the metallic cap
above the cell and screw
in.
3
Put a mark on the floor
socket to locate the
position of the metallic
cap.
Network address of
the control board
ID of the radio
card
