Serial Interface Board (SIB-NET)
Introduction
x Description
x Related Documentation
x Software Requirements
Mounting and Connections
x Mounting the ICA-4L
x Mounting the SIB-NET
Programming
© 1998 Johnson Controls, Inc.
Code No. LIT-448190
IFC-1010/2020 Technical Manual 448
IFC Networking Section
Technical Bulletin
Issue Date 1198
Page
www.johnsoncontrols.com
3
3
4
5
7
7
12
17
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metasys SIB-NET
Summary of Contents for Metasys SIB-NET

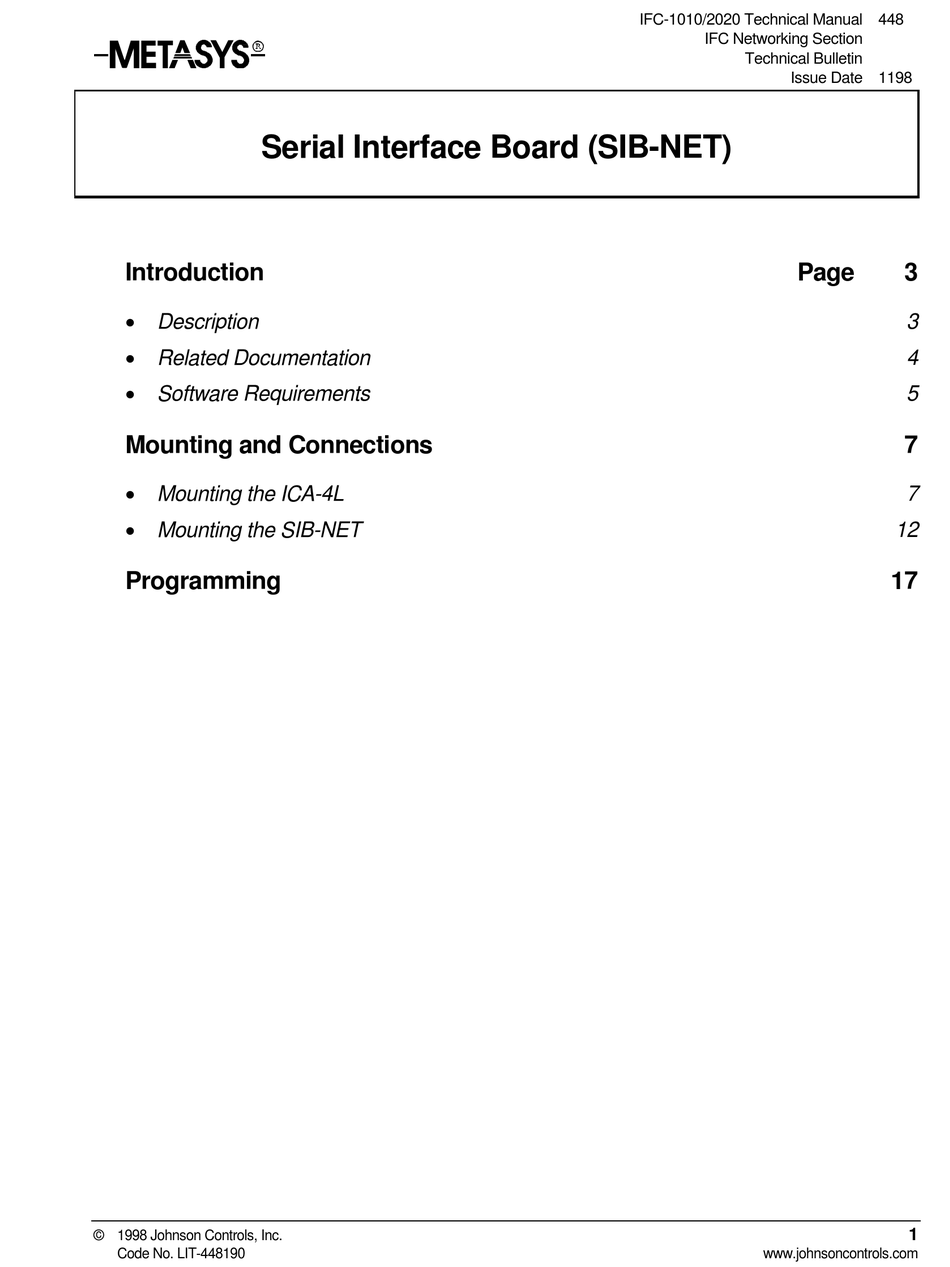

- Page 1 IFC-1010/2020 Technical Manual 448 IFC Networking Section Technical Bulletin Issue Date 1198 Serial Interface Board (SIB-NET) Introduction Page x Description x Related Documentation x Software Requirements Mounting and Connections x Mounting the ICA-4L x Mounting the SIB-NET Programming © 1998 Johnson Controls, Inc.
- Page 2 2 IFC Networking—Serial Interface Board (SIB-NET)
- Page 3 Description Interface Board (SIB-NET) to connect it to the Metasys“ Intelligent Fire Network (Fire Network or FN). The SIB-NET is the interface board that is installed in the IFC-1010/2020 panel that, along with a Media Interface Board (MIB), allows the IFC panel to transmit alarms and trouble events through the FN to other network nodes (IFC panels) for display and recording.
-
Page 4: Related Documentation
Series Technical Bulletin Fire System Objects Technical Metasys Network Technical Manual (FAN 636) LIT-636104 Bulletin Intelligent Network Annunciator LIT-448193 IFC-1010/2020 Technical Manual (FAN 448) (INA) Technical Bulletin Repeaters Technical Bulletin LIT-448197 IFC-1010/2020 Technical Manual (FAN 448) 4 IFC Networking—Serial Interface Board (SIB-NET) - Page 5 Chart file on the Johnson Controls intranet site called The Advisor the replacement for the Johnson Controls BBS. To access this file, select the Library section, then the Fire and Security page, then the Firmware Group Chart file. IFC Networking—Serial Interface Board (SIB-NET) 5...
- Page 6 Figure 1: SIB-NET Board Before mounting the SIB-NET in the IFC panel, install the Metasys Fire Network firmware chip on the SIB-NET. Observing proper orientation and ensuring that none of the pins are bent, insert the EPROM into the socket for U15 on the SIB-NET.
-
Page 7: Mounting And Connections
BE-2020 basic equipment kits. The ICA-4L is fully compatible with both CAB-2 and CAB-3 Series cabinets and the ICA-4 chassis. In order to accommodate the SIB-NET, the chassis used in Tier 1 (top row of the IFC panel) of the CAB Series cabinet must be an ICA-4L chassis. In the remaining tiers of the CAB cabinet, either the ICA-4 or ICA-4L can be used. - Page 8 Note: Since the SIB-NET circuit board has a 16-pin electrical receptacle, it will connect to all 16 pins of the ICA-4L chassis. No pins are exposed when using a SIB-NET (Figure 2). All of the other circuit boards that mount into the chassis will have an exposed pin.
- Page 9 ICA-4L S o cke t H e ad er S o cke t H e ad er s ib n e t2 Figure 2: Mounting the ICA-4L and System Boards Other Than the SIB-NET IFC Networking—Serial Interface Board (SIB-NET) 9...
- Page 10 (75142), there will be an extra pin on one chassis and an extra receptacle on the other. Both the extra pin and the receptacle should be in the front, facing the cabinet door (Figure 3). 10 IFC Networking—Serial Interface Board (SIB-NET)
- Page 11 C A LL T R O U BLE 1 5 P osition s IC A-4 L 1 6 P osition s s ib n e t3 Figure 3: Connecting Two ICA-4Ls Using Expansion Power Cable (75142) IFC Networking—Serial Interface Board (SIB-NET) 11...
- Page 12 FN through the Media Interface SIB-NET Board (MIB) and the SIB-NET. The MIB mounts onto the SIB-NET. For more information on the ICA-4L, refer to the Hardware Installation section of the IFC-1010/2020 Technical Manual (FAN 448).
- Page 13 3. Push the SIB-NET back so that it rests on the four tabs behind the board. 4. Slide the board in toward the center of the ICA-4L and carefully engage the receptacle connector on the SIB-NET with the pin plug connector on the ICA-4L.
- Page 14 Table 3: SIB-NET P3 Terminal Designations Terminal Numbers Description Terminals 1 to 4 Provide wiring for one printer to this unsupervised circuit. Note: This is not the connection for the PRN-4 dedicated printer used with the Fire OWS. Terminals 5 to 8 Provide connection to the Keltron VS4095/5 printer or any UL EDP Listed printer.
- Page 15 2 Figure 7: EIA-485 to SIB-NET Connections Note: If the SIB-NET is not the first device on the EIA-485 circuit, set SW1 on the SIB-NET to the out position. See Installing the IFC-1010/2020 Technical Bulletin (LIT-448155).
- Page 16 The EIA-485 Reference (P5-1) for the SIB-NET must be connected to any ACS device that is not within the same cabinet or is not powered by the SIB-NET IFC-1010/2020 power supply. Connect P5-1 of the SIB-NET to: ACM-16AT at TB1-4...
- Page 17 Programming The SIB-NET can be programmed through full point programming on the IFC panel. The flowchart below shows the specific system configuration parameters and the choices available. For more detailed information, see the Full Point Programming section of the IFC-1010/2020 Programming Technical Bulletin (LIT-448060).
- Page 18 The following is an example of SIB-NET programming: PRESS 1=INSTL, 2=ANN, 3=XINT DO YOU WANT TO CHANGE THE EXTERNAL INTERFACE? (Y=YES, N=NO) DO YOU WANT THE EXTERNAL INTERFACE ENABLED? (Y=YES, N=NO) DO YOU WANT TO CHANGE THE INTELLIGENT SIB ADDRESS? (Y=YES, N=NO)
- Page 19 Notes IFC Networking—Serial Interface Board (SIB-NET) 19...
- Page 20 Notes www.johnsoncontrols.com Controls Group FAN 448 507 E. Michigan Street IFC-1010/2020 Technical Manual P.O. Box 423 Release 1.0 Milwaukee, WI 53201 Printed in U.S.A. 20 IFC Networking—Serial Interface Board (SIB-NET)
