- Page 1 GET TO KNOW YOUR...

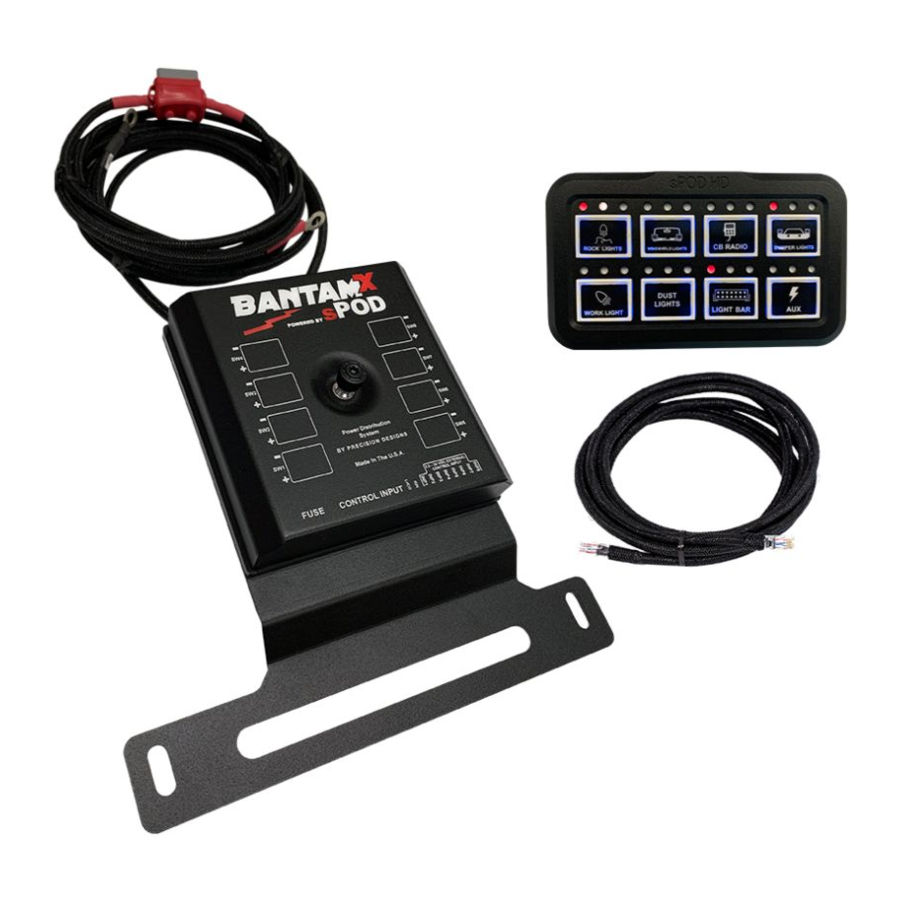

- Page 2 COMPONENTS Positive battery cable connection DIP switches Negative battery cable connection Mounting plate Accessories terminal block for switches 5-8 Input terminal block Jumper for input polarity selection Controller inputs (Ethernet cable) 2AMP fuse for circuit board protection Cover. Do NOT remove or warranty will be voided Accessories terminal block for switches 1-4 Reverse polarity warning lights (lights red if reverse polarity is detected Thumb screw for fastening lid...
- Page 3 DIP SWITCH SETTINGS FACTORY DEFAULT SETTINGS USE / DESCRIPTION DIP SWITCH Three purposes: 1) Initialize “pairing mode” for Bluetooth applications. 2) Disable deep sleep mode. 3) Troubleshooting. Change between 12V (OFF position) and 24V (ON position) electrical systems. Key-on lock-out control. ON position allows switch #1 to only be active when the ignition is on.
- Page 4 WARNING: Always attach to INPUT TERMINAL BLOCK input terminal block first before attaching to the power side. INPUT 1 Disable low voltage cut o by attaching 12/24V from a positive power feed. INPUT 2 Activate key-on / lock-out function from a source of 12/24V from a positive power feed, such as a fuse or circuit that is live when the ignition key is on.
- Page 5 PAIRING BLUETOOTH switch #1 ON and OFF 5 times quickly. Download the sPOD Bantam app onto your smartphone or tablet. Be sure that your device’s Bluetooth option is turned on. With the app closed and o , ip DIP switch 1 ON then OFF in quick succession to put the Bantam in PAIRING MODE for 60 seconds.
- Page 6 INSTRUCTIONAL VIDEOS ALSO AVAILABLE ON OUR WEBSITE...
