Summary of Contents for Delta-T Devices DL2e

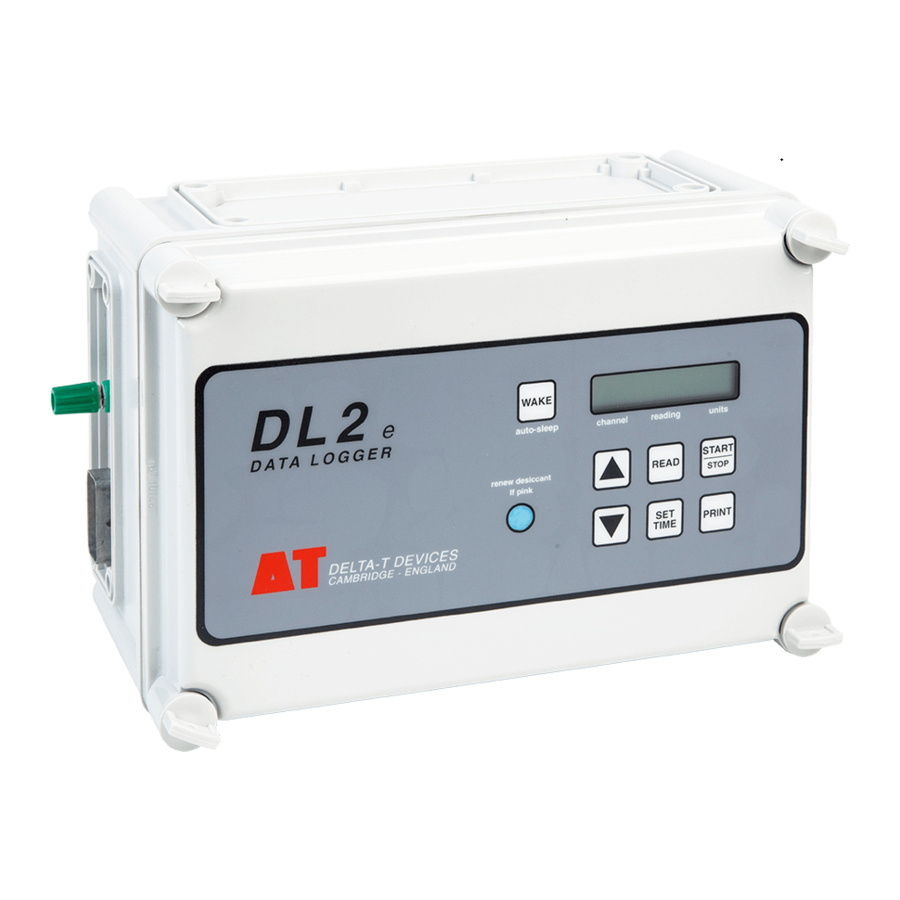

- Page 1 DL2e Data Logger 64 Channel Research-Grade Logger with support for a comprehensive range of sensors Quick Start Guide Version 1.1 Delta-T Devices Ltd...
- Page 2 Many compatible sensors are available – too many to list here! Overview The DL2e can log up to 128,000 readings on up to 64 channels. It has a wide choice of input cards for recording DC & AC voltage, resistance, counts, frequency and status.
- Page 3 63 and 64 Ribbon cable connector blocks Terminal groups: 46-60 31-45 16-30 1-15 Digital Channels 61-62 On-board Warmup or thermistor Relay switches channels 63-64 channel 1 Removable screw terminal block for channels 1-5 © 2006 Delta-T Devices Ltd v1.1 Page 3...
- Page 4 CD ROM drive for software installation • A minimum of 10MB of available hard disk space • DL2e to PC RS232 cable (supplied with DL2e). • Ls2Win software distribution disk (supplied with DL2e) • Acrobat Reader for reading documentation (free download from www.adobe.com).
- Page 5 Tutorial 1) Sensor wiring help 1. Start the DL2e Program Editor. 2. Select Sensor Library. 3. Scroll down to and click on any sensor. An Application Notes window will open with wiring instructions for each sensor and input card. 4. See if you can find suitable instructions for the components in the Tutorial kit.
- Page 6 DL2 keypad Note: The underline cursor _ indicates which channel is active. For further details on keypad operations see the DL2 Hardware Reference in the Online Documents Folder. © 2006 Delta-T Devices Ltd v1.1 Page 6...
- Page 7 6. Type in a new label of up to 8 characters e.g. “Temp”. 7. Select channel 1 for the Cold Junction Channel. (A cold junction is needed by all thermocouples. A built-in thermistor is provided on channel 1). © 2006 Delta-T Devices Ltd v1.1 Page 7...
-
Page 8: Start Logging
5. A Save As dialog appears. Select a suitable folder and file name and type. Note the default binary format is quickest (with .bin after the filename) Click Save to copy the dataset to your PC © 2006 Delta-T Devices Ltd v1.1 Page 8... -
Page 9: Online Help
Note that LS2Win has a detailed online Help: click Help from any window (or press F1) for detailed information about operation and functionality. Select the Document Library folder in the Ls2Win Program group to open a folder of application notes and technical documentation. © 2006 Delta-T Devices Ltd v1.1 Page 9... -
Page 12: Product Care And Maintenance
(2) this device must accept any interference received, including interference that may cause undesirable operation. Please ensure you read Product Usage.pdf in the Document Library folder. Delta-T Devices Ltd Tel: +44 1638 742922 128 Low Road, Burwell...
