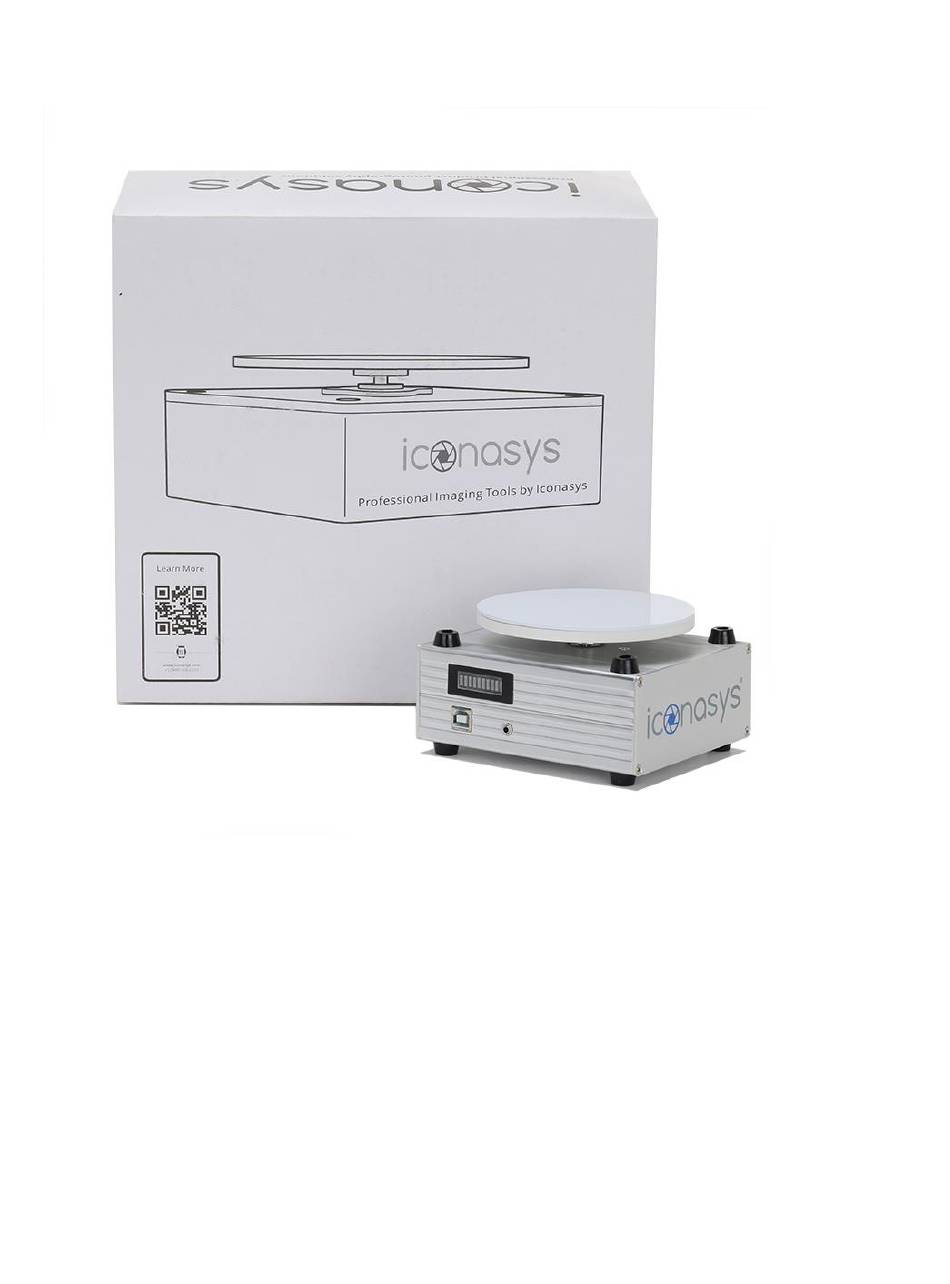

Iconasys Silver Series Jewelry Turntable Set up Guide
Included with purchase:
A. Turntable
B. Master Platform (+4 screws to mount)
C. 2X Black & 2X White Shooting Platforms
D. USB Cord
E. AC Power Adaptor (24V / 2.5A)
F. 3X Rubber Bumper Feet
Optional Accessories
G. Hanging Kit (see page 7-9)
H. Acrylic Riser (see page 10-13)
1
Advertisement
Related Manuals for Iconasys Silver Series
Summary of Contents for Iconasys Silver Series
- Page 1 Iconasys Silver Series Jewelry Turntable Set up Guide Included with purchase: A. Turntable B. Master Platform (+4 screws to mount) C. 2X Black & 2X White Shooting Platforms D. USB Cord E. AC Power Adaptor (24V / 2.5A) F. 3X Rubber Bumper Feet Optional Accessories G.
-
Page 2: Hardware Setup
Hardware Set-up: watch unboxing video 1. Install Master Platform on the table (using the 4 screws provided):... - Page 3 2. The Jewelry Turntable includes 4 shooting platforms – 2X black and 2X white. To eliminate platform slipping between turntable start and stop, you will want to place the 3 rubber bumper feet included in package) on the Master Platform.
- Page 4 3. Select preferred shooting platform and place on top of the Master Platform.
- Page 5 4. Connect turntable via USB to computer and Power Cord to outlet. Then power on turntable:...
- Page 6 5. Launch Software (see Quick Start Guide) Optional Accessories continued on next page.
- Page 7 360 Hanging Kit: a. Stem Mount (magnet connects to turntable stem) b. Hook Mount (ideal for earrings) c. Plate Mount (ideal for necklaces and other items) d. Plate Mount Screw 1. Suspend turntable in upside down position (this can be done using a piece of foamboard (suggested), wood or any other material.
- Page 8 2. Mount Hook or Plate mount to the Stem. Hook mount will screw directly in to the Stem. For the Plate mount, use the screw provided. Then place object on the hanging kit Example images of items mounted via hanging kit:...
- Page 9 Using hook mount. Using plate mount...
- Page 10 Acrylic Riser/Extender Kit: a. 3X Acrylic Riser L Brackets b. L Bracket Screws (9 total) c. 3X acrylic tops (5”, 6.25” & 7.875”) d. 9” Black and White Tops The L Brackets mount direct to turntable via screws (3X mounts on turntables –...
- Page 11 Using L brackets in long position 1. Decide on L Bracket orientation and mount to turntable Master Platform using screws provided.
- Page 12 2. Place an acrylic top (or black/white 9” diameter platform) on the L brackets.
- Page 13 Questions? Please reach out to our Technical Support Department (contact options here)
