Silver Series Turntable Mobile Phone Mounting Kit
Along with the purchase of the Mobile Phone Mounting Kit, you would have
received:

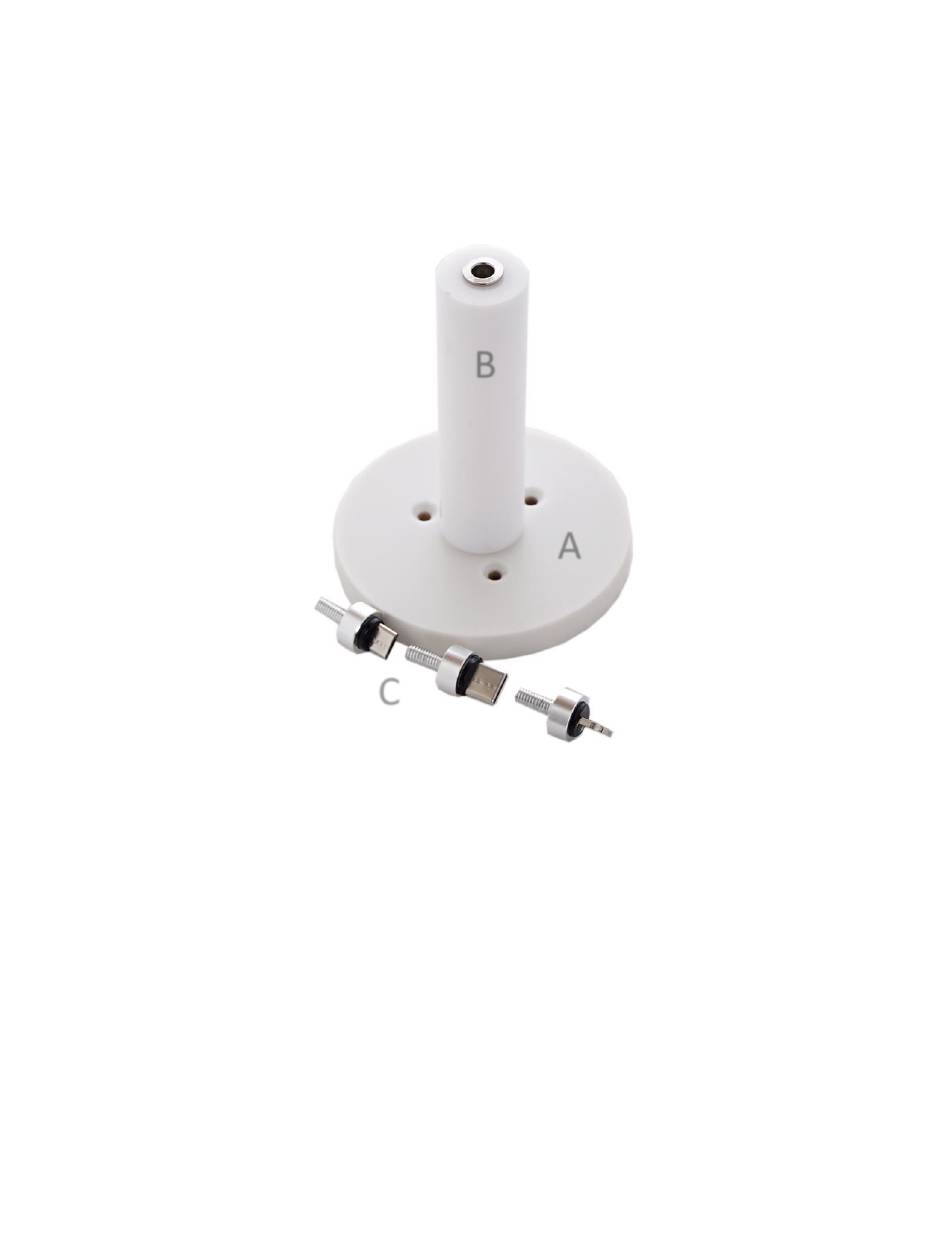

Turntable Mount (+3 screws to mount to the Turntable motor stem collar)
A.
Stem Riser (+1 screw to mount to 'Turntable Mount'):
B.
Connectors:
C.
Lightning Mount (compatible with Apple phones & tablets)
o
USB Type C Mount (compatible with newer Android phones & tablets)
o
USB Micro Mount (compatible with older Android phones & tablets)
o
Set-up Guide
B
C
© Imagen Labs, LLC DBA Iconasys 2013-2020
A
1
Advertisement
Table of Contents
Related Manuals for Iconasys Silver Series
Summary of Contents for Iconasys Silver Series
- Page 1 Silver Series Turntable Mobile Phone Mounting Kit Set-up Guide Along with the purchase of the Mobile Phone Mounting Kit, you would have received: Turntable Mount (+3 screws to mount to the Turntable motor stem collar) Stem Riser (+1 screw to mount to ‘Turntable Mount’): Connectors: Lightning Mount (compatible with Apple phones &...
- Page 2 After the turntable master platform has been removed, you will connect the ‘Stem Riser’ to the ‘Turntable Mount’ using the single screw (insert this into the underside of the Turntable Mount and connect to Stem. © Imagen Labs, LLC DBA Iconasys 2013-2020...
- Page 3 Kit Mount to the center stem: Last, connect a ‘Connector’ to the ‘Stem Riser’ by screwing this into the top of the Riser. Questions? Please reach out to our technical support department: https://www.iconasys.com/technical-support/ © Imagen Labs, LLC DBA Iconasys 2013-2020...
