Orion 5302 Instruction Manual

Field flattener for eon 104mm ed-x2 triplet refractor

Orion Field Flattener for EON

104mm ED-X2 Triplet Refractor

The Orion Field Flattener for EON 104mm ED-X2 was designed exclusively

for the EON 104 ED-X2 Triplet Apo Refractor, to flatten the focal plane for

astro-imaging without affecting the focal length of the telescope, even on full-

frame camera sensors. For photography only, not visual use, this high-per-

formance 2" field flattener is highly recommended for obtaining the highest-

quality images with your EON 104.

This field flattener has an optimal backfocus distance of 55mm (distance from

threaded attachment plate to camera sensor). It comes with interchangeable,

thread-on adapter plates, one with 42mm (T-mount) male threads, the other

with wider, 48mm male threads (which are equivalent to 2" filter threads).

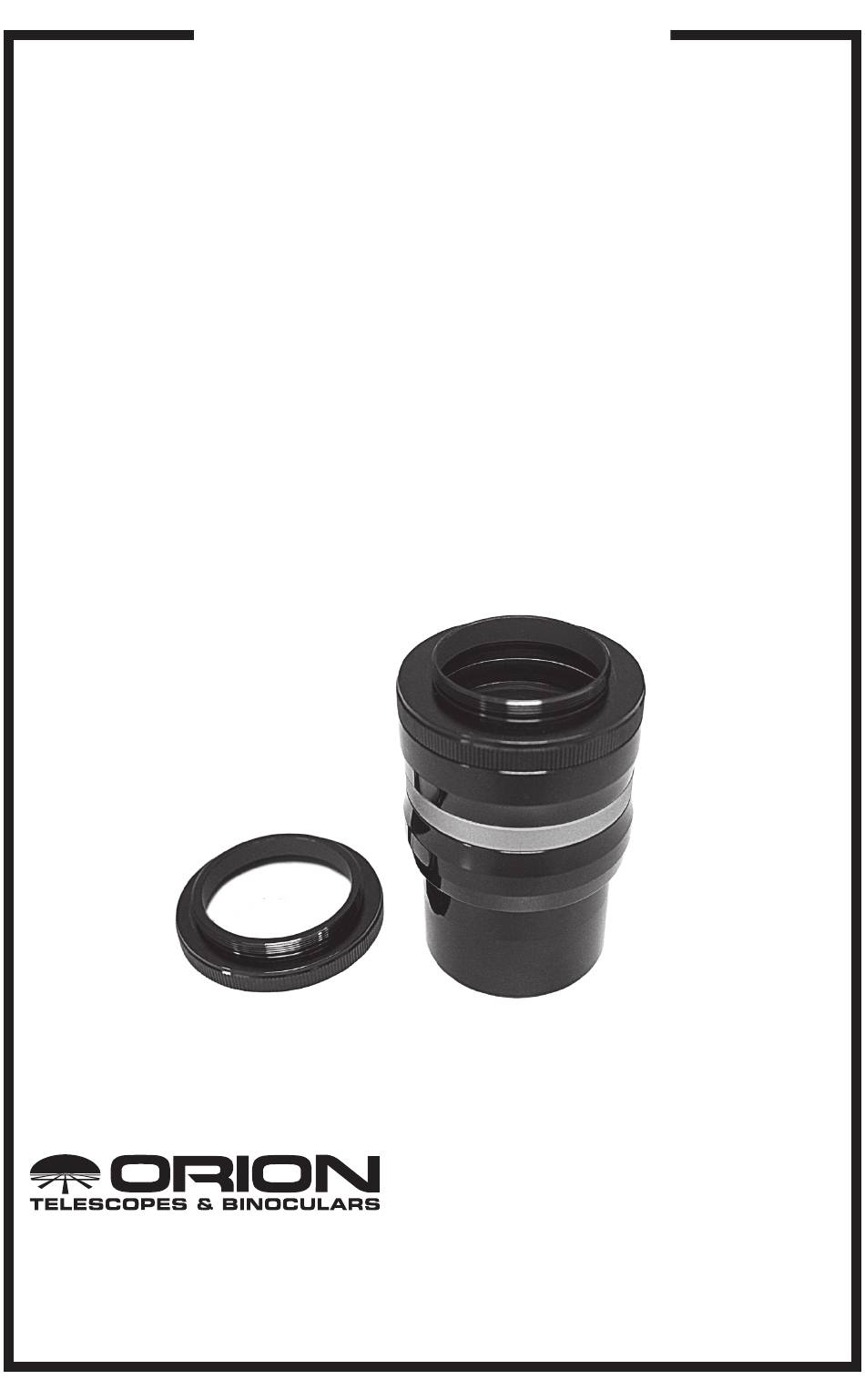

Figure 1.

A N E M P L O Y E E - O W N E D C O M P A N Y

instruction or any of its contents may be reproduced, copied, modified or adapted, without the

INSTRUCTION MANUAL

The Orion Field Flattener for EON 104mm ED-X2

prior written consent of Orion Telescopes & Binoculars.

#5302

Corporate Offices: 89 Hangar Way, Watsonville CA 95076 - USA

Toll Free USA & Canada: (800) 447-1001

International: +1(831) 763-7000

Customer Support: support@telescope.com

IN 565 Rev. A 02/16

Table of Contents

Need help?

Do you have a question about the 5302 and is the answer not in the manual?

Page 1 A N E M P L O Y E E - O W N E D C O M P A N Y Copyright © 2020 Orion Telescopes & Binoculars. All Rights Reserved. No part of this product instruction or any of its contents may be reproduced, copied, modified or adapted, without the prior written consent of Orion Telescopes &...
Page 2 Attaching the Field Flattener to a DSLR Camera The field flattener’s 55mm backfocus distance is designed to work with most DSLR cameras without the need for any additional extension rings (Figure 2.1). A T-ring for the make and model of your camera is the only required accessory to attach the field flattener to your DSLR camera.
Page 3 Specifications Optics 2-element, fully-multicoated Clear Aperture 50mm Focal Length 55mm Mechanical Length 50.2mm Barrel: 2", tapered neck, threaded for 2" filters Weight 8.3 oz (23.4g) Adapter plate threads: 42x0.75mm “T-thread” (male) 48x0.75mm (male) DSLR camera body Field 2" collar on telescope T-ring Adapter Flattener...
