Page 1

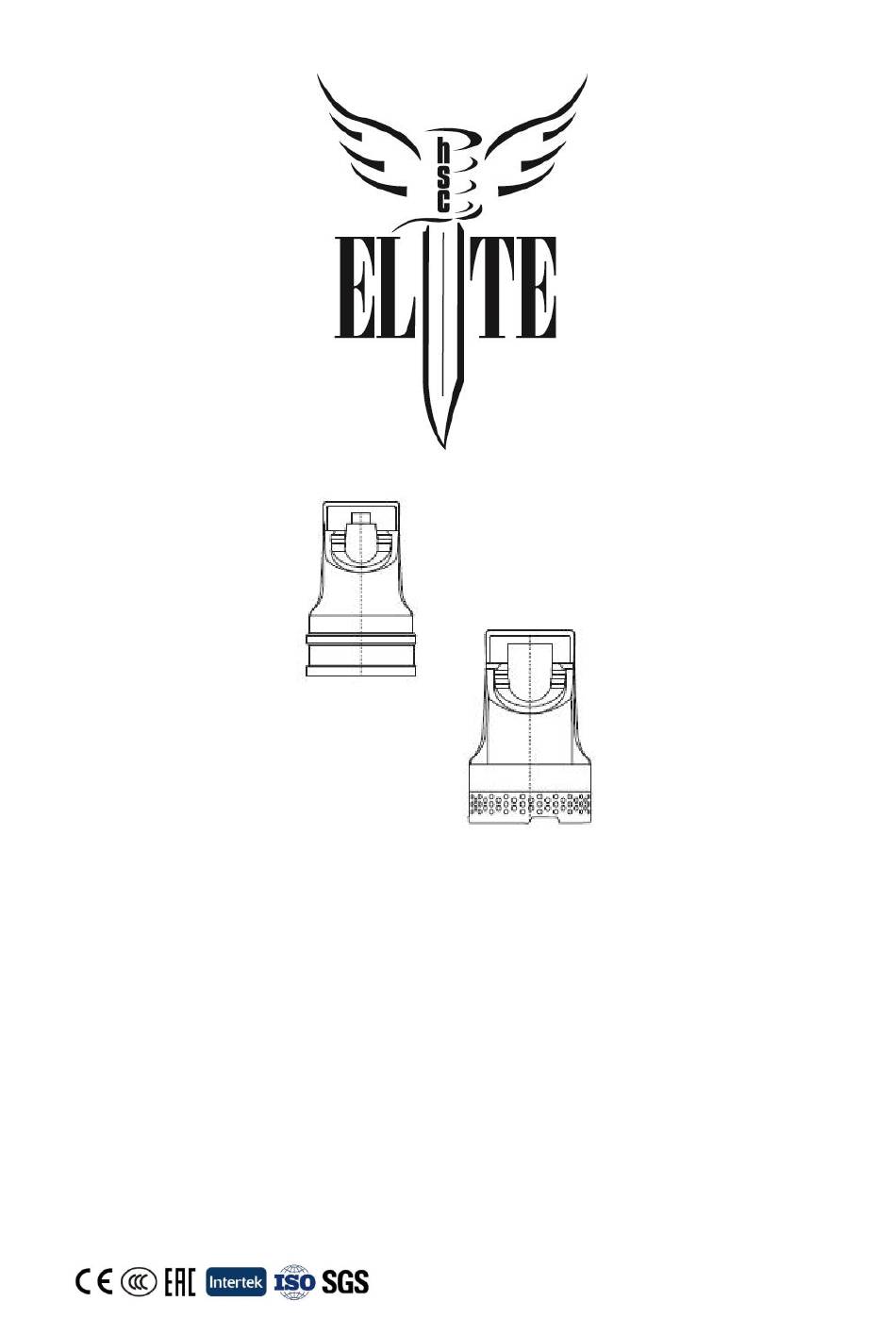

SPK450/SPK450M/SPK450AF series Pump Operation Manual www.hscuk.co.uk...
Page 2
WARNINGS Please pay careful attention to the following warnings signs and indications. Only qualified, licensed personnel should install this pump. The electrical installation shall be in accordance with the national wiring regulations applicable to the country of intended use. 2.The pump operator must be provided with this manual. This must be read before and during operation.
Page 3
Pump Housing AlSi12 Pump Shaft stainless iron Mechanical Seal Alumina/Graphite (Dual Seal) Pump Base NBR with stainless inserted Power Cable H07RN-F 1mm Float Cable H07RN-F 1mm Motor Housing AlSi12 Impeller NBR with stainless inserted USAGE LIMITATIONS Type of liquid clean water with no suspended abrasive material, PH value:6.5-8.5 Max liquid temperature 40℃...
Page 4
SPK450M SPK450AF PREPARING FOR INSTALLATION 1. Ensure pump in good position Inspect your pump, ensuring that it is not damaged. If the pump is damaged report it to where the pump has been purchased or hired from. Warranty of these pumps is void unless they are operated in accordance with these instructions.
Page 5
pump as it rests in its final position at the base of the tank/pit/well. 4. Power Source If the pump is being installed in a permanent position arrange for an electrician to install a 10A weatherproof outdoor power point near the pump if there is not one there already. 5.
Page 6
For SPK450M You must pay attention to the water level whilst the pump is in operation, if the water level is sufficiently reduced you should immediately disconnect the power supply to stop the pump working. Otherwise if it runs without water for a period of time the motor will over heat and burn out the windings, This will invalidate the warranty.
Page 7
are trying to lift water is within the pump’s capacity. A larger pump may be required. Not enough water in the pit to Wait until there is enough pump water in the pit. Ensure the float switch is operating freely. (SPK450AF Only) Pump will not stop, even Float switch is trapped in the...
Page 8
• Inadequate or complete lack of maintenance • Chemical, electrochemical or electrical influences Thank you for choosing Elite pumps! The Hire Supply Company UK Limited Sheet Stores Industrial Estate, Long Eaton, Nottingham, NG10 1AU, UK Tel:0845 309 0707 www.hscuk.co.uk...
