4 Zone DMX and RF wall panel
for Tunable White LED strip
WP-4TWN
Product Description

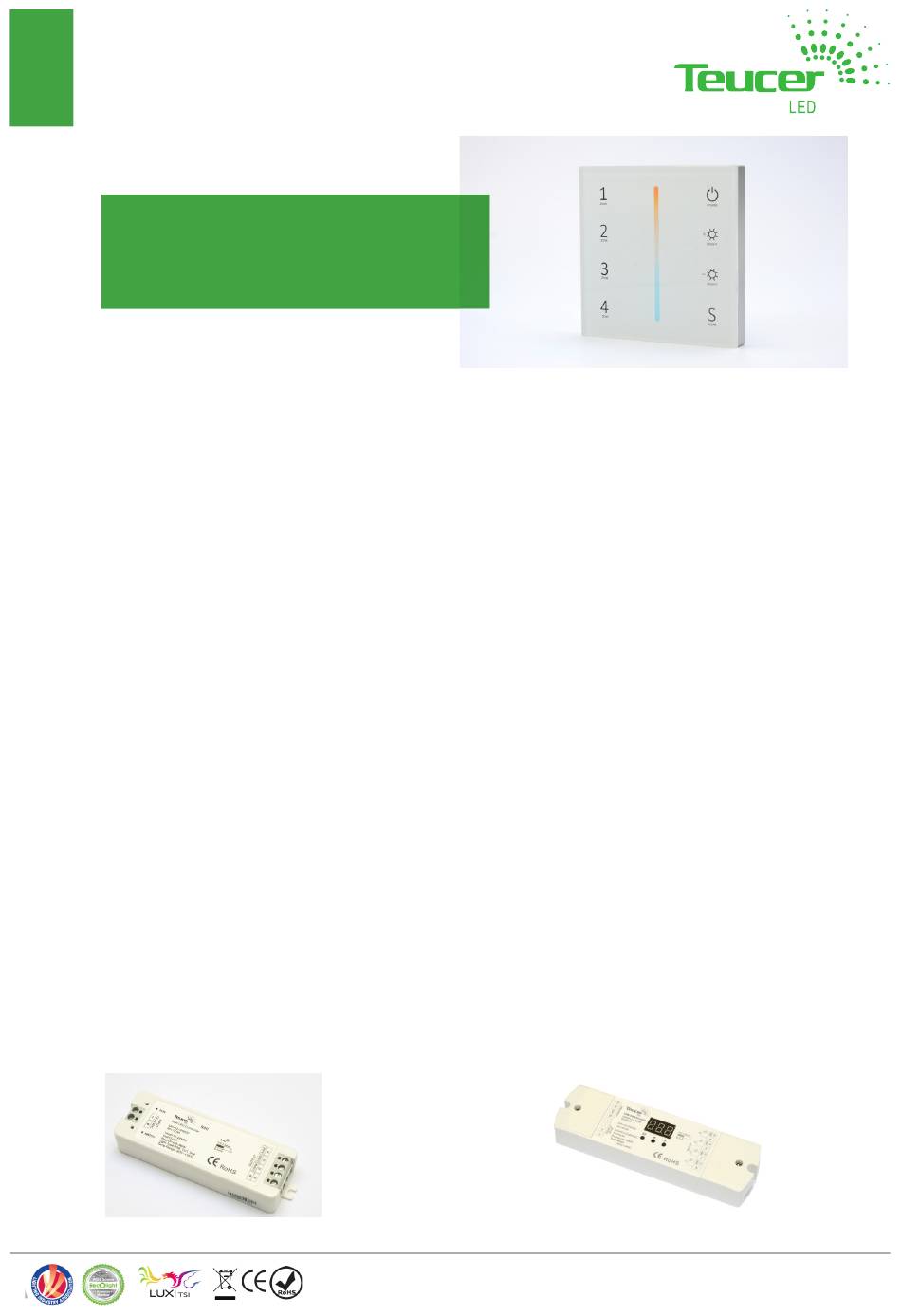

The WP-4TWN wall panel enables control of up to 4 zones of Tunable White LED strip, featuring simple
to use back-lit touch controls for easy CCT and brightness adjustment.
Wall panel Technical Specification
Controller
Type
Input Voltage
Dimension (WxLxH)
DMX Otuput Signal
Operation Frequency
IP rating
Compatible receiver
Technical Specification
Order code
Type
Input Voltage
Current
Output
Note
Dimension
WP-4TWN
RF and DMX wall panel
85-265V AC
86 x 86 x 35mm
DMX512
2.4GHz
IP20
R3C
RF receiver
12-24V DC
3x4A
3X(48-96W)
Constant voltage
33x97x18mm (WxLxH)
Features
•
Adjust CCT and brightness for up to 4 zones
independently or simultaneously
•
Touch sensitive glass and smooth dimming
•
Backlit buttons for night time use
•
Designed to fit into your existing switch back
box
•
Save lighting functions and preferences with
scene save
•
Receiver
Auto-Transmitting
achieve greater distances between receivers
and the remote
•
DMX512 signal output for wired control of
Tunable White DMX decoders
Compatible DMX decoder
Technical Specification
Order code
Type
Input Voltage
Current
Output
Note
Dimension
V002-11-2019
function
DIM-DMX1CH(N)
DMX decoder
12-24V DC
4x5A
4x(60-120)W
Constant voltage
50x170x23mm (WxLxH)
www.teucerled.co.uk
to
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TEUCER WP-4TWN
Summary of Contents for TEUCER WP-4TWN
- Page 1 Tunable White LED strip WP-4TWN Product Description The WP-4TWN wall panel enables control of up to 4 zones of Tunable White LED strip, featuring simple to use back-lit touch controls for easy CCT and brightness adjustment. Features Wall panel Technical Specification •...
- Page 2 4 Zone DMX and RF wall panel for Tunable White LED strip Controller layout FRONT BACK ON/OFF ZONE POWER WP-4TWN Zones ZONE BRIGHT Brightness INPUT DMX OUTPUT 85-265VAC ZONE BRIGHT Scene ZONE SCENE CCT touch AC INPUT L DMX OUTPUT D+...
- Page 3 4 Zone DMX and RF wall panel for Tunable White LED strip Receiver wiring diagram Power supply Tunable white LED strip DMX Decoder wiring diagram WP-4TWN INPUT DMX OUTPUT 85-265VAC Power input AC85-265V DMX Signal AC110-230V AC110-230V +24V +24V +24V +24V www.teucerled.co.uk...
- Page 4 4 Zone DMX and RF wall panel for Tunable White LED strip Synchronising the wall panel to the receiver 1) Ensure the receiver has power. Press the match button on the receiver. LED Indicator will start flashing slowly. LED Indicator Match button 2) Choose the zone you wish to allocate on the panel within 5 seconds after pressing the match button.
- Page 5 Teucer, as well as subsequent Tel: +44 (0)20 7350 4429 return of the faulty unit. Teucer does not accept responsibility for any Fax: +44(0)20 7228 4647 installation costs associated with the replacement of this product European style www.teucerled.co.uk...
