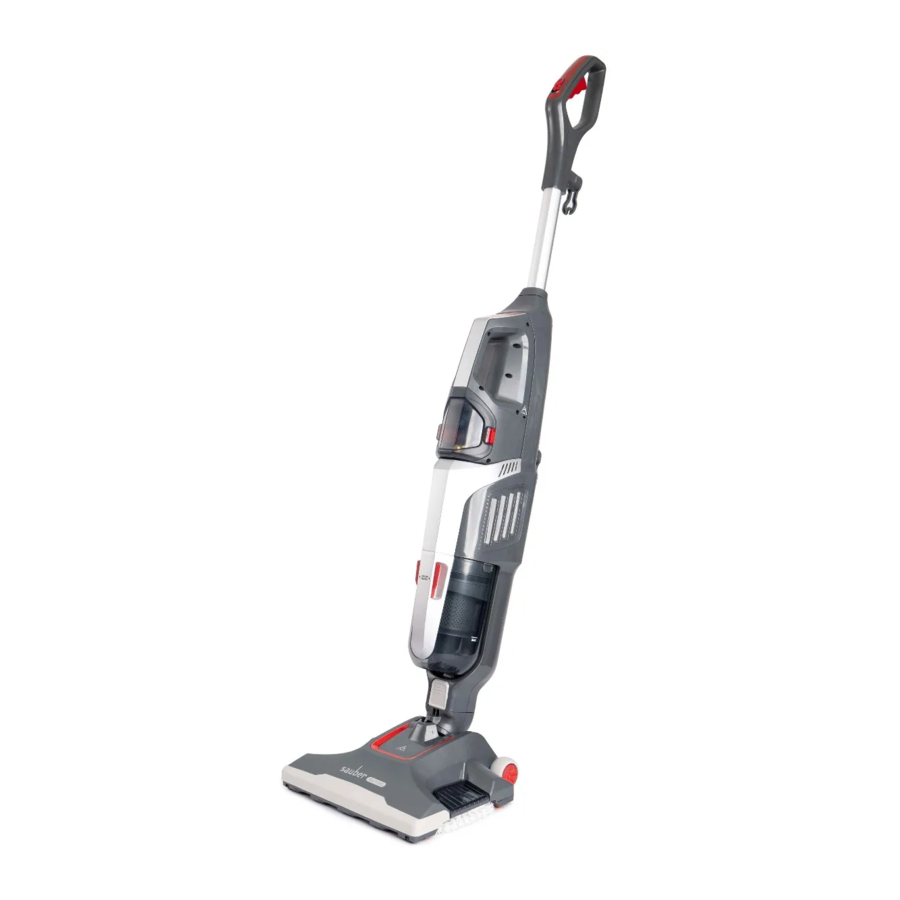

SV-100 Steam and Vacuum Congratulations on the purchase of your new Sauber Steam and Vacuum cleaner. There are many useful features built into your cleaner. We recommend that you carefully read this instruction manual for the best results. Steam Trigger...
Before You Begin This cleaner must be operated in accordance with these instructions and used only for domestic household cleaning. This cleaner is not fit to be used as an industrial cleaner and will void the manufacturer’s warranty if used inappropriately. Please read the manual before operating cleaner This will ensure you obtain full benefit from your new cleaner.
Page 5
IMPORTANT! Always switch off the cleaner and remove the power plug from the electricity power supply before cleaning your appliance, when not in use or attempting any maintenance task. The cleaner must only be connected to an AC power supply at the voltage shown on the rating label.
Page 6
Before you clean, test first Your Sauber Steam and Vacuum cleaner is designed to clean hard flooring such as ceramic tile, vinyl, laminate, marble, stone and sealed hard wood floors. Use of your machine on waxed or some unwaxed floors may result in a diminished gloss.
Page 7
Assembly WARNING! Disconnect the power plug from the power supply before fitting the handle to the rod. Connecting tube Fitting: Insert the handle into the main body of the machine, press until it locks in place. Removing: Use a screwdriver to push into the hole and pull the handle from the main body.
Page 8
Connecting Mop Pad Holder for hard floor cleaning Fitting: Place the machine main body onto the Mop Pad Holder until it locks into position. Remove: Place one foot on the Mop Pad Holder Unlock Button (as shown) and lift up the main unit. IMPORTANT: Always unplug the cleaner when adding water or changing a Mop Pad.
Page 9
Instructions For Use WARNING! Disconnect the power plug from the power supply before filling the water tank. Ensure that the water tank is installed securely into the cleaner before connecting the power plug to the power supply. Filling the Clean Water Tank Remove water tank: NOTE: The tube which transfers water from the Water Tank to the boiler is weighed down with a brass ball.
Control panel description To increase the steam To decrease the steam High Steam Light Indicator Low Steam Light Indicator Ready Light Indicator: Machine is preheating and it is ready to use.
Page 11
Steam cleaning hard floors IMPORTANT! Do not use the cleaner without a Mop Pad attached to the Cleaner Head. Do not use the Carpet Glider when cleaning hard floors. WARNING! Unplug the steamer and let the steamer cool down before you change the accessory.
Page 12
Steam cleaning carpets When using the cleaner on carpet, please ensure that a mop pad and the carpet glider are attached. When you are finished cleaning, press the Steam Function On/Off Button once to switch off the cleaner. Switching on the vacuum function Press on the Vacuum Function On/Off Button to switch on and press again to switch off.
Page 13
Empty the Dust Canister Remove the Dust Canister from the cleaner by pressing the Dust Canister Release Button and pull out the Dust Canister. Lift up the filter and empty the dust from the Dust Canister. Unlock the HEPA Filter Cap by turning anti-clockwise. Clean the HEPA Filter regularly to maintain the suction performance.
Maintenance IMPORTANT! Always remove the power plug from the power socket before performing any maintenance. Replacing the Hard Water Filter The cleaner is fitted with a Hard Water Filter. If you live in an area of hard water the filter will discolor over time.
Page 15
Retrieving and cleaning the Mop Pad Unplug the cleaner from the main power and ensure the unit has cooled. Press one time on the Mop Pad Holder Release Button, and lift the main cleaner to take out the Mop Pad Holder. Wash the Mop Pad in a washing machine with a mild detergent at max temperature 40˚C.
Cleaner storage Fix the wall hook by using a screw driver (not provided) and the three screws (supplied). Unplug the cleaner from the power outlet whilst stored. Neatly tie the cord onto the Cord Holder. Place the back of the appliance into the hook.
Troubleshooting Problems and Solutions If you come across a problem, please use the checklist of troubleshooting tips before ringing Sauber Customer Service Australia on 1800 728 237 or New Zealand on 0800 282 288. Fault Solution The steamer will not switch on.
Spare Parts Part Part Number Hard Water Filter 32201756 Clean Water Tank 33156384 Mop Pad 31400290 Carpet Glider 31155597 Dust Canister 33156385 Dust Canister Filter 32201757...
1 Year Warranty STEAM AND VACUUM Your cleaner, in the case of domestic use, has one year (AUS) or 0800 282 288 (NZ), Monday-Friday 9am-5pm parts and labour warranty against product defects and EST. The decision to repair or replace the cleaner is at failures when the product is used in accordance with the the sole discretion of Electrical Home-Aids Pty.
