Conversor WT-420 – Manual Técnico

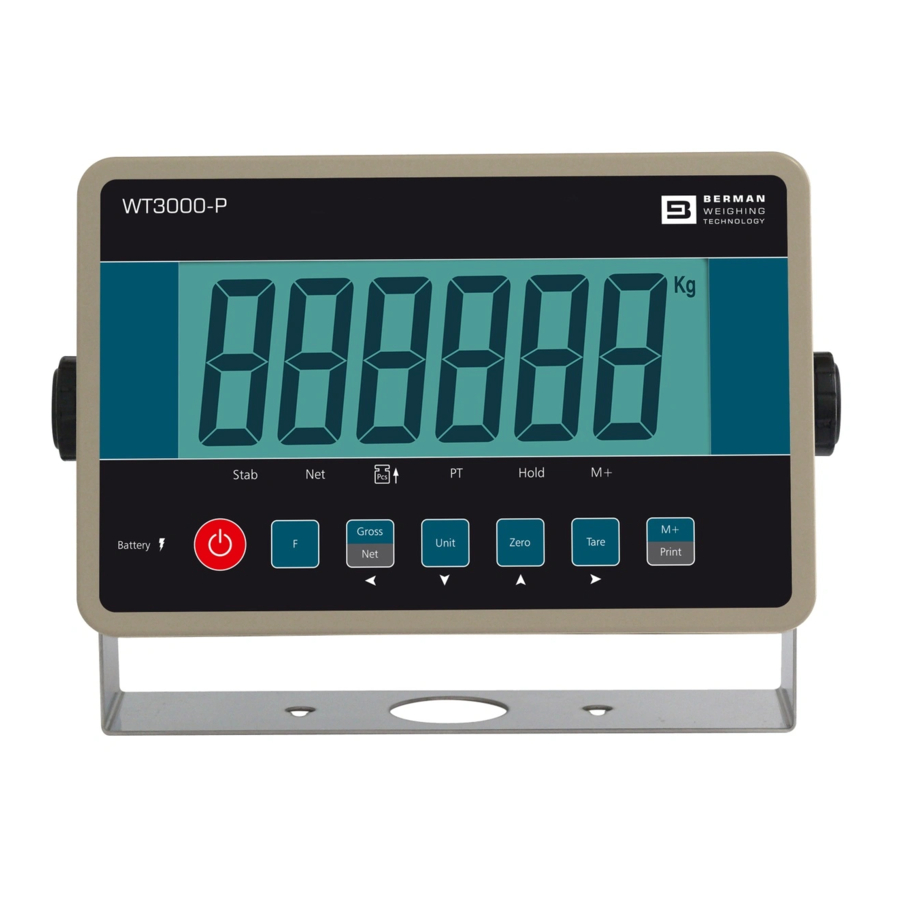

WEIGHTECH
WT3000-P
Weight Indicator.
Wt420_mt_v20150729
Página 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WT3000-P and is the answer not in the manual?

Questions and answers

Related Manuals for WeighTech WT3000-P

Summary of Contents for WeighTech WT3000-P

  • Page 1 Conversor WT-420 – Manual Técnico WEIGHTECH WT3000-P Weight Indicator. Wt420_mt_v20150729 Página 1...
  • Page 2 Now, in addition to acquiring an equipment of excellent quality, you will have an agile, dynamic and differentiated support team to solve any problems. Before using your Weighing Indicator WT3000-P for the first time, read this manual carefully. You can also get additional information on this and all other WEIGHTECH USA products at www.weightechusa.com...

  • Page 3: Table Of Contents

    Conversor WT-420 – Manual Técnico WEIGHTECH ÍNDICE SPECIFICATIONS ....................5 SAFETY REMINDER ..................6 EXTERNAL APPEARANCE ................6 CONNECTIONS ....................8 KEYPAD FUNCTION ..................8 OPERATION ....................... 9 6.1..................9 HARGING THE NDICATOR 6.2....................9 OWER SUPPLY 6.3.
  • Page 4 ..................36 ETTING THE INDICATOR 10.5.2 C DR-WT75DR-WT125 DR-WT200 ..37 ONNECTIONS WITH REMOTE DISPLAY 10.6 B (OPTIONAL) ..........37 LUETOOTH CONNECTION INTERFACE SELF-TEST MODE ................... 38 ERROR MESSAGES ..................39 APPENDIX ......................40 WEIGHTECH LOCATIONS ................41 Wt420_mt_v20150729 Página 4...

  • Page 5: Specifications

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual PECIFICATIONS Table 1 Input sensitivity µV/d Input signal range From -1 up to +14 mV/V Input zero range From -1 up to +5 Units kg, g and lb Internal resolution 1 / 500.000...

  • Page 6: Safety Reminder

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual AFETY REMINDER • The indicator should not be directly exposed to intense sunlight. • The indicator should be used in a flat and leveled surface. • The AC power supply must be grounded.
  • Page 7 WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual Wt3000irabs v20151126...

  • Page 8: Connections

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual ONNECTIONS EYPAD FUNCTION Switch the power on/off. Function key specified by the parameter FnC 12. Toggle the display of gross and net weight values. Switches the operation of the indicator between weighing and piece counting.

  • Page 9: Operation

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual PERATION • To turn on the indicator, press the key . The display performs the self-test indicating "999999" to "000000". Then goes into weighing mode. • To turn off the display press and hold for about 2 seconds button.

  • Page 10: Display

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 6.3. D ISPLAY Zero indication. “STAB” Stability indication. “NET” Net weight indication Insufficient sample indication. “PT” Pre-tare function indication. “Pcs” Pieces counting indication. “M+” Indication of cumulative weighing in memory. Battery charge level indication.

  • Page 11: Tare Function

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 6.5. T ARE FUNCTION The tare function is used to discount the weight of containers. Press , the indicator will discount the weight value show non the display. The tare operation is cumulative, or may be performed more than once. To activate the TARE, the indicator has to be indicating positive and stable weight.

  • Page 12: Gross And Net Weight Indication

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 6.7. G ROSS AND NET WEIGHT INDICATION To switch between gross weight and net weight indication, press the When the net weight is displayed, indicating the net weight will be displayed. 6.8. P...

  • Page 13: Configuration

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual ONFIGURATION To access the user configuration menus press at the same time. - User configuration. - Unused parameter. - Serial comm port configuration. - Exit the user configuration menus. • Important: To access the configuration menu, the indicator must be working in weighing mode.

  • Page 14: User Configuration

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 7.1 U ONFIGURATION Once inside the 01 FnC menu press and select the parameters FnC-00 to FnC-13, press to confirm. Perform the desired alteration and press to save and return to the parameter selection menu.
  • Page 15 WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 000.00h 000.00h Upper weight limit 000.00L 000.00L Lower weight limit 1 → Beep on Check FnC-03 weight 0 → Beep off configuration 000.00b 000.00b 1 → Beep sounds when weight is stable.
  • Page 16 WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual aplied, the indicator shows the resulto on the display with the caption "HOLD". After activate the animal weighing function, the user must set the parameters for weighing calculation as the table below shows.

  • Page 17: Serial Communication

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 7.2 S ERIAL COMMUNICATION Attention: The settings in this menu are assigned to onboard serial port and any other accessories that will send data from the indicator. Once inside the 03rS1 menu press and select the parameters rS1-00 to rS1-12, press to confirm.
  • Page 18 WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual F-m 0 Display value transmission F-m 1 Gross weight transmission F-m 2 Net weight transmission F-m 3 Display value (simple format) F-m 4 Gross weight transmission (simple format) F-m 5 Net weight transmission (simple format)
  • Page 19 WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual • Important: when this value is equal to 0 the automatic transmission will be disabled. ALL-P All status transmission StP-P StP-P Transmission only while stable weight applied rS1-08 Output condition StoL-P Transmission only while stable weight applied or OL status...

  • Page 20: Transmission Formats Description

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual RANSMISSION FORMATS DESCRIPTION Example showing each part of the transmission format: Examples of the transmission formats with 7 bytes of weight values: (F-m 0, F-m 1, F-m 2 and F-m 9): Gross...
  • Page 21 WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual Examples of transmission with 7 bytes of weight value (simple format): (F-m 0, F-m 1, F-m 2 and F-m 9): Gross + SP SP 3 0 0 . + SP SP 2 0 0 .
  • Page 22 WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual Example of weight accumulation format: (F-m 10) SP SP CR LF CR LF SP SP CR LF SP SP SP SP SP CR LF SP SP SP SP SP CR LF SP SP SP SP SP...
  • Page 23 WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual Examples of the transmission of date, time, gross weight, tare, net weight: (F-m 11) CR LF SP SP CR LF SP SP SP SP SP CR LF SP SP SP SP SP...

  • Page 24: Serial Commands

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 8.1 S ERIAL COMMANDS COMMAND Action performed Lower Capital letters letter Manual zero function Tare function Clear the tare value Toggle gross weight value on the display Toggle net weight value on the display...
  • Page 25 WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual For use with printers the Zebra CG420 and Elgin L42 do the following setting: Example of the transmission format for printers (Fm 13): Transmission example Ticket form example FR” IRWT3000” 0000500 0000200...

  • Page 26: Calibration Parameters

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual ALIBRATION PARAMETERS • Note: The access to these functions is blocked through a jumper located on the main board of the indicator. 9.1 A CCESS TO THE CALIBRATION JUMPER • Turn off the indicator;...

  • Page 27: Calibration And Setup Menus

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 9.2 C ALIBRATION AND SETUP MENUS • Once the indicator is turned on with the calibration key position "ADJ." the indicator displays the message "CSP 01". - Menu for setting capacity and division.

  • Page 28: Apacity And Division Setting

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 9.3 9.3. C APACITY AND DIVISION SETTING Once inside the 01 CSP menu press and select the parameters CSP-00 to CSP-03, press to confirm. Perform the desired alteration and press to save and return to the parameter selection menu.

  • Page 29: Calibration

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 9.4 C ALIBRATION Once inside the 02 CAL menu press and select the parameters CAL-00 to CAL-02, press to confirm. Perform the desired alteration and press to save and return to the parameter selection menu.

  • Page 30: Filter And Auto Zero Configuration

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 9.5 F ILTER AND AUTO ZERO CONFIGURATION Once inside the 04 CFn menu press and select the parameters CFn-00 to CFn-06, press to confirm. Perform the desired alteration and press to save and return to the parameter selection menu.
  • Page 31 WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual hoLd 0 Hold function disabled Peak detection. hoLd 1 To reset the function remove the weight applied and press any key. Freezes the weight show on the display when stable. hoLd 2 To reset the function remove the weight applied and press any key.

  • Page 32: Detailed Connections

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual ETAILED CONNECTIONS 10.1 L OAD CELL CONNECTION Wiring diagram for 6-wire load cells: Wiring diagram for 4-wire load cells: Wt3000irabs v20151126...

  • Page 33: Serial Output Connection

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 10.2 S ERIAL OUTPUT CONNECTION The serial output is connected via terminals located on the main board of the indicator in accordance with the table and figure below: Indicator Borne 1 (RxD)

  • Page 34: Connection Of Serial Output Rs 232 Or Rs 485

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 10.3 CONNECTION OF SERIAL OUTPUT RS 232 RS 485 • Note: the optional serial output is sold separately and cannot be used in conjunction with optional output bluetooth. • Note: the optional serial outputs will only assume the same set up made for the onboard serial output and send same serial format of 03RS1 menu.

  • Page 35: 10.4 Connection With Printer Zebra Tlp 2844

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 10.4 CONNECTION WITH PRINTER ZEBRA TLP 2844 The printer Zebra TLP2844 enables printing of gross weight, tare weight, net weight, date, time, number of weighings cumulative weight and barcode. The print format is fully customizable and even allows the insertion of the company logo.

  • Page 36: Rint Button

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 10.4.3 RINT BUTTON Printing is done by key or using the foot switch if FnC 11 = Print. 10.4.4 ONNECTION WITH EBRA PRINTER The serial output is connected through the terminal located on the main board of the indicator...

  • Page 37: Connections With Remote Display Dr-Wt75Dr-Wt125 Edr-Wt200

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual 10.5.2 DR-WT75DR- ONNECTIONS WITH REMOTE DISPLAY WT125 DR-WT200 The serial output is connected via terminal located on the main board of the indicator in accordance with the table below: Indicator Circular connector (Display)

  • Page 38: Self-Test Mode

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual TEST MODE To access the self-test menu press and hold then turn on the indicator by pressing The display will show the following menu: A/D testing; Keyboard testing; Firmware version number; Exit self-test mode.

  • Page 39: Error Messages

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual RROR MESSAGES The EEPROM It's not working properly, it has not been programmed or the main board is damaged. The zero weight value is above the zero range. The zero weight value is under the zero range.

  • Page 40: Appendix

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual PPENDIX Characters of the 7 segments display Wt3000irabs v20151126...

  • Page 41: Weightech Locations

    WEIGHTECH USA Weighing indicator WT3000-IR ABS– Technical manual DDRESSES EIGHTECH ADMINISTRATION – FLORIANÓPOLIS (SC) BRAZIL Rod. Virgílio Várzea, 3110 - Costa Norte Center - Sala 01 CEP 88032-001 – Florianópolis – SC E-mail: weightech@weightech.com.br Tel: 55 48 3331 3200 Fax: 55 48 3331 3201 SALES –...
