weltico A600 ELEGANCE Assembly Instructions

Available languages

IMPORTANT

- These instructions contain information on the installation and commissioning of the

appliance. As a result, it is essential that the installer and the user read these instructions

carefully before starting installation and starting up.

- It is recommended that a professional installer be asked to install this skimmer in accordance

with the current standards.

- It is mandatory to change, as soon as possible, any part or set of parts that may be damaged.

Only use parts authorized by the supplier/installer

- This product complies with the standards NF EN 13451-1 and NF EN 13451-3.

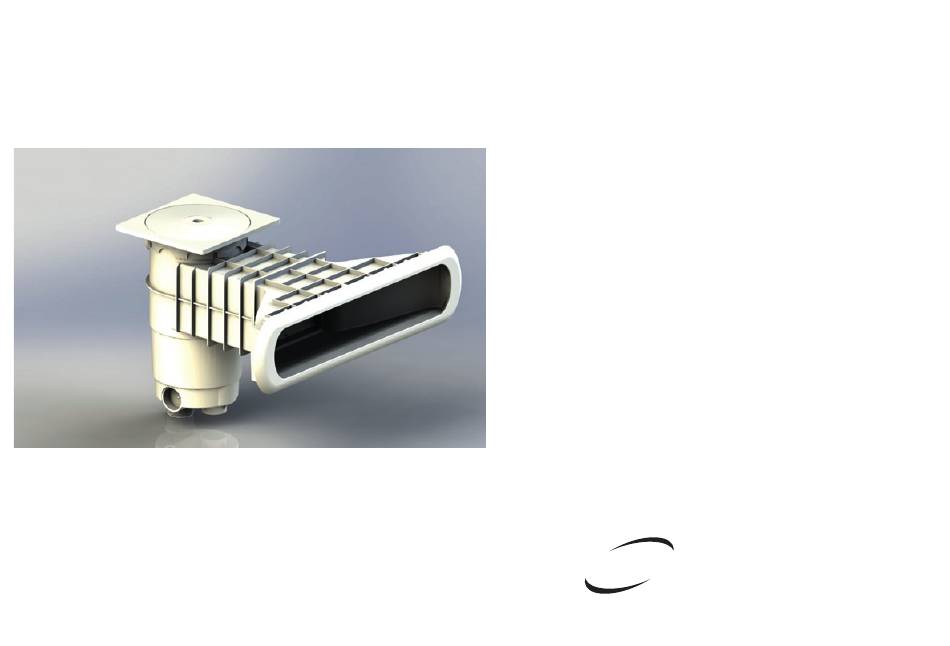

SKIMMER A600

WELTICO

FR ... A

EN ... B

Other languages available on our website:

IT, DE, ES, PT, NL

weltico

P o o l e q u i p m e n t

Équipements du bassin

15, rue des Marais BP3

44310 ST PHILBERT DE GRAND LIEU

FRANCE

Tel: +33 2 40 59 95 35

Fax: +33 2 40 59 94 91

www.weltico.com

technique.acis@acis-france.com

Table of Contents

Need help?

Do you have a question about the A600 ELEGANCE and is the answer not in the manual?

Page 1 SKIMMER A600 WELTICO FR ... A EN ... B Other languages available on our website: IT, DE, ES, PT, NL IMPORTANT - These instructions contain information on the installation and commissioning of the appliance. As a result, it is essential that the installer and the user read these instructions carefully before starting installation and starting up.
Page 2 TECHNICAL SPECIFICATIONS: VERSIONS: CONCRETE or PANEL/LINER or CONCRETE/ LINER or SHELL • Manufactured in white ABS or WELTICO color • Made in France • Vertical ø50 mm or 1’’1/2 or 2’’ outlets plus a horizontal ø50mm outlet • Overflow ø50 mm LINER •...
Page 3 DIMENSIONS 1. BONDING BONDING SURFACE BONDING SURFACE MOUTH SKIMMER APPLY A CONTINUOUS BEAD OF GLUE ALONG THE DOTTED LINE CAUTION: once the two parts (glued beforehand) are in contact, it is almost impossible to separate them after a few minutes. 2.
Page 4 3.A ASSEMBLAGE PANNEAU Une fois le skimmer en place, mettre le renfort dans la meurtrière avant le coulage du béton ferraillé par-dessus. bloc de scellement Boulonner le skimmer sur le panneau à l’aide des vis fournies.
Page 5 3.C ASSEMBLAGE COQUE 3.B ASSEMBLAGE BETON PRECONISATIONS POUR TOUT ASSEMBLAGE : NOTA : lors du scellement du skimmer, le bloc de scellement doit impérativement rester en place jusqu’à séchage complet du béton. Préconisations pour le scellement : - 30mm de béton minimum plage - Fer à...
