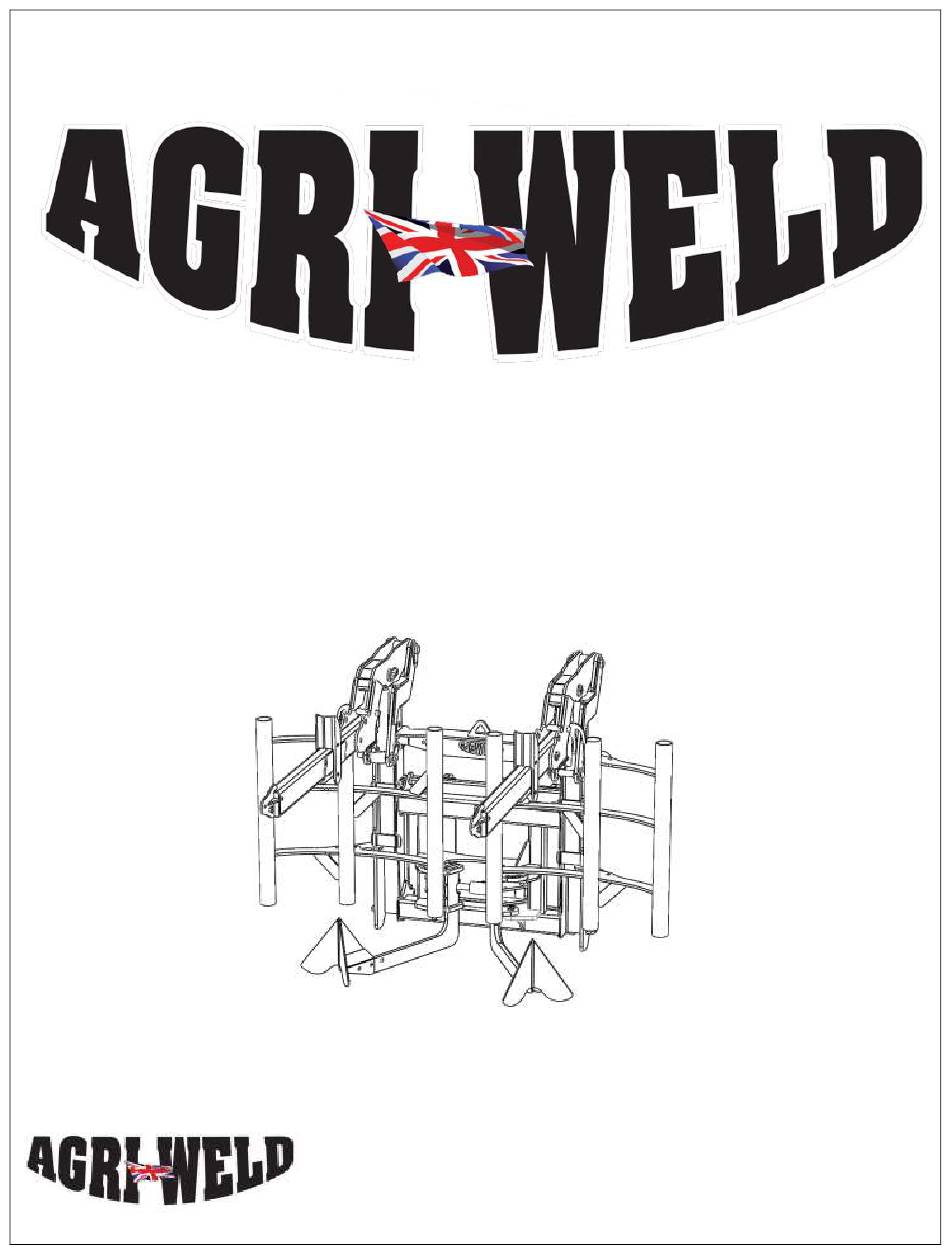

- Page 1 OPERATOR MANUAL ABC Twin Agriweld Bag Cutter The Workshops Main Street Garton-on-the-Wolds Driffield, YO25 3ET Tel: 01377 259140 Fax: 01377 259141 www.agriweld.co.uk Email: sales@agriweld.co.uk...
-
Page 2: Contents Page
Contents Page Page 3 Summary and General Safety Qualifications, Training, Further Safety & Special Safety Page 3-4 Instructions Page 5-6 Operation Page 7 Full Assembly Page 8 Lift Arm Height Adjustment Page 9 Top arm assembly (Folding/Unfolding Positions) Page 10 Bag cutting blade assembly Page 11 Parts list... - Page 3 Summary & Capacities The Agriweld Bag Cutter (ABC) is a hydraulically operated, front mounted implement for handling and cutting fertiliser/seed/feed bags. It is designed to fit any forklift/loader (specified on order) with a minimum lift capacity of 3000kgs for a twin ABC or 2000kgs for a single ABC, by use of the relevant bracketing to suit each intended forklift/loader.
-
Page 4: Special Safety Instructions
Agriweld could have detrimental effects to the construction or functions of the Agriweld ABC. Agriweld shall not be responsible for any damage caused by the use of spare parts or accessories and ancillary equipment not supplied or approved by Agriweld. -
Page 5: Safety First
Take extra care when attaching and detaching the ABC bag cutter to/from the forklift/loader. Be aware of your surroundings and watch out for wandering individuals. Ensure that the forklift/loaders hydraulic system is in full working order before starting work. Never allow any person to stand between the forklift/loader and the ABC during connection or at any time unless the forklift/loader is secured against rolling away by use of a parking brake and/or wheel chocks and the engine is turned off. - Page 6 2. Before you attempt to pick up any bags, ensure the ABC bag lift arms are in their lowest position on the loader hydraulics with the bag cutters in the folded back position. 3. Carefully locate the bag via the bag loops on to the ABC arms. Ensure the bag loops are located fully up to the “stop”...
-
Page 7: Full Assembly
DANGER: Please ensure you position the ABC bag cutters facing towards a wall or building side to prevent trip hazard and potential impalement when not in use. DANGER: The ABC cutter blades are sharp and pointed. Risk of injury is possible if machine not positioned safely when not in use. - Page 8 Lift Arm Height Adjustment (Set prior to each use for different sized bags) Adjusting the bag lift arm height: Remove/replace the adjustment pins as illustrated to the left, to adjust lift arm height. (Circled in Red) Always re-insert linch pins to secure main adjustment pins in place...
- Page 9 FOLDING THE ARMS INTO TRANSPORT/STORAGE POSIITON TRANSPORT/STORAGE POSITION: To drop arms in to transport position: Remove linch pin and securing pin (6) from rear hole to allow arm to fold down. Replace pin (6) and linch pins into front hole to secure arm in transport position.
- Page 10 REMOVING THE CUTTING BLADES: To remove the blades for sharpening or to replace them in the future, remove the M16 nuts and bolts and the blade assembly will come away. DANGER – Sharp blades: For safety purposes, always leave the ABC sited with the blades positioned facing a wall or other solid structure to prevent injury.
-
Page 11: Parts List
PARTS LIST Part No Description Quantity Per Machine Bag Holding 120_60_01 704/2 Lift Rams Bag Cradle Bag Cutting 0606_SS Blade Main Frame Transport/Work Position Pin AW_M16_N M16 Nut AW_M16_W M16 Washer AW_M16X50_B M16 Bolt Bag cutter arm 702/150... -
Page 12: Hydraulic Diagram
Hydraulic Diagram Throttle Valves on Main Lift Rams A & B To adjust the speed of lifting and lowering a bag, adjust Throttle valves anti-clockwise to increase speed and clockwise to decrease speed. Always adjust both to the same setting. Check Valve Check Valve (2 of 3) -
Page 13: Valve Adjustments
VALVE ADJUSTMENTS Sequence valve (C) - Knife retract pressure Anti-clockwise = Reduce pressure. Clockwise = Increase pressure. If the knives retract before the bag has been cut, increase pressure on valve A. Sequence valve (D) Knife advance timing When lifting the bags, if the knives advance before the arm reaches maximum height, adjust valve D clockwise for more pressure until correct timing is achieved. - Page 14 Throttle Valve (Knife ram X) This Throttle Valve controls the advancing and retraction speed of the Knives. To reduce speed of knife advance/retract = turn valve anticlockwise. To increase speed of knife advance/retract = turn throttle valve clockwise.
- Page 18 Stickers Sticker Part Description Quantity per number Machine AW_BL_AS Agriweld (185 mm x Sticker 85mm) AW_MGIB Great Britain (85mm x Sticker 50mm) AW_ABC_17 ABC Sticker Read operator AW_180_OM manual sticker Agriweld AW_ST Stencil Sticker Grease Nipple AW_GN Sticker Hand Trap...
-
Page 19: Warranty
Warranty Your Agriweld ABC is covered for a period of 12 months from the date of dispatch (which is recorded on our files) against faulty components and/or bad workmanship. Our welders are coded to ISO 9606-1 and our welding procedures are approved in accordance with ISO 15614-1 to manufacture your equipment. -
Page 20: Ce Declaration Of Conformity
ABC Agriweld Bag Cutter Twin model to bespoke bag sizes as Product Options: listed Individual Serial Number: AGRIWELD Bag Cutter (ABC) for Product Description: carrying/transporting/cutting bespoke bag sizes: • 1030mm x 1030mm x 1030mm high • 930mm x 930mm x 1250mm high •... - Page 21 BLANK PAGE FOR YOUR OWN NOTES...
