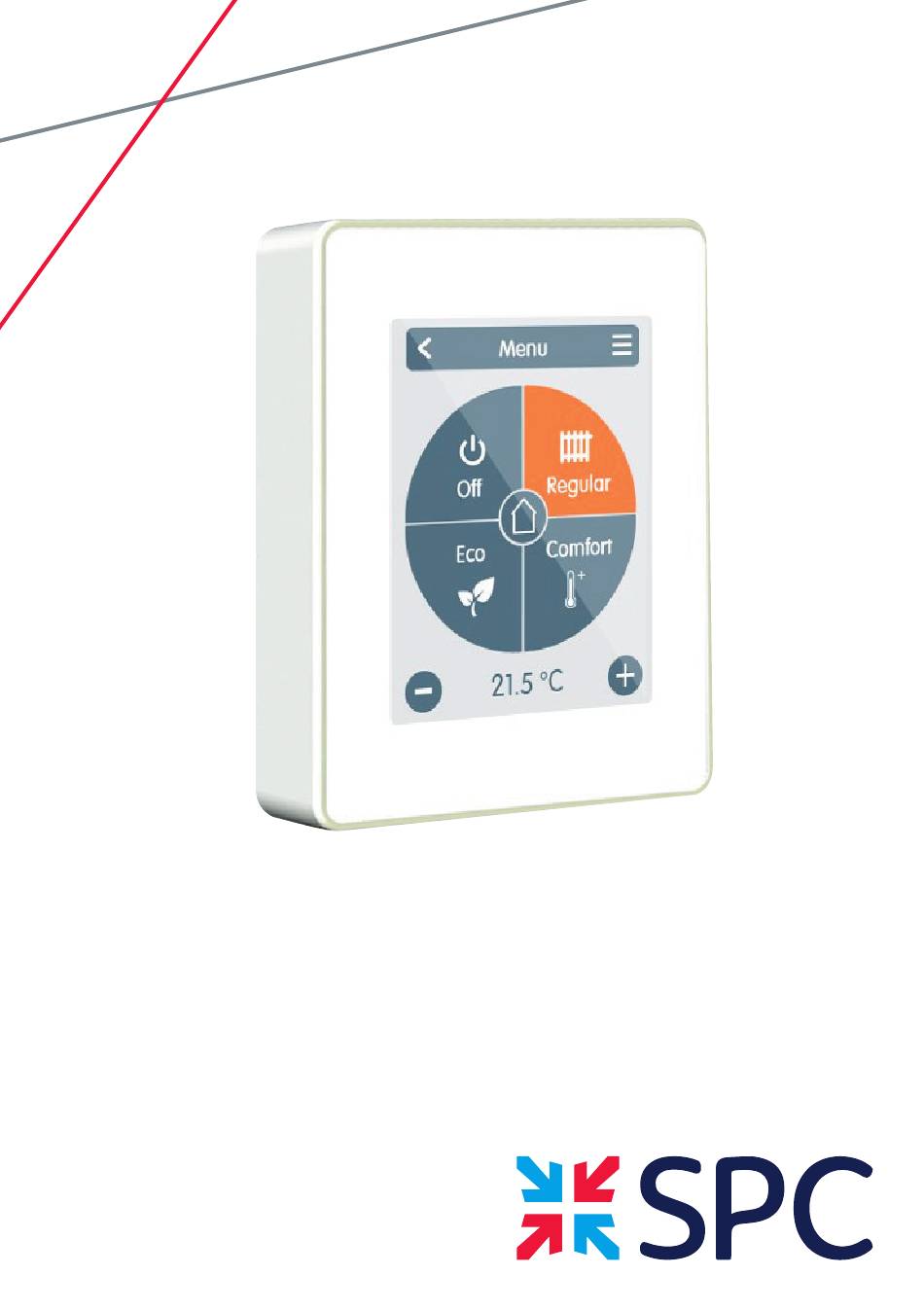

- Page 1 Modulo Thermostat Installation and operating instructions Read carefully before installation,commissioning and operation...
-
Page 2: Table Of Contents
IOM 81, Issue 2 - Modulo Thermostat Contents Page Safety Instructions EG-Conformity General Instructions Changes to the Unit Warranty and Liability Disposal and Pollutants Description SPC Modulo Thermostat Specifi cations Scope of Supply Installation SPC Modulo Installation Sample Wiring Setup... -
Page 3: Safety Instructions
IOM 81, Issue 2 - Modulo Thermostat 1. Safety instructions 1.1 EC-Conformity By affi xing the CE mark to the unit the manufacturer declares that SPC Modulo Thermostat conforms to the following relevant safety regulations: • EU low voltage directive 2014/35/EU •... -
Page 4: Changes To The Unit
IOM 81, Issue 2 - Modulo Thermostat 1.3 Changes to the Unit • Changes, additions to or conversion of the unit • Any parts of the unit or accessories that are are not permitted without written permission not in perfect condition must be exchanged from the manufacturer. -
Page 5: Description Spc Modulo Thermostat
IOM 81, Issue 2 - Modulo Thermostat 2. Description SPC Modulo Thermostat 2.1 Specifi cations Housing 2-part, ABS plastic 75 mm x 95 mm x 30 mm Glass front 95mm Display Capacitive touch panel Colour display with 240x320 dots 2.8 inches (7 cm) diagonal... -
Page 6: Scope Of Supply
IOM 81, Issue 2 - Modulo Thermostat Electrical specifi cations: Power supply 24VAC or 24VDC +/- 10% SELV Power consumption max. 2,5 W Degree of protection IP20 Protection class Max. cable length 0-10V Signal < 30m Permissible Ambient Conditions during operation 0 °C - 50 °C, no moisture condensation permitted... -
Page 7: Installation
IOM 81, Issue 2 - Modulo Thermostat 3. Installation 3.1 SPC Modulo Installation Mount the unit at a suitable location. Pay attention to suitable environmental conditions. Direct sunlight, sources of heat and cold, e.g. radiators and windows must be avoided. - Page 8 IOM 81, Issue 2 - Modulo Thermostat Unscrew the screw, remove the cable cover and connect the electric as described. Refi t the base and fasten with screw. Switch on mains voltage and place SPC Modulo in operation. Never remove front cover while Modulo is connected to power.
-
Page 9: Sample Wiring
Install device Install the device as described (See “Sample wiring”). A wiring diagram will be supplied with the heating unit that the Modulo is intended to control. This shows the wiring required between the Modulo and the heater. Set Functions Assign a switching output to the respective function via the “Expert”... -
Page 10: Operation
IOM 81, Issue 2 - Modulo Thermostat 5. Operation 5.1 Overview of Temperatures & Humidity It displays room temperature and humidity, If there is no activity for 60 sec, the device is automatically switched to the overview. Room Icon Room Humidity By selecting the room icon Relative humidity. -
Page 11: Menu
IOM 81, Issue 2 - Modulo Thermostat 5.3 Menu Overview > Operating Mode > Menu Timer Holiday Setting of individual Sets the duration heating and cooling times and temperature for for each day of the week a longer absence. including a copy function for following days. - Page 12 IOM 81, Issue 2 - Modulo Thermostat Step 1 Use the arrow keys to select the desired day. Step 2 Select the fi rst heating mode (normal) - move the index fi nger over the desired length of time. The selected period will be coloured after selecting the colour of the operating mode (normal = orange).
-
Page 13: Expert Menu
IOM 81, Issue 2 - Modulo Thermostat 5.5 Expert Menu Overview > Operating Mode > Main Menu > Expert Date & Time Sets time and date and Select Language automatic changeover to local standard time Sets the device language. (summer/winter). -
Page 14: Settings Functions
IOM 81, Issue 2 - Modulo Thermostat 5.7 Settings Functions Overview > Operating Mode > Main Menu > Expert > Settings > Functions Thermostat Overview > Operating mode > Menu > Expert > Settings > Functions > Thermostat Hysteresis Heating hysteresis of the... -
Page 15: Fault Finding
Isolate the power again and then remove the front from the Modulo thermostat, replace the front and then reconnect the power. Under no circumstances remove the front cover while the thermostat is powered - this may cause... -
Page 16: Appendix
IOM 81, Issue 2 - Modulo Thermostat 7. Appendix 1 7.1 Setting Up Menu Lock Expert Menu lock Step 1 Step 2 Select language To set up the menu Click on the ‘yes’ icon. Protect settings Date & Time lock, go into the expert with a password section. -
Page 17: Setting Up Interface Lock
IOM 81, Issue 2 - Modulo Thermostat 7.2 Setting Up Interface Lock Expert Settings Step 2 Step 1 Select language Functions Click on ‘interface mode’. To set up the interface Date & Time Location lock, go into the expert section. Click on ‘settings’. - Page 18 Subject as a basic principle to errors and technical changes. Date and time of installation: Name of installation company: Space for notes: SPC House Evington Valley Road Leicester LE5 5LU T: 0116 249 0044 E: spc@spc-hvac.co.uk spc-hvac.co.uk IOM 81, Issue 2 - Modulo Thermostat...
