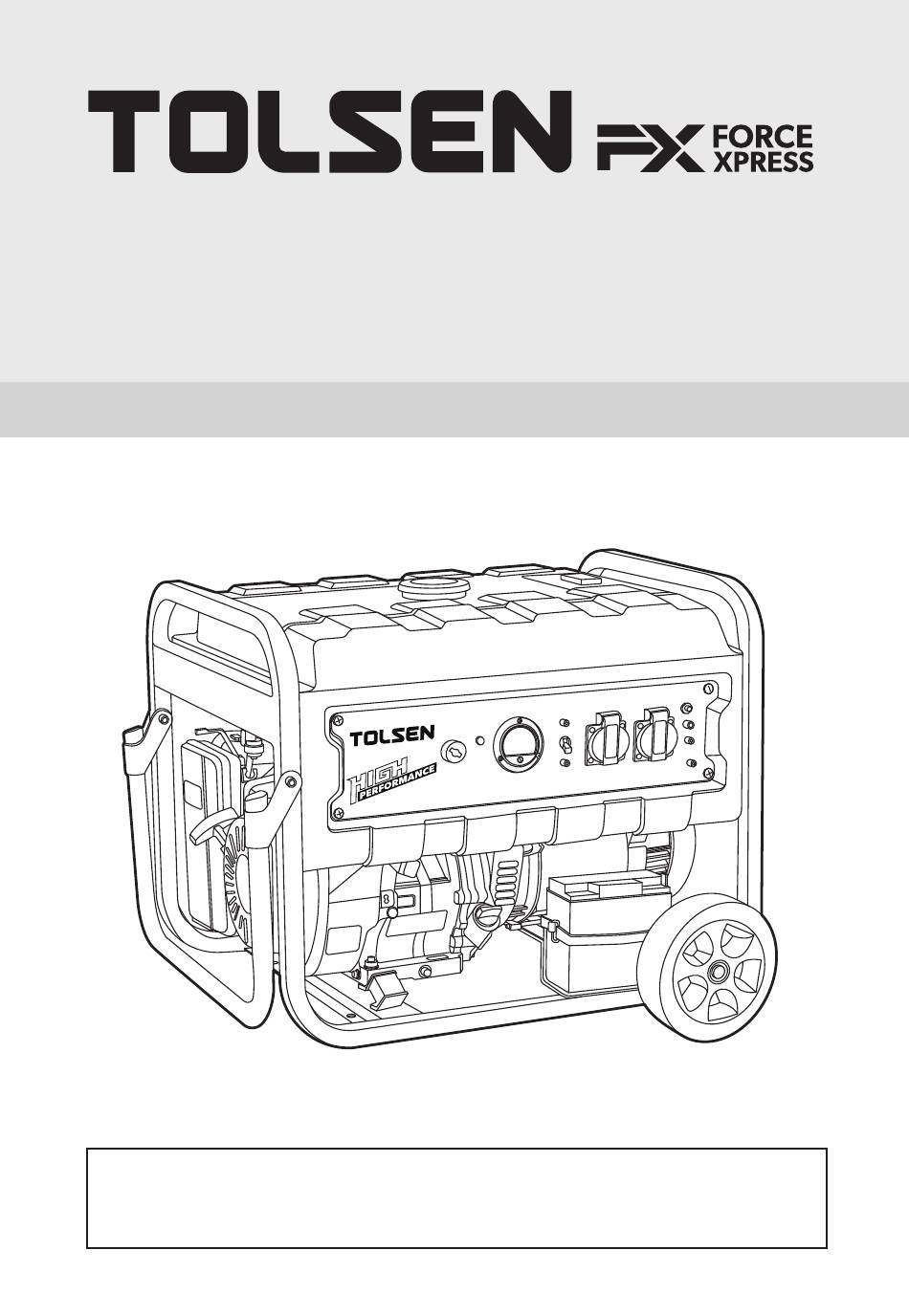

- Page 1 79991/79992/79993 GASOLINE GENERATOR INSTRUCTION MANUAL SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.
-
Page 2: Important Safety Information
SAFETY IMPORTANT SAFETY INFORMATION SAVE THESE INSTRUCTIONS This manual contains important instructions that should be followed during installation and maintenance of the Generator and any batteries. Set up precautions 1. This unit is to be installed so that access is restricted to only qualified service personnel who have been instructed of the reasons for the restrictions applied to the location and about any precautions that must be taken. - Page 3 SAFETY 2. Never use a generator indoors, including in garages, basements, crawlspaces and sheds. Opening doors and windows or using fans will NOT prevent carbon monoxide build up in the home. 3. When using generators, keep them outdoors and far away from open doors, windows, and vents to avoid toxic levels of carbon monoxide from building up indoors.
- Page 4 27. Use only accessories that are recommended by tolsen Tools for your model. Accessories that may be suitable for one piece of equipment may become hazardous when used on another piece of equipment.
-
Page 5: Service Precautions
6. Wear ANSI-approved safety goggles, heavy-duty work gloves, and dust mask/respirator during service. 7. Maintain labels and nameplates on the equipment. These carry important information. If unreadable or missing, contact tolsen Tools for a replacement. 8. Have the equipment serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the equipment is maintained. -
Page 6: Specifications
SPECIFICATIONS FUNCTIONAL DESCRIPTION ITEM No.:79991( GS /CE) 230 VAC, 50 Hz, 3000W, 1 Phase; 12 VDC 8.3 A; 2800 Running Watts; Output 3000 Maximum Starting Watts Generator 2 x VDE PLUG (Earthing); 1 x 12 V DC Connection terminal Receptacles... -
Page 7: Components And Controls
SETUP COMPONENTS AND CONTROLS Power switch (79991 None) Fuel cap Low oil indicator Frame Voltmeter Circuit breaker Choke Fuel valve Overload reset button 12VDC receptacle Air filter Ground terminals Starter handle 230VAC receptacle Foldable handle (79991 None) The following are descriptions of the controls on the power panel. Your Generator has sockets to power your products with circuit breakers to protect the voltage flow. -
Page 8: Initial Tool Set Up/Assembly
SETUP INITIAL TOOL SET UP/ASSEMBLY Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. TO PREVENT SERIOUS INJURY: Operate only with proper spark arrestor installed. Operation of this equipment may create sparks that can start fires around dry vegetation. - Page 9 SETUP Operating Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Inspect tool before use, looking for damaged, loose, and missing parts. If any problems are found, do not use tool until repaired. Generator Pre-Start Checks Inspect engine and equipment, looking for damaged, loose, and missing parts before set up and starting.
-
Page 10: Using The Generator
SETUP Using the Generator Before Starting the Generator Engine Before starting the engine: a. Follow the Set Up Instructions to prepare the Generator. b. Unplug all loads from the Generator. c. Inspect the Generator and engine. d. Fill the engine with the proper amount and type of both stabilizer-treated fuel and oil. Basic Generator Use Procedure - See following pages for specific instructions 1. -
Page 11: Starting The Engine
OPERATING INSTRUCTIONS Starting the Engine 1. To start a cold engine, move the Choke to the 2. Open the Fuel Valve START position. To restart a warm engine, leave the Choke in the RUN position. 3. urn the Engine Switch to ON. 4. -
Page 12: Connecting Electrical Loads
OPERATING INSTRUCTIONS Connecting Electrical Loads Familiarize yourself with the engine controls, power panel and how to start the engine before using the Generator. Calculate the wattage of the products you will use with the Generator and verify that the Generator can handle the total load. Connect only properly wired plugs to the Generator. -
Page 13: User Maintenance Instructions
OPERATING INSTRUCTIONS User-Maintenance Instructions Procedures not specifically explained in this manual must be performed only by a qualified technician. TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn the Power Switch of the Generator to its “OFF” position, wait for the engine to cool, and disconnect the spark plug cap before performing any inspection, maintenance, or cleaning procedures. -
Page 14: Checking And Filling Fuel
OPERATING INSTRUCTIONS Checking and Filling Fuel TO PREVENT SERIOUS INJURY FROM FIRE: Fill the fuel tank in a well-ventilated area away from ignition sources. If the engine is hot from use, shut the engine off and wait for it to cool before adding fuel. Do not smoke. 1. -
Page 15: Air Filter Element Maintenance
OPERATING INSTRUCTIONS MAINTENANCE Air Filter Element Maintenance 1. Remove the air filter cover and the air filter elements and check for dirt. 2. Install the cleaned filter. Secure the Air Cleaner Cover before use. Spark Plug Maintenance 1. Disconnect spark plug cap from end of plug. Clean out debris from around spark plug. - Page 16 OPERATING INSTRUCTIONS 3. LUBRICATION: a. Change engine oil. b. Clean out area around spark plug. Remove spark plug and pour one tablespoon of engine oil into cylinder through spark plug hole. c. Replace spark plug, but leave spark plug cap disconnected. d. Pull Starter Handle to distribute oil in cylinder. Stop a er one or two revolutions when you feel the piston start the compression stroke (when you start to feel resistance).
-
Page 17: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING problem possible Causes probable Solutions Engine will not start FUEL RELATED: 1. Fill fuel tank with fresh 87+ octane stabilizer treated FUEL RELATED: 1. No fuel in tank or fuel unleaded gasoline and open fuel valve. Do not use valve closed. - Page 18 TROUBLESHOOTING problem possible Causes probable Solutions Engine stops 1. Dirty air filter. 1. Clean or replace element. when under 2. Engine running cold. 2. Allow engine to warm up prior to operating equipment. heavy load Engine misfires 1. Spark plug cap loose. 1.
-
Page 19: Assembly Diagram
ASSEMBLY DIAGRAM ASSEMBLY DIAGRAM & PARTS LIST... -
Page 20: Parts List
PARTS LIST Description Description Head subassembly,cylinder Ring,the first Ring,the second Gasket,cylinder head Ring set,oil Cover subassembly,cylinder head Gasket,cylinder head cover Camsha assy. Valve,intake Tube,breather Bolt subassembly,cylinder head Valve,exhaust Spring,valve Tube,breather Retainer,exhaust valve Tube,breather Ratator,valve Guide,seal Bolt,cylinder head Plug,spark Retainer,valve spring Li er,valve Crankcase assy. - Page 21 PARTS LIST Description Description Nut(m8) Support,engine frame shock Seat,engine frame shock absorption pipe,exhaust Bolt Bolt Plate,inner cover guide Bolt Seat,panel(black) Tank,fuel(yellow) sleeve,fuel tank bubber panel subassembly,control Case,panel rear(black) Bush bolt Washer Bolt Screw Washer Leveler assy,oil(black) screw Washer Strainer,fuel Cover,fuel tank(black) Switch subassembly Socket subassembly,power supply cock assy,fuel...
- Page 24 TOLSEN TOOLS CO.,LIMITED www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. MADE IN CHINA...
