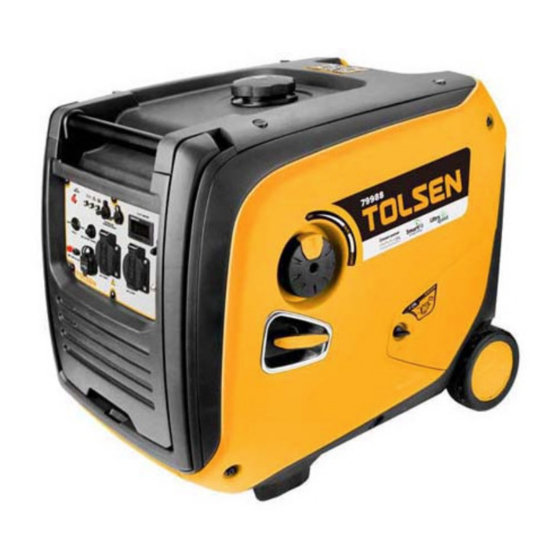

Quiet inverter generator 4000w
Hide thumbs
Table of Contents

Advertisement

Quick Links

79988
QUIET INVERTER GENERATOR
INSTRUCTION MANUAL
SAVE THIS MANUAL !
You will need this manual for safety instructions, operating procedures and warranty.
Put it and the original sales receipt in a safe dry place for future reference.
4000W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 79988 and is the answer not in the manual?

Questions and answers

Related Manuals for TOLSEN TOOLS 79988

Summary of Contents for TOLSEN TOOLS 79988

  • Page 1 79988 QUIET INVERTER GENERATOR 4000W INSTRUCTION MANUAL SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.

  • Page 2: Specifications

    SPECIFICATIONS SPECIFICATIONS Item No.:79988(CE) 230 VAC, 50 Hz, 4000W, 1 Phase; Output 12 VDC 8.3 A; 3500 Running Watts; 4000 Generator Maximum Starting Watts 2x VDE PLUG (Earthing); Receptacles 1 x 12 V DC Connection terminal 2XUSB Point port(5v 1A/2.1A)

  • Page 3: Symbol Definitions

    SPECIFICATIONS Symbol Definitions Symbol property or Statement Revolutions Per Minute Horsepower WARNING marking concerning Risk of Eye Injury. Wear ANSI-approved safety goggles with side shields. Read the manual before set -up and/or use. WARNING marking concerning Risk of Hearing Loss. Wear hearing protection.

  • Page 4: Important Safety Information

    SAFETY IMPORTANT SAFETY INFORMATION Setup precautions 1. Gasoline fuel and fumes are flammable, and potentially explosive. Use proper fuel storage and handling procedures. Do not store fuel or other flammable materials nearby. 2. Have multiple ABC class fire extinguishers nearby. 3.
  • Page 5 SAFETY 2. Never use a generator indoors, including in garages, basements, crawl spaces and sheds. Opening doors and windows or using fans will NOT prevent carbon monoxide build up in the home. 3. When using generators, keep them outdoors and far away from open doors, windows, and vents to avoid toxic levels of carbon monoxide from building up indoors.
  • Page 6 SAFETY 24. Keep access doors on enclosures locked. 25. Wear safety glasses and hearing protection during use. 26. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to a heart pacemaker could cause pacemaker interference or pacemaker failure. Caution is necessary when near the engine’s magneto or recoil starter.

  • Page 7: Service Precautions

    SAFETY Parallel Kit precautions TO PREVENT SERIOUS INJURY, DEATH, AND GENERATOR AND/OR EQUIPMENT DAMAGE FROM ELECTRIC SHOCK AND FIRE: 1. Follow parallel Kit instructions provided with Kit for connection and use of a parallel Kit. 2. Connect only an approved Predator Parallel Kit (sold separately) to the Parallel Kit Terminals. 3.
  • Page 8 SAFETY Set up READ THE ENTIRE IMPORTANT SAFETY INFORMATION Section at the beginning of this manual including all text under subheadings therein before set up or use of this product. TO PREVENT SERIOUS INJURY AND FIRE: Operate only with proper spark arrestor installed. Operation of this equipment may create sparks that can start fires around dry vegetation.

  • Page 9: Components And Controls

    SETUP COMPONENTS AND CONTROLS Fuel cap with vent Combination switch Foldable Spark plug handle access cover Starter handle Parallel Overload Digital LCD Circuit connection Low oil Overload Output reset button screen breaker Energy saving switch 12VDC 12VDC breaker 230VAC Ground receptacle reset button Two usb port...

  • Page 10: Operation

    SETUP OPERATION READ the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. PRE-Start Checks Inspect Engine and Generator looking for damaged, loose, and missing parts before set up and starting. If any problems are found, do not use equipment until fixed properly.

  • Page 11: Starting The Engine

    OPERATING INSTRUCTIONS Starting the Engine Before Starting the Engine a. inspect the generator and engine. b. Disconnect all electrical loads from the generator. c. Fill the engine with the proper amount and type of both stabilizer-treated unleaded gasoline and oil. Manual Start 1.
  • Page 12 OPERATING INSTRUCTIONS 4. Allow the engine to run for several seconds. Wait for the output light to light up. 5. Then, move the combination switch slowly to its run position. Move solwly NOTE: Moving the Combination Switch too fast could stall the Engine. IMPORTANT: Allow the Engine to run at no load for five minutes with no load a er each start-up so that the Engine can stabilize.
  • Page 13 OPERATING INSTRUCTIONS Connecting 230VAC Loads to the Generator Overload Light NOTE: The OVERLOAD light may turn on for a few seconds as a large device starts up. This is normal for loads approaching the capacity of this Generator. 1. The total combined load through the outlet on the Generator must not exceed the running power of the unit. 2.

  • Page 14: Stopping The Engine

    OPERATING INSTRUCTIONS Stopping the Engine To stop the Engine in an emergency, turn the Combination Switch off. Under normal conditions, use the following procedure to shut off the Generator: 1. Turn all electrical load devices off and unplug them from the Generator. 2.

  • Page 15: Cleaning, Maintenance, And Lubrication Schedule

    OPERATING INSTRUCTIONS MAINTENANCE TO PREVENT SERIOUS INJURY FROM ACCIDENTAL STARTING: Turn the Combination Switch of the equipment to its “OFF” position, wait for the engine to cool, and disconnect the spark plug cap before performing any inspection, maintenance, or cleaning procedures. TO PREVENT SERIOUS INJURY FROM EQUIPMENT FAILURE: Do not use damaged equipment.
  • Page 16 OPERATING INSTRUCTIONS Checking and Filling Fuel WARNING! TO PREVENT SERIOUS INJURY FROM FIRE: Fill the fuel tank in a well-ventilated area away from ignition sources. If the engine is hot from use, shut the engine Off and wait for it to cool before adding fuel. Do not smoke. 1.

  • Page 17: Air Filter Element Maintenance

    OPERATING INSTRUCTIONS AIR Filter Element Maintenance 1. Remove the Access Panel on the right side of the Generator. 2. Remove the Air Filter Cover and the air filter elements and check for dirt. Clean as described below. Air filter cover 3.

  • Page 18: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING problem possible Causes probable Solutions 1. Check cap and wire connections. Engine misfires 1. Spark plug cap loose. 2. Incorrect spark plug gap or 2. Re-gap or replace spark plug. damaged spark plug. 3. Replace spark plug cap. 3.
  • Page 19 ASSEMBLY DIAGRAM & PARTS LIST ASSEMBLY DIAGRAM & PARTS LIST A-ENGINE NO. Description Fixing holder,Engine Hexagonal flange bolt Fixing holder,Engine Engine assy. Hexagonal nut Muffler assy. Hexagonal flange bolt Muffler tail cover Cross recessed pan head self threading screw Air guide sleeve,Muffler Baffle B1-FRAME ASSY NO.
  • Page 20 ASSEMBLY DIAGRAM & PARTS LIST B2-FRAME ASSY NO. Description Square nut Baseplate assy. Ornament shell Shock seat assy.,Frame Hexagonal flange bolt Hexagonal flange nut C-OIL TANK ASSY NO. Description Oil cap assy. Oil filter assy. Oil tank assy. Hexagonal flange bolt Gasket,Oil tank Bushing Shock rubber pad,Oil tank...
  • Page 21 ASSEMBLY DIAGRAM & PARTS LIST D-ORNAMENT SHELL NO. Description Description Ornament rubber sleeve Right cover Hexagonal step bolt Maintenance cover Oil inlet rubber sleeve Knob assy. Oil window Stop piece assy. Rubber pad,Oil window Steel Hexagonal lock nut Cover assy. Cross recessed pan head screw Ornament rubber sleeve Knob assy.
  • Page 22 ASSEMBLY DIAGRAM & PARTS LIST E-BATTERY ASSY NO. Description Positive wire assy. Hexagonal flange nut Battery assy. Hexagonal bolt Battery band Negative wire assy. Hexagonal flange bolt F-TOOLS NO. Description Plastic bag Extension bar Sleeve Screwdriver Tool bag...
