Blaupunkt Manhattan CD148 Owner's Record

Blaupunkt Manhattan CD148 Owner's Record

Cd receiver with codem iii-us tuner
Hide thumbs
Table of Contents

Advertisement

Quick Links

osch Group

Advertisement

Table of Contents
loading

Related Manuals for Blaupunkt Manhattan CD148

Summary of Contents for Blaupunkt Manhattan CD148

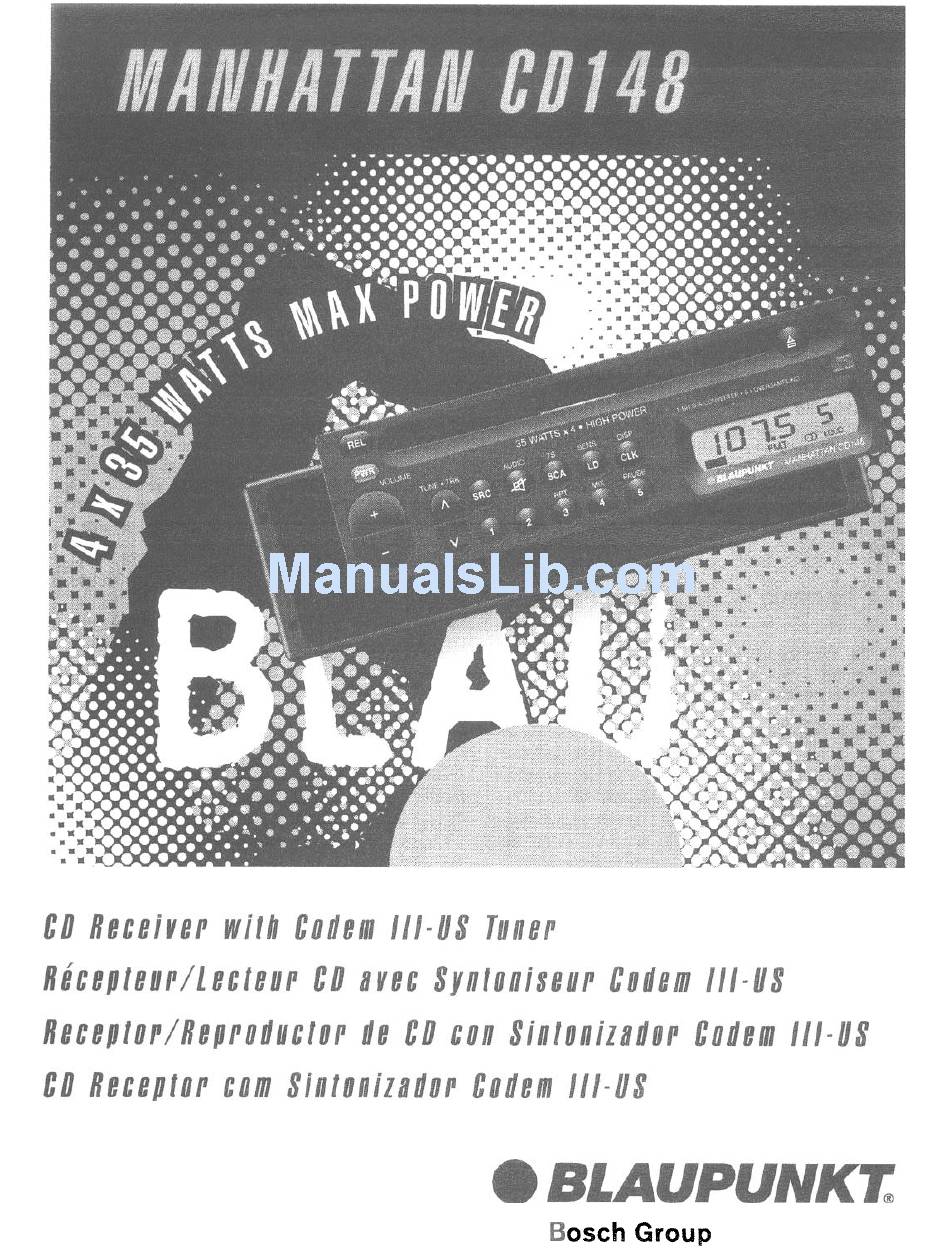

  • Page 1 osch Group...

  • Page 2: Owner's Record

    The model and warranty numbers are located on the top of the unit. Record the warranty (serial) number in the space provided below. Refer to these numbers whenever you call upon your Blaupunkt dealer regarding this product. Warranty Number ’...

  • Page 3: Table Of Contents

    Table of Contents English FCC Warning ... 2 Owner’s Record..2 Features ... 4 Precautions ... -4 Detachable Face ..5 Electrical Connections and Installation ... 6 Installation ..8 Maintenance ... 10 Specifications ... 11 Location of Controls ... 12 Instructions-General Operation ...

  • Page 4: Features

    1 ENGLISH Features Congratulations on your purchase of this Blaupunkt CD Receiver. Its Codem III-US FM/AM Tuner and 3-Beam Laser/Anti-Vibration & Anti-Shock CD Player mechanism provide the ultimate in sound reproduction. Its high-power amplifier and 4-Channel preamp output provide you with tremendous system configuration flexibility.

  • Page 5: Detachable Face

    Detachable Face Detaching 81 Attaching the Face: The face of this unit can be detached and taken with you to prevent it from being stolen. Detaching the Face: Press the REL (Release) Button and detach the face by gently pulling it off as illustrated. Note: Do not pull it straight out from the chassis.

  • Page 6: Electrical Connections And Installation

    You can connect the 2 RCA preamp outputs to multiple external amplifiers and power multiple speakers or speaker systems through the amplifiers. (Blaupunkt amplifiers and speakers available separately). To add front preamp output, purchase Blaupunkt part 8634494218. (See page 11) You can use either or both of these two methods.
  • Page 7 DON’T connect two speakers to a single pair of speaker leads (“in parallel”) unless both speakers each have at least 8 ohms impedance. DON’T connect the left and right speaker leads to each other or to the same speakers. DON’T connect the front and rear speaker leads to each other or to the same speakers. DON’T connect the negative speaker leads to each other.
  • Page 8 The illustration below shows a typical installation, however, you may need to adjust the installation, depending on the unit. If you have questions or need additional installation hardware, consult your Blaupunkt dealer. Make sure the unit is firmly anchored (preferably at both front and back) and does not vibrate.
  • Page 9 You may have difficulty mounting this unit in some Japanese cars that have IS0 mounting features (side-bracket mounting systems). In this case, consult your Blaupunkt dealer. Run a blade along the slits on the back of the front trim ring, unscrew the two side screws, and separate it from the unit.

  • Page 10: Maintenance

    Maintenance Removing the Unit Use the Release Keys as shown below. Keep them in a safe place in case you need them in the future. Fuse Replacement When replacing the fuse, be sure to use one with the correct amperage, which will be stated on the fuse case.

  • Page 11: Specifications

    Specifications Audio Power Specifications Power Output and Total Harmonic Distortion: 13.5 watts per channel minimum continuous average output into 4 ohms, 4 channels driven, from 30-15,000 Hz with no more than 1% total harmonic distortion. Other Specifications Tuner Tuning Range: Intermediate Frequency: FM Mono Sensitivity: Seek lo sensitivity:...

  • Page 12: Location Of Controls

    Location of Controls REL (Release) Button PWR (Power) Button Source (and Radio Band) Select Mute/Audio Button SCA (Scan) TS (Travel Store) LD (Loudness)/ SENS (Tuning Sensitivity) CLK/Display Change Disc Insertion Slot CD Eject + Button Volume + Bass + Treble ’...

  • Page 13: Audio Operation

    Ignition-Off Clock Recall Any button press while ignition off displays time for about 8 seconds. Ignition-On Unit lights up and clock is displayed. Release for Detachable Faceplate Push REL to detach face. Already-inserted CD remains in unit. Current settings and source mode are stored.

  • Page 14: Radio Operation

    Bass, Treble, Balance and Fade Press Mute/AUDIO for more than l/2 second to access Bass. Subsequent presses access Treble, Balance and Fade modes. Bass Adjust from +7 to -7 at 2 dB/step using + to increase bass, - to decrease. Treble Adjust from +7 to -7 at 2 dB/step using + to increase treble, - to decrease.
  • Page 15 The unit gradually switches between mono to stereo automatically. Manual Tuning Press A or V for more than l/2 second and frequency will go one channel/step in direction pressed. Press and hold causes continuous manual tuning. Unit returns to seek tuning mode after 4 seconds or after storing a station on a preset.

  • Page 16: Auxiliary Input Jack

    CD play does not start. The sound skips due to vibration. the above SOkdiOns d0 not help lo improve the situation. consult your nearest Blaupunkt dealer or in the United Stales call 1-800-266-2526. Cause/Solution Adjust the volume with the + button.
  • Page 17 German Headquarters: Blaupunkt-Werke GmbH Postfach 77 77 77 D-31 132 Hildesheim Germany Robert Bosch Corporation Sales Group - Blaupunkt Division 2800 South 25th Avenue, Broadview, Illinois 60153 I-800-950-BLAU Made in Malaysia Fabrique en Malasie Hecho en Malasia Fabricado en Malaysia...
