Electric Multi Sharpener
Instructions
10235
v1.0: 28/10/15
IMPORTANT NOTES for your Electric Multi Sharpener
Please read these instructions and retain for future reference

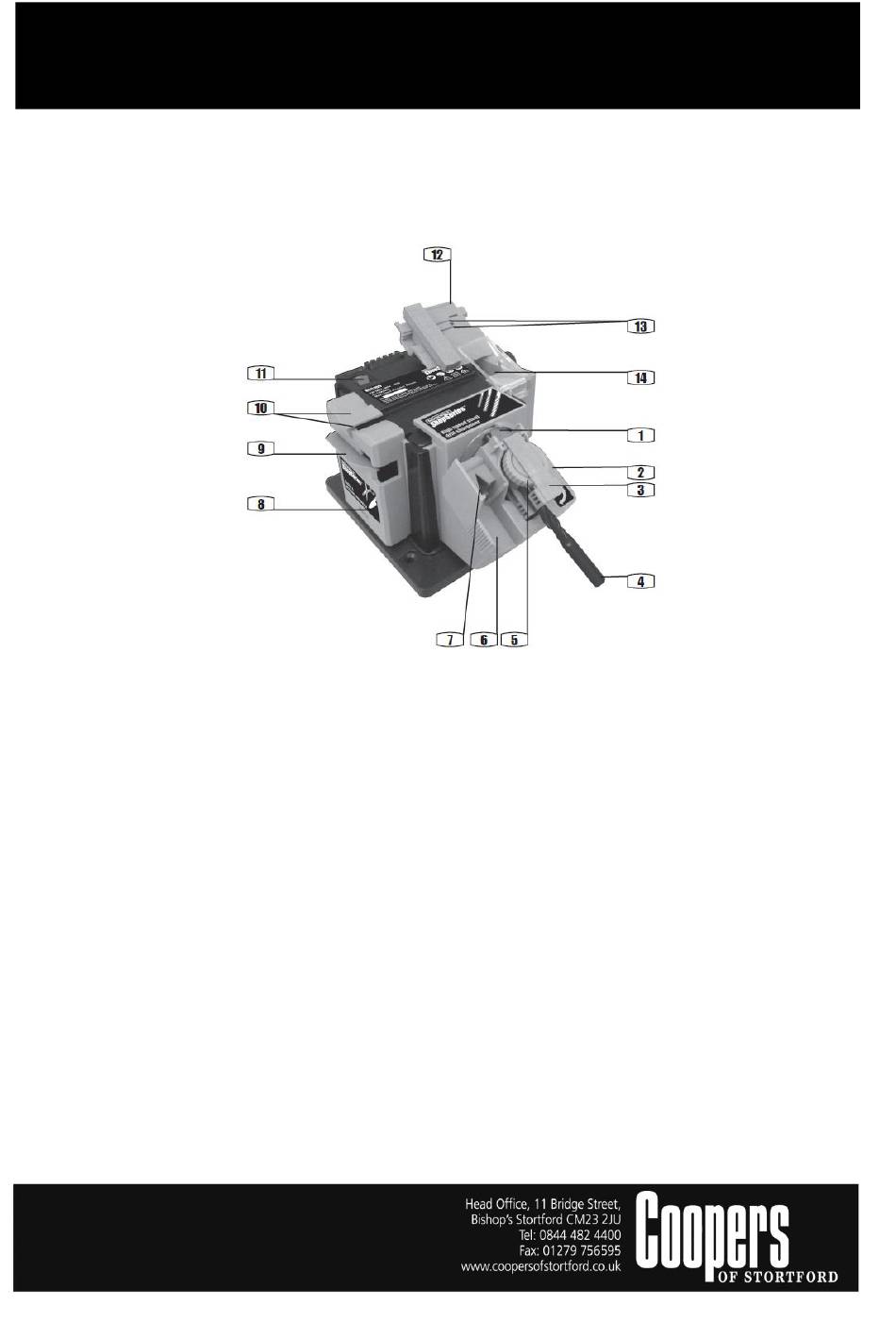

1, Grinding wheel
2, HSS drill sharpener
3, Clamp
4, HSS drill bit
5, Clamping ring
6, Setting slot
7, V guide
8, Knife and scissor sharpener
9, Scissor sharpening slot
10, Knife sharpening slot
11, On/off switch
12, Chisel & plane sharpener
13, Integral magnet
14, Protective shield
15, Angle adjustable knob (see fig P)
16, Chisel guide (see fig T)
number
Advertisement
Related Manuals for Coopers of Stortford 10235
Summary of Contents for Coopers of Stortford 10235
- Page 1 Electric Multi Sharpener Instructions 10235 v1.0: 28/10/15 IMPORTANT NOTES for your Electric Multi Sharpener Please read these instructions and retain for future reference 1, Grinding wheel 2, HSS drill sharpener 3, Clamp 4, HSS drill bit 5, Clamping ring 6, Setting slot...
- Page 2 Electric Multi Sharpener Instructions 10235 v1.0: 28/10/15 When using electrical appliances, basic safety precautions should always be followed: To protect against electric shock, do not immerse cord, plug or appliance in water or any other liquid. Unplug from outlet when not in use and before cleaning.
- Page 3 Electric Multi Sharpener Instructions 10235 v1.0: 28/10/15 Do not overreach whilst operating equipment, keep proper footing and balance at all times. Do not use the tool if the switch does not turn it on and off. Have your tool repaired by a qualified person. This electric tool complies with the relevant safety rules.
- Page 4 Electric Multi Sharpener Instructions 10235 v1.0: 28/10/15 number...
- Page 5 Electric Multi Sharpener Instructions 10235 v1.0: 28/10/15 number...
- Page 6 Electric Multi Sharpener Instructions 10235 v1.0: 28/10/15 number...
- Page 7 Electric Multi Sharpener Instructions 10235 v1.0: 28/10/15 number...
- Page 8 Electric Multi Sharpener Instructions 10235 v1.0: 28/10/15 Before first use This Electric Sharpener includes three working modules: HSS drill sharpener module – sharpens all high speed drill bits from 0.3cm – 1cm. Knife and scissor sharpener module – sharpens all straight edged knives and scissors.
- Page 9 Electric Multi Sharpener Instructions 10235 v1.0: 28/10/15 Check that the leading edge of both flutes are equally sharp. They should meet exactly in the middle (see fig J1). Sharpening knives Ensure that the unit is switched off at the main switch and plug socket.
-
Page 10: Technical Data
Electric Multi Sharpener Instructions 10235 v1.0: 28/10/15 Slide the blade and plate (with light steady pressure) back and forth across the grinding wheel in a continuous motion. Do not hold the blade stationary as this will cause irregular sharpening. Gradually adjust the blade down the plate and make sure the bevelled edge and tip are evenly sharp. -
Page 11: Maintenance
Electric Multi Sharpener Instructions 10235 v1.0: 28/10/15 MAINTENANCE • Keep all working controls and air vents free from of dust, dirt and debris. • Your power tool requires no lubrication or maintenance. • There are no serviceable parts in your power tool. - Page 12 Electric Multi Sharpener Instructions 10235 v1.0: 28/10/15 • The appliance should not be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
