Atlas Copco TEX 419 Quick Manual

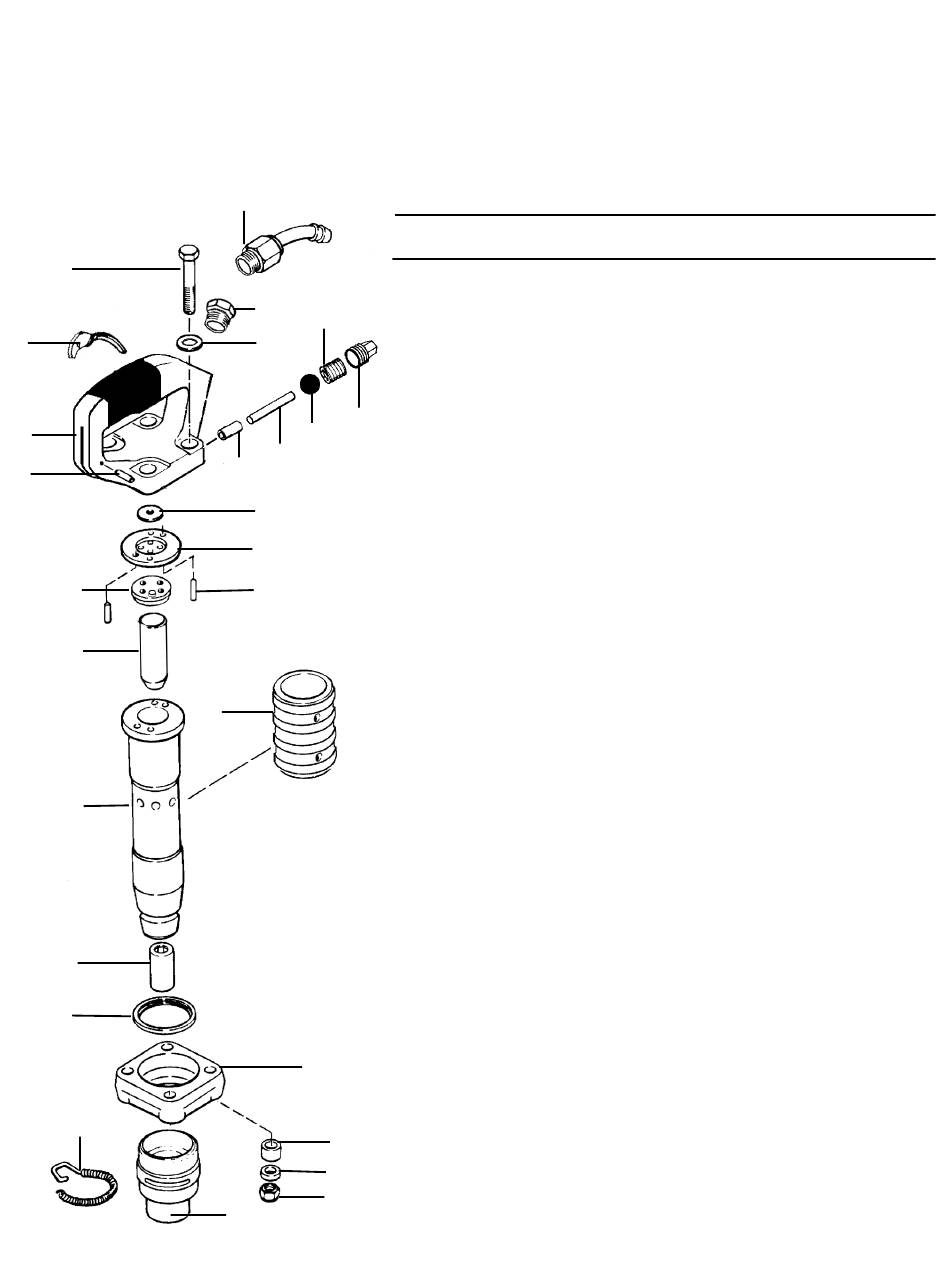

CHIPPING HAMMER
19
17
11
4
5
3
1
44
2
34
35
36
16
19B
15
13
9
10
7
6
8
25
18
20
22
23
28
INDEX PART
1 9245-9983-61 BARREL 3"
2 9245-9963-10 LOCK RING BUMPER
3 9245-9963-30 PISTON 3"
4 9245-9983-64 FULCRUM PIN
5 9245-9963-60 BUMPER VALVE SEAT
6 9245-9983-65 VALVE SPACER
7 9245-9963-50 VALVE PLATE
8 9245-9964-25 VALVE DOWEL (2)
9 9245-9983-67 PUSH PIN
10 9245-9967-00 PUSH PIN BUSHING
11 9245-9983-68 HANDLE BARE
NS 9245-9983-69 HANDLE COMPLETE
13 9245-9964-80 THROTTLE VALVE BALL
15 9245-9965-40 THROTTLE VALVE PLUG
16 9245-9965-30 THROTTLE VALVE SPRING
17 9245-9966-20 TRIGGER
18 9245-9983-70 FLANGE
19 9245-9983-71 HANDLE BOLT ( 4 )
19B 9245-9983-72 SPRING WASHER ( 4 )
20 9245-9983-73 BUMPER WASHER ( 4 )
22 9245-9983-74 HANDLE BOLT SPACER ( 4 )
23 9245-9983-75 HANDLE BOLT NUT ( 4 )
25 9245-9964-40 EXHAUST DEFLECTOR (2pc)
28 9247-9853-50 OVAL COLLAR RETAINER
34 9245-9964-90 RETAINER SPRING
35 9245-9965-00 SWIVEL(7/8 - 24, 1/2" HOSE BARB)
36 9245-9965-20 HANDLE BUSHING
44 9245-9965-80 BUSHING FOR ROUND SHANK (.680")
44 9245-9965-90 BUSHING FOR HEX SHANK (.580")
TEX 319
DESCRIPTION
