Blaupunkt Casablanca CD51 Operating Instructions Manual

Radio / cd
Hide thumbs Also See for Casablanca CD51:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual , Operating Instructions Manual
Radio / CD
Casablanca CD51
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Casablanca CD51 and is the answer not in the manual?

Questions and answers

Related Manuals for Blaupunkt Casablanca CD51

Summary of Contents for Blaupunkt Casablanca CD51

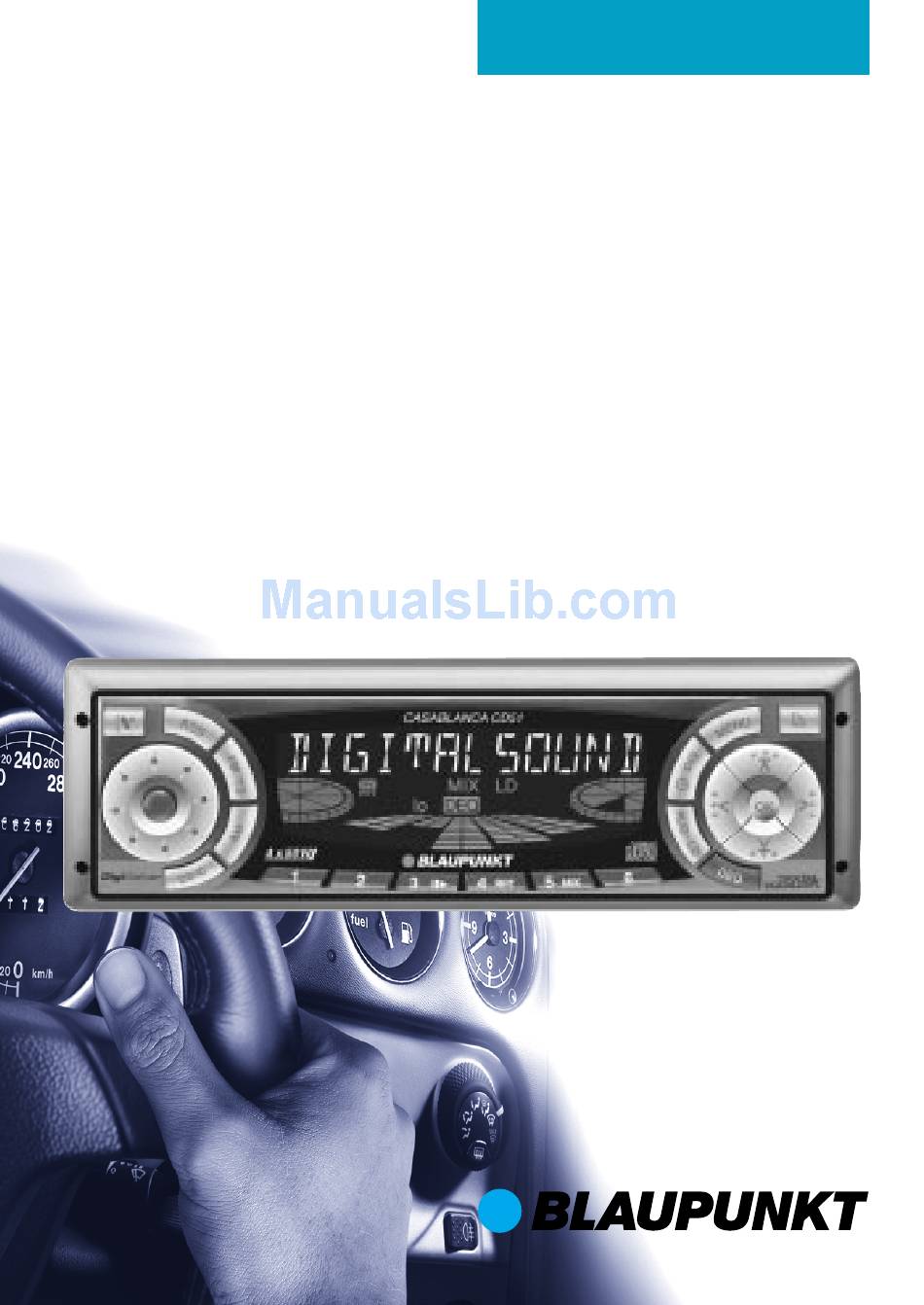

  • Page 1 Radio / CD Casablanca CD51 Operating instructions...
  • Page 3 Button - unlocks the remov- able control panel (release pan- Volume control Button - switches the unit on/off, volume mute RDS button - switches RDS fea- ture on/off (Radio Data System), activate scrolling text in display. FM button (band) - selects FM radio mode and the FM memory levels TS - starts the Travelstore func-...

  • Page 4: Table Of Contents

    Notes and accessories ... 6 Road safety ... 6 Installation ... 6 Accessories ... 6 Removable control panel ... 7 Switching on/off ... 8 Volume adjustment ... 9 Setting the power-on volume ... 9 Mute - instantaneous volume reduction ... 9 Telephone audio / navigation audio ..

  • Page 5: Installation

    Thank you for deciding to purchase a Blaupunkt product. We hope you enjoy using this new piece of equipment. Before using the device, please read these instructions carefully. The Blau- punkt editors are constantly working on making the operating instructions clear- er and easier to understand.

  • Page 6: Removable Control Panel

    As a way of protecting your car radio against theft, the unit is equipped with a removable control panel (flip-release panel). Without this control panel, the car radio is worthless to a thief. Protect your car radio against theft by taking the control panel with you every time you leave your vehicle.
  • Page 7 There are various ways of switching the unit on/off: If the unit is correctly connected to the vehicle’s ignition and it was not switched off using button 3, it will switch on/off simultaneously with the ignition. You can also switch the unit on even if the ignition is off: To do so, press button 3.
  • Page 8 Your Blaupunkt dealer will be able to tell you which navigation systems can be used with your car radio. button : un-...

  • Page 9: Automatic Sound

    You can set the volume level at which the telephone calls and navigation voice output will first be heard. Press the MENU button 8. Keep pressing the til “TEL/NAVI VOL” appears in the display. Set the required volume using the buttons :.

  • Page 10: Radio Mode

    If you are in CD or CD-changer mode: Press the FM/TS 5 or AM ? button to switch to FM or AM radio mode. Keep pressing the CD•C button @ until “RADIO” appears in the display. This unit is equipped with an RDS radio receiver.
  • Page 11 You can configure the radio to only tune into stations with a strong reception or to also tune into those with a weak re- ception. Press the MENU button 8. Keep pressing the til “SENS” appears in the display. button :. Press the The display shows the currently set val- ue for sensitivity.

  • Page 12: Displaying Scrolling Text

    Press the OK button ;. Scanning is stopped and the station that was tuned into last will then continue to be heard. Press the MENU button 8. Keep pressing the til “SCANTIME” appears in the dis- play. Set the required scantime using buttons :.
  • Page 13 To allow scrolling texts to appear in the display again, keep the RDS button 4 pressed until “NAME VAR” appears in the display. When in radio mode, you have the op- tion of continuously displaying the time or continuously displaying the station name or frequency.
  • Page 14 Press one of the arrow buttons : to select the next or previous track. If you press the button or : once, the current track will be heard again from the beginning. To fast forward / rewind, button : pressed Keep the until fast forwarding / rewinding be- gins.
  • Page 15 The car radio allows you to assign names for up to 30 CDs so that you can recognize them more easily. The names can be a maximum of eight characters long. If you try assigning more than 30 names, “FULL” will appear in the display. Listen to the CD you wish to name.
  • Page 16 Note: Information on handling CDs, inserting CDs and operating the CD changer can be found in the operating instructions accompanying your CD changer. Keep pressing the CD•C button @ until “CHANGER” appears in the display. Playback is started using the first CD that the CD changer detects.
  • Page 17 are played randomly before the next CD in the changer is played. Press button 5 MIX > until “MIX OFF” appears briefly in the display and MIX disappears. To briefly play all the tracks on all inserted CDs in ascending order, press the OK button ;...
  • Page 18 button : until Press the “CDC NAME” appears. button :. Press the Keep the MENU button 8 pressed. After four seconds you will hear a beep and “DELETE NAME” appears in the display. Release the MENU button 8. The CD name will be deleted. To return to the menu, press the OK button ;.
  • Page 19 To set the time manually, press the MENU button 8. Keep pressing the til “CLOCKSET” appears in the dis- play. button :. Press the The time appears in the display. The minutes flash on and off and can be adjusted. Set the minutes using the buttons :.

  • Page 20: Audio And Volume Distribution Settings

    You can adjust the audio and volume distribution settings separately for each audio source (radio, CD, CD changer and AUX). Press the AUD / LD button =. “BASS” appears in the display. button : to ad- Press the just the bass. When you have finished making your changes, press the AUD / LD = button.

  • Page 21: Help Adjusting The Equalizer

    If loudness is activated, the bass and treble levels are aurally compensated, i.e. they are increased at lower volume levels. Press the AUD / LD button = for approximately two seconds. LD lights up in the display when loud- ness is switched on. The loudness level can be set in steps ranging from 1 to 6.
  • Page 22 To switch the equalizer on, keep the DEQ button < pressed until DEQ lights up and “EQ ON” briefly appears in the display. To switch the equalizer off, keep the DEQ button < pressed until DEQ disappears and “EQ OFF” briefly appears in the display.
  • Page 23 The spectrometer (level display) briefly provides a symbolic display of the vol- ume, the audio adjustment settings and the equalizer settings whilst you are making your changes. When you are not changing any set- tings, the spectrometer displays the car radio’s output level.

  • Page 24: External Audio Sources

    If you want to connect an external au- dio source, you will need an adapter cable. You can obtain this adapter cable from your authorized Blaupunkt dealer. Press the MENU button 8. “MENU” appears in the display. Keep pressing the til “AUX-IN-1 OFF”...

  • Page 25: Guarantee

    If you wish to enforce a claim un- der the manufacturer guarantee that is provided by Blaupunkt, please send the faulty unit together with the purchase receipt to the Blaupunkt customer serv- ice centre in your country. You can find...
  • Page 26 01 610 39 0 015 762 241 026 130 04 41 800-266 25 28 006 535 054 47 042 175 873 212 Blaupunkt GmbH K7/VKD 8 622 402 724 Fax: 0 51 21 49 40 02 02.525.54.48 014 010 73 20...
