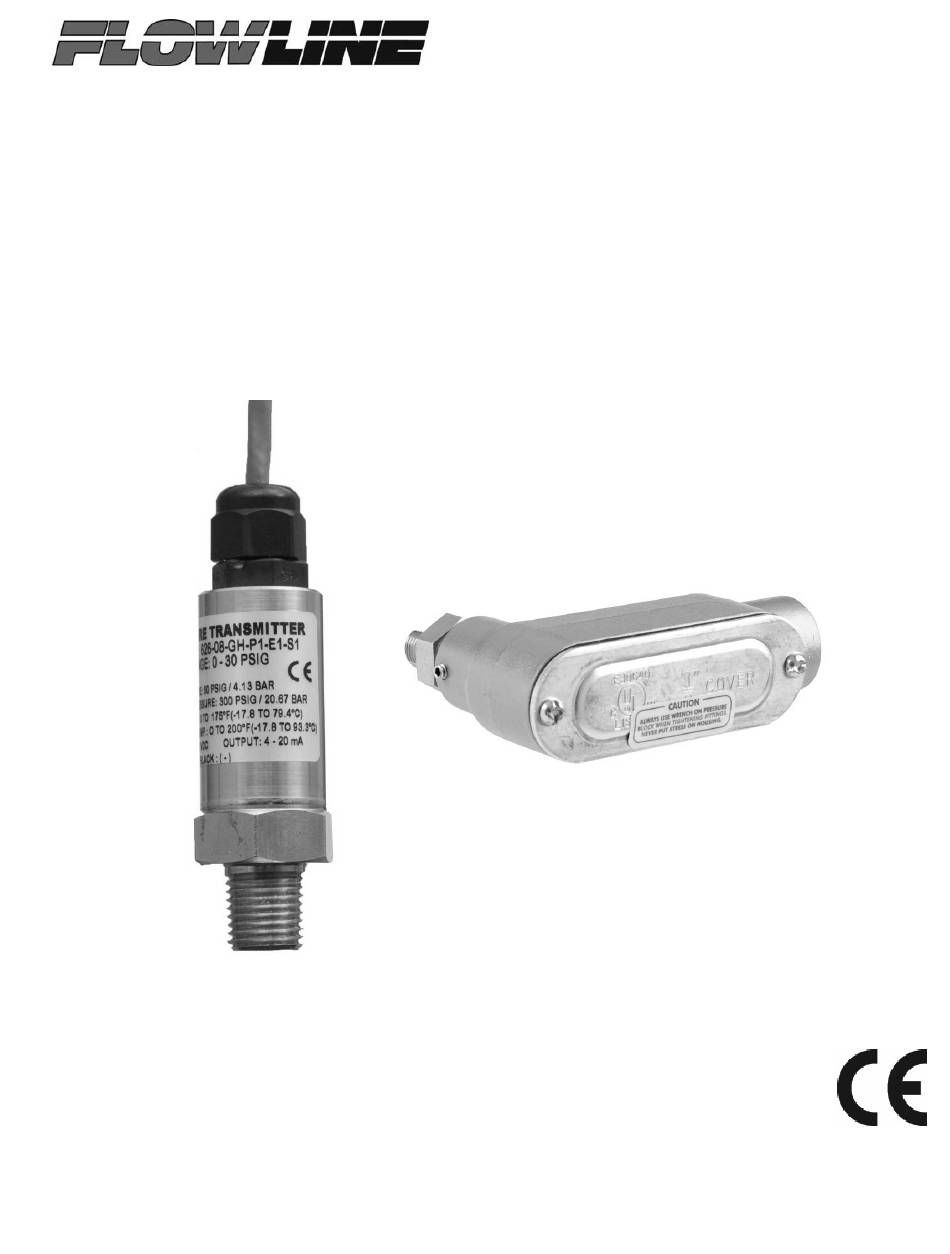

General Purpose External Mount
Cable Series
(LD30‐S_01)
QS301030 Rev C
©2013 Flowline, Inc.
All Rights Reserved
Made in USA
DeltaSpan™
Pressure Level Transmitter
LD30 Series Quick Start
10500 Humbolt Street, Los Alamitos, CA 90720 USA
Tel: 562.598.3015 • Fax: 562.431.8507 • www.flowline.com
Conduit Series
(LD30‐S_11)
1
Advertisement
Table of Contents
Related Manuals for FlowLine DeltaSpan LD30 Series
Summary of Contents for FlowLine DeltaSpan LD30 Series
- Page 1 DeltaSpan™ General Purpose External Mount Pressure Level Transmitter LD30 Series Quick Start Cable Series Conduit Series (LD30‐S_01) (LD30‐S_11) QS301030 Rev C ©2013 Flowline, Inc. All Rights Reserved 10500 Humbolt Street, Los Alamitos, CA 90720 USA Made in USA Tel: 562.598.3015 • Fax: 562.431.8507 • www.flowline.com ...
- Page 2 Welcome to the DeltaSpan™ Quick Start The DeltaSpan™ Quick Start provides basic mounting, setup and use instructions for getting the DeltaSpan™ up and running quickly. If you have a non‐standard installation or setup requirement that is not addressed here, please refer to the DeltaSpan™ Manual or other support documentation located at www.flowline.com. We Do Your Level Best Thank you for purchasing DeltaSpan™. The general purpose external mount pressure level transmitter provides continuous level measurement up to 69’ (21.1m) WC powered by the 4‐20 mA loop. The LD30 Series can be used to accurately measure compatible gases and liquids; full scale accuracy is 0.25%. Designed for industrial environments with a NEMA 4X (IP66) housing, this transmitter resists most effects of shock and vibration. This Quick Start includes everything you’ll need to get the sensor up and running. CAUTION Do not exceed specified supply voltage ratings. Permanent damage not covered by warranty will result. This device is not designed for 120 or 240 volt AC operation. Use only on 13 to 30 VDC. ...
- Page 3 A periodic check of system calibration is suggested. The LD30 transmitters are not field repairable and should be returned if repair is needed. Troubleshooting If you face any issues not addressed in this Quick Start, please refer to the DeltaSpan Manual located on Flowline website at www.flowline.com. Where personal safety or significant property damage can occur due to a spill, the installation must have a redundant backup safety system installed. ...
