8-Way Relay Card (TS1041)
Installation Sheet
Description
An 8-Way Relay Card (TS1041) adds relays to the
Challenger series panels, Intelligent Access Controllers,
Network Access Controllers or to standard DGPs.
In most instances, the TS1041 card adds eight relays.
However, the first TS1041 card connected to a Challenger
series panel provides only seven relays because relay 2 is the
panel's strobe output.
A series of interconnected TS1041 cards can be used to
expand the number of relays (outputs) at the panel's or the
DGP's address, as permitted by the Challenger numbering
system and by practical limitations.
For practicality, the workable limit for a series of physical relays
is 512, which limits the number of 8-way relay controllers to a
total of 64. This is limited to the specification of the Challenger
panel.
Product contents
Quantity Item
1 TS1041 8-Way Relay Card with 10-way cable
2 2-way plug on screw terminal
8 3-way plug on screw terminal
7 M3x10 pan-head Phillips screw
6 PCB support stand off
1 Ring terminal
1 Installation Sheet
Inspect the package and contents for visible damage. If any
components are damaged or missing, do not use the unit;
contact the supplier immediately. If you need to return the unit,
you must ship it in the original box.
Installation
TS1041 cards are mounted on standoffs (supplied) using
M3 x 10 mm pan head screws (supplied) inside a DGP
enclosure or a separate enclosure. The TS1041 PCB is
size 'BB'.
NOTICE! A qualified service person, complying with all
applicable codes, should perform all required hardware
installation
© 2021 Carrier. All rights reserved.

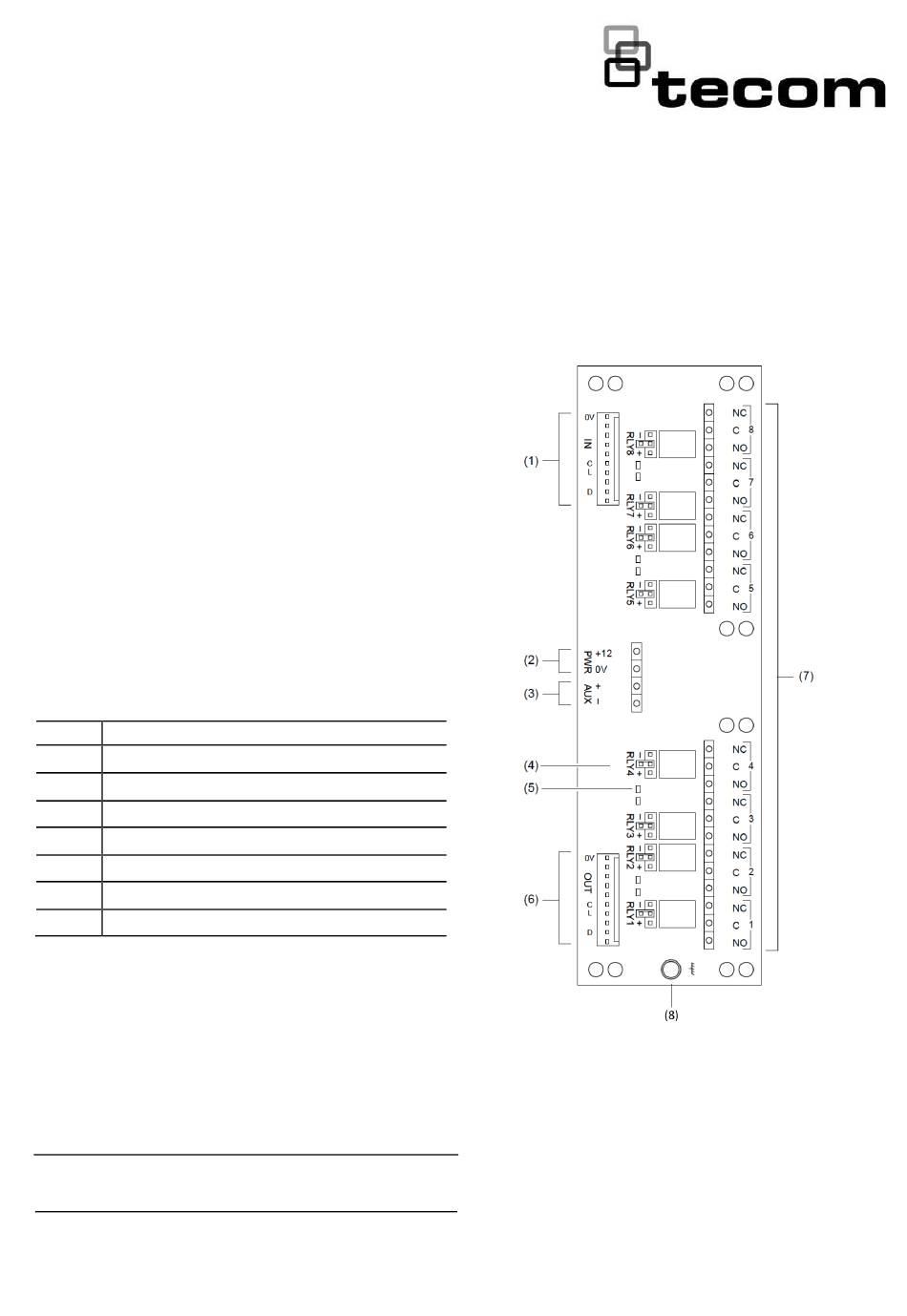

Figure 1: TS1041 layout and connectors
1. Data and power connection from Challenger panel, Intelligent
Access Controller, Network Access Controller, standard DGP, or
from a TS1041 card via ten-way LEV8-10-500P cable (supplied).
2. Optional +12 and 0V power terminals when using an external
power supply or heavier gauge cable than the supplied 10 -way
ribbon. If used, remove the power from the ten-way cable (see
"Wiring" on page 2).
3. Optional + and – auxiliary power terminals are separate from the
+12 and 0V power terminals. The AUX terminals may be used to
supply the relays' common contacts to + or – voltage, as set by
the relays' links. 48 VDC maximum.
P/N MAINST-TS1041 • REV 1.4 • ISS 1.4
1 / 2
