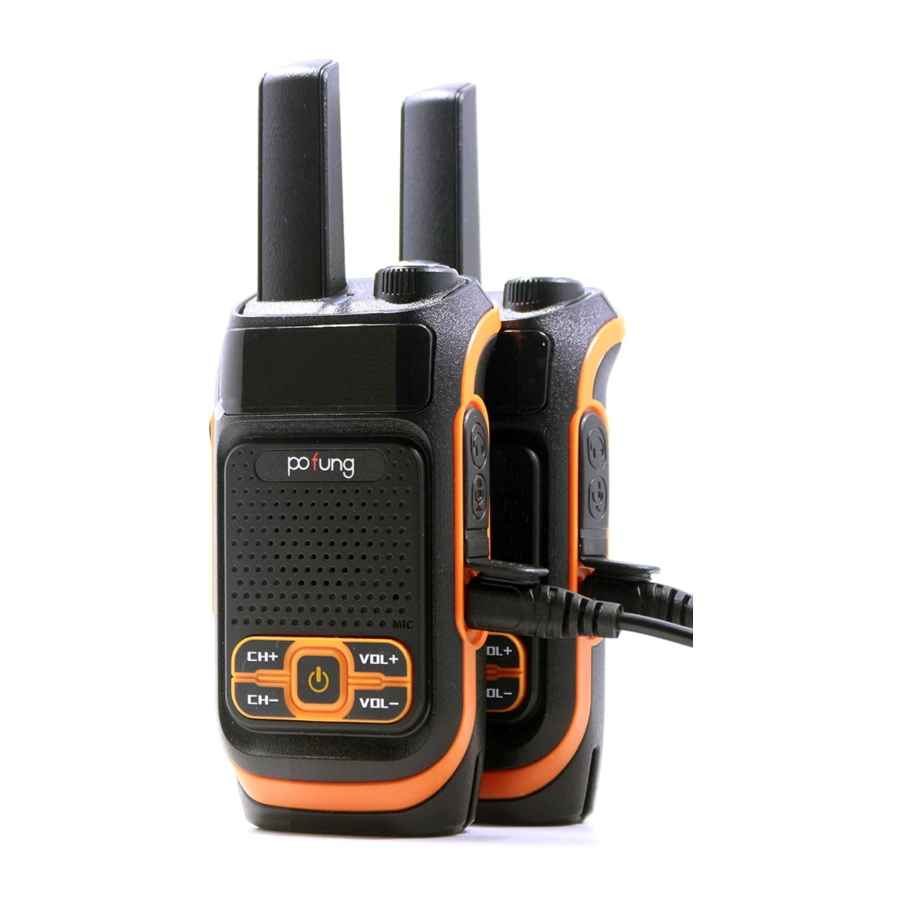

Pofung F19 is a multi-task FRS transceiver. Combining the latest technology in radio communication along with a sturdy
mechanical frame, F19 is the ideal and effective solution for the professionals who need to stay in touch with the working
team (in construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up with friends
and family.
To help you ward off bodily injury or property loss that may arise from improper operation, please read all the information
carefully before using our products.
FCC RF EXPOSURE
WARNING!
It is up to the user to properly operate this radio transmitter to insure safe operation. Please adhere to the
following:
Do not use the radio with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may
result.
Please contact your local dealer for a replacement antenna.
Device operation up to maximum duty cycle 50% and compliance with the public environment RF Exposure.
This EUT is compliance with SAR for controlled exposure limits in IC RSS-102 at operating duty factors of up to 50% and had
been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and IEC 62209. This
equipment should be installed and operated with a minimum distance of 2.5 cm must be maintained when held-to-face, and
body-worn operations are restricted to the approved original accessories (belt clip), a minimum distance of 0 cm.
Cet EUT est conforme au SAR pour les limites d'exposition contrôlées dans IC RSS-102 à des facteurs de service allant jusqu'à
50% et a été testé conformément aux méthodes et procédures de mesure spécifiées dans IEEE 1528 et IEC 62209. Cet
équipement doit être installé et utilisé avec une distance minimale de 2,5 cm doit être maintenu lorsqu'il est tenu face à face,
et les opérations portées sur le corps sont limitées aux accessoires d'origine approuvés (clip de ceinture), une distance
minimale de 0 cm.
■ Hand-Held Operation (Held-to-Face)
ATTENTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F19 and is the answer not in the manual?

Questions and answers

Summary of Contents for POFUNG F19

  • Page 1 Pofung F19 is a multi-task FRS transceiver. Combining the latest technology in radio communication along with a sturdy mechanical frame, F19 is the ideal and effective solution for the professionals who need to stay in touch with the working team (in construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up with friends and family.
  • Page 2: Fcc Part15 /Ic Compliance

    Fonctionnement de l’appareil, lorsque porté sur le corps. Cet appareil a été testé et s’est avéré conforme aux normes d’Industrie Canada et approuvé pour le port sur le corps à l’aide des accessoires Pofung inclus et conçus pour cet appareil.
  • Page 3: Precautions For Batteries

    Tout changement ou modification non approuvé expressément par la partie responsable pourrait annuler le droit à l’utilisateur de faire fonctionner cet équipement. IC COMPLIANCE ■ This device complies with Industry Canada license-exempt RSS standard(s).Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 4: Transportation Instructions

    To help your battery work normally or prolong its life, be sure to observe the following instructions: 1. Accumulated dust on charging connector may affect normal charging. Please use a clean and dry cloth to wipe it on a regular basis. 2.
  • Page 5: Care And Safety

    Care and Safety ■ Your F19 was designed to fulfill any warranty obligations and to enjoy this product for many years. As for all the electronically devices, we recommend you to follow this few suggestions: • Do not attempt to open the unit. Non-expert handling of the unit may damage it and/or annul the warranty.
  • Page 6: Package Contents

    Note: *Range may vary depending on environmental and/or topographical conditions. Programming software (optional) Thanks to Pofung Programming software CPS-F11-FRS, it is possible to increase the performance of your radio or to reduce its functionality by disabling some of the default features (CTCSS, DCS, TOT, VOX...) For further information, please consult the Programming software manual.
  • Page 7: Radio Overview

    Note: • Use only the supplied battery and AC adapter or approved accessories from pofung. • Charge time may vary depending on the battery life remaining. • The battery must be installed for the unit to operate, even if the unit is also connected to external power.
  • Page 8 1. Antenna 2. Led indicator: RED: TX; GREEN: RX. 3. Flashlight 4. PTT key: push this key to transmit, release it to receive. 5. Monitor key: Press and hold to enter MONITOR mode. 6. Lamp key: Short press the flashlight to turn on or off. Long press to lock or unlock function keys. 7.
  • Page 9 9. LED digital display 10. External Speaker/Microphone Jack- allows the connection with external devices such as headsets, microphones. 11. Speaker 12. Micro-USB Charging Port: DC5V USB input 13. Built-in microphone 14. Volume Up 15. Volume Down 16. Belt clip 17. Battery pack 18.
  • Page 10: Turning The Radio On And Adjusting The Volume

    OPERATIONS Turning the Radio On and Adjusting the Volume Press and hold [Power ] to turn the radio on. Increase the speaker volume by pressing [VOL +]. To decrease the volume, press [VOL -]. Press and hold [Power ] again to turn the radio off. Choosing a Channel Your radio has 22 channels and 260 Privacy codes you can use to talk to others.
  • Page 11 The higher is the level, the louder will be the Squelch. By default, the Squelch level of F19 is set on level 4. Make sure you do not set an excessively high squelch level because in this case you may not be able to receive weaker signals.
  • Page 12: On-Line Service And Support

    CTCSS/DCS tones won’t be received. ON-LINE SERVICE AND SUPPORT The Pofung website provides additional information about obtaining service or support for the Pofung line of two-way radios and accessories. Visit: www.pofungshop.com Mail: service@pofungshop.com Appendix A. – FRS Channels and Frequencies CH.No...
  • Page 13: Appendix B. - Technical Specifications

    Appendix B. – Technical Specifications General Part Frequency Range Working temperature -10℃ to +40℃ Operation Voltage DC 3.7 V ±10% Operation Mode Simplex Dimensions 154mm×56mm×32mm (with Antenna) Weight 139g (Battery pack included) Antenna Impedance 50ohm Duty cycle 5/5/90% Transmitter Part RF Output Power 2W (FRS) FM Modulation...
  • Page 14: Appendix C. - Trouble Shooting Guide

    Appendix C. – Trouble shooting guide Phenomena Analysis Solution The battery may be installed improperly. Remove and reattach the battery. The battery power may run out. Recharge or replace the battery. You cannot turn on the radio. The battery may suffer from poor contact caused Clean the battery contacts or replace the by dirty or damaged battery contacts.
  • Page 15 Disclaimer The accuracy and completeness of the contents are sought in the process of compilation, but we do not bear any responsibility for the possible errors or omissions. With the continuous development of technology, we reserve the right to change the design and specification of the product without notice. No copy, modification, translation and dissemination of this handbook may be made in any form without the prior written authorization of our department.
