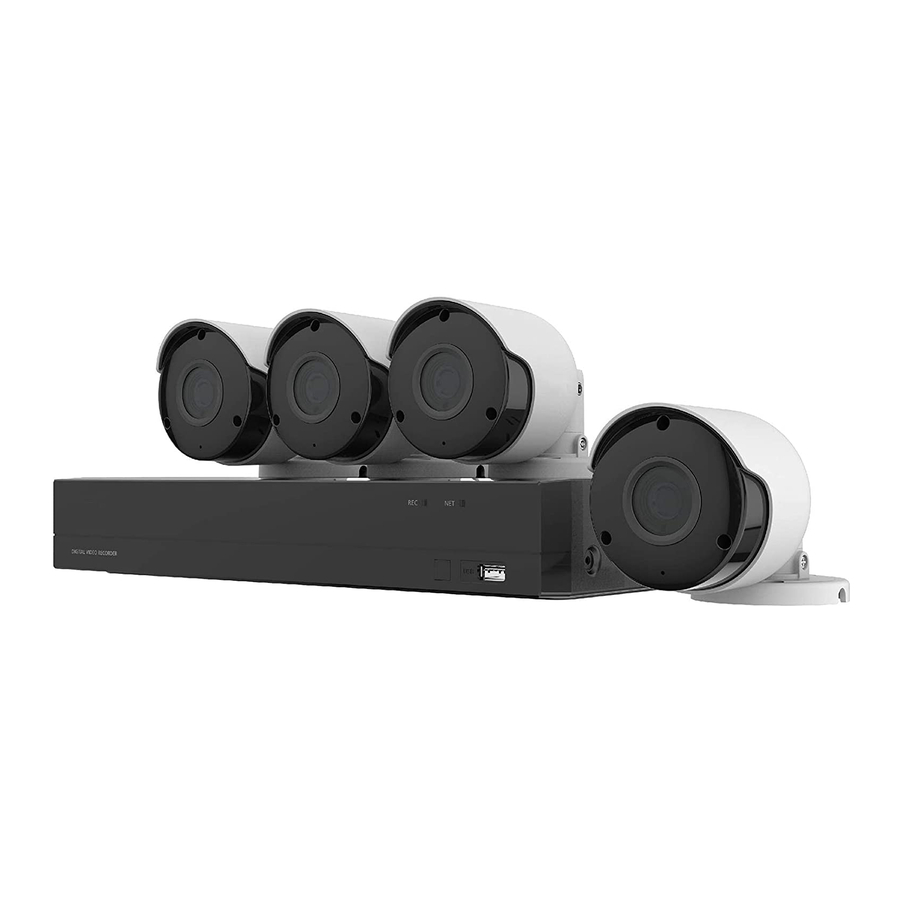

Nivian NV-KIT41-4CAM-5M Quick Manual

Package
Content
Cameras (x4)
NVR
Remote control Mouse
Power supply HDMI Cable
RJ-45 cable Mounting
(x5) accessories
Available Kits
Channels
Maximum resolution
NVR
Lens
Maximum resolution
CAMERAS
No. of cameras

Connections

1. Plug one end of the included 2. Plug the other end of the
HDMI cable into the HDMI port HDMI cable into the back of
at the back of the NVR. your TV or monitor.
POE CABLE WITH COVERS
CAMERA CABLE
COMPLETION
5. In case of the cables will be 6. Plug the other end of the
placed in the outside, insert Ethernet cable joined previous-
one Ethernet cable in the cover ly with the camera, into a port
and join the end of it with the at the back of your NVR.
cable from the camera.
NV-KIT41-4CAM-5M NV-KIT81-4CAM-5M
4 8
8MP (4K) 8MP (4K)
2.8mm (103°) 2.8mm (103°)
5MP (2592x1944) 5MP (2592x1944)
4 4
3. Plug the USB mouse into the
USB port at the back of the
NVR.
7. Plug the mouse into the USB
port at the back of the NVR.
Quick Guide
NV-KIT81-4CAM-8M
8
8MP (4K)
3.6mm (85°)
8MP (4K)
4
4. Plug one end of the included
Ethernet cable into the LAN
port at the back of the NVR.
8. Connect the NVR power
adapter to the Power Input on
the rear of the NVR.
