Delta-Therm DTC-24 Series Quick Start Manual

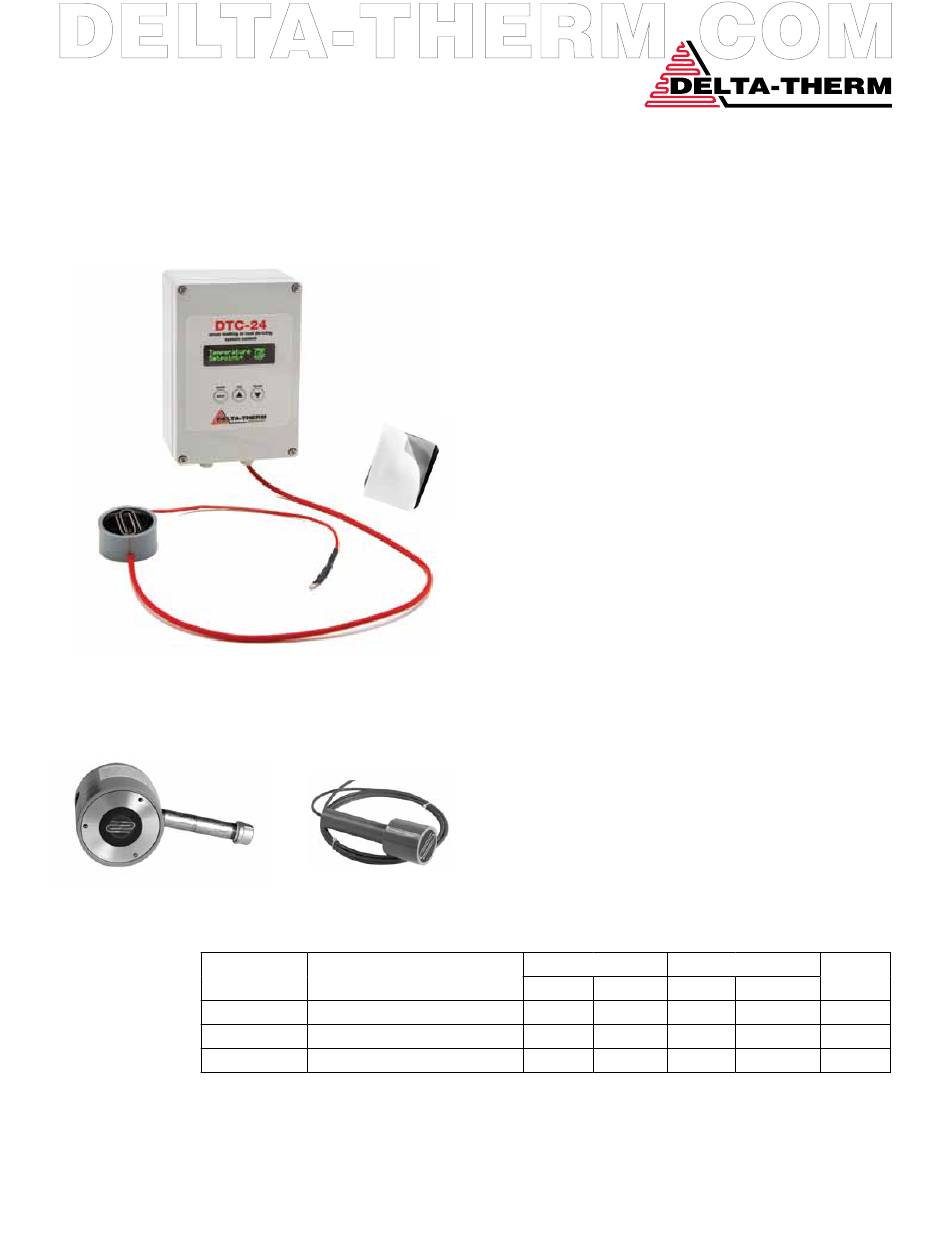

Detail 1. DTC-24R model; control panel with RG sensor and VHB
pad.
Detail 2. MP Sensor.
Model #
DTC-24S
DTC-24R
DTC-24A
DELTA-THERM Corporation, 6711 Sands Rd Suite A, Crystal Lake, IL 60014
DTC-24 CONTROL SeRieS
Snow Melting or Roof and Gutter
De-icing Control
DESCRIPTION
The DTC-24 is designed to detect snow or ice and automati-
cally activate a roof de-icing or snow melting cable control
panel.
DTC-24 CONTROl
The DTC-24 control consists of a NEMA 4X enclosure with
a 2 AMP N.O. (Normally Open) relay output contact and a
temperature/moisture sensor. The DTC-24 receives power
from an external class 2 transformer.
A low voltage 6-conductor #22 AWG cable connects the
DTC-24 control to the sensor. All cable leads are color coded
for ease of field wiring.
The DTC-24R comes with a VHB pad for attaching the sen-
sor to the inside of a gutter.
CONTROl fEaTuRES
Detail 3. MMP Sensor.
application
Snow Melting
Roof De-icing
Snow Melting or Roof De-icing
aPPlICaTIONS
Snow Melting or Roof De-icing
aPPROvalS
Powered by a UL Listed Class 2 transformer
• 3-button key pad with single level menu for simple pro-
gramming.
• LED digital display
- actual air or slab temperature
- moisture status (wet or dry)
- sensor wiring alarm (if open circuit)
- system status
• Low voltage wiring
• Can be used with optional RID (remote indicating device)
• 0-24 hours adjustable timer, set in increments of one
hour with manual timer deactivation
• Manual temperature adjustment
• Dry contact for remote alarm indication
Standard Sensor
Model # Quantity Model #
MP 1
RG 1
MMP 1
(847) 526-2407 Fax (847) 526-4456
Secondary Sensor
Quantity RID
1 1
MP2
RGS 3 1
SMMP 3 1
(800) 526-7887
