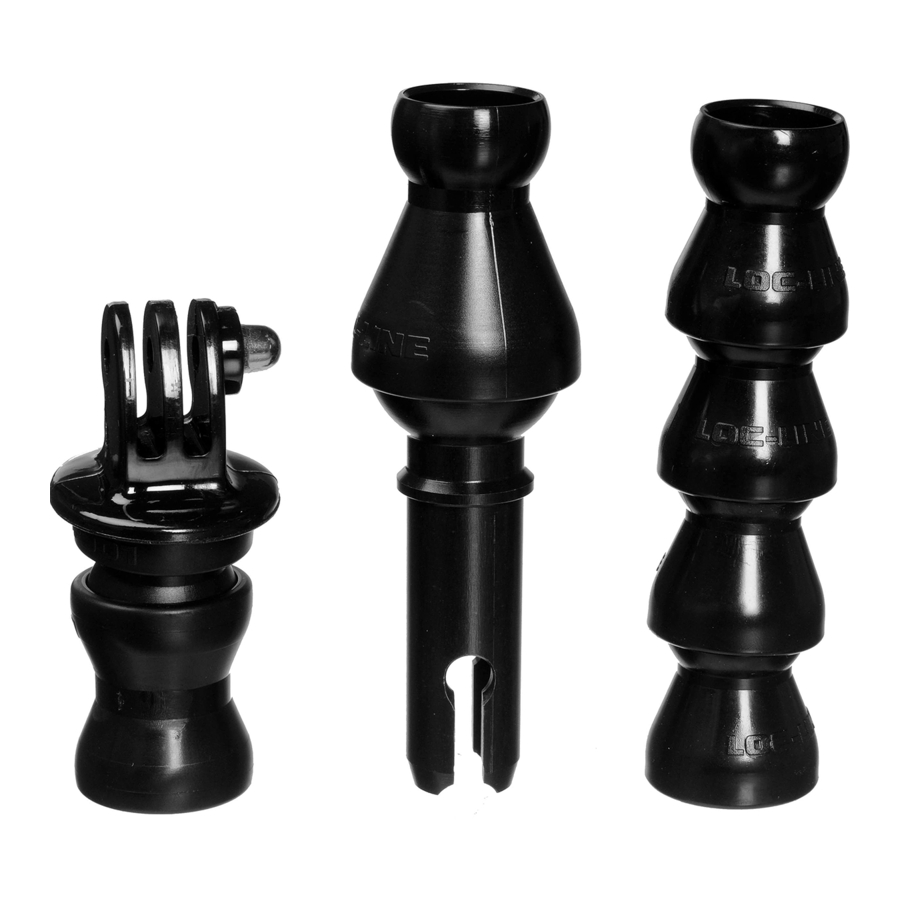

2602.3 GoPro Mount Kit
for Quick Release Handle
A s s e m b l y I n s t r u c t i o n s
1. Apply a thin film of lubricant
to attachment points as
shown below.
2. Press each component
together.
Attach this end to
to a GoPro Housing
IKELITE #0184.1
Silicone Lube
IKELITE #0184.1
Silicone Lube
Attach this end to a
Quick Release Handle
(see reverse side)
Attachment Point
Attachment Point
Advertisement
Table of Contents
Related Manuals for Ikelite 2602.3
Summary of Contents for Ikelite 2602.3
- Page 1 2602.3 GoPro Mount Kit for Quick Release Handle A s s e m b l y I n s t r u c t i o n s 1. Apply a thin film of lubricant to attachment points as shown below.
- Page 2 Button should return to starting position when assembled kit is properly attached. GoPro Stem Mount Push Button Ikelite Quick Release Handle (not included in kit) Ikelite Underwater Systems 50 West 33rd Street Indianapolis, IN 46208 USA www.ikelite.com © 2013 Ikelite Underwater Systems 2602.3_GoPro_Mnt_Kit_Rel_Han_01-1113...
