Ikelite 4081.74 Instruction Manual

4081.74 1-inch Ball Mount
I n s t r u c t i o n M a n u a l
1. Insert Allen Head Screw into top of Ball Mount.
2. Insert Ball Mount with Screw into Steady Tray Mounting Hole as
shown. Guide Pin should line up with Guide Pin Hole.
3. Slide Nylon Washer and Split Lock-washer over Allen Screw.
4. Rotate Nut onto Allen Screw clockwise and tighten with an
Open/Box End or Adjustable Wrench. Use Allen Wrench to keep
Allen Head Screw from turning
while tightening.
Steady Tray
Mounting Hole
Open/Box
End Wrench
(not included)

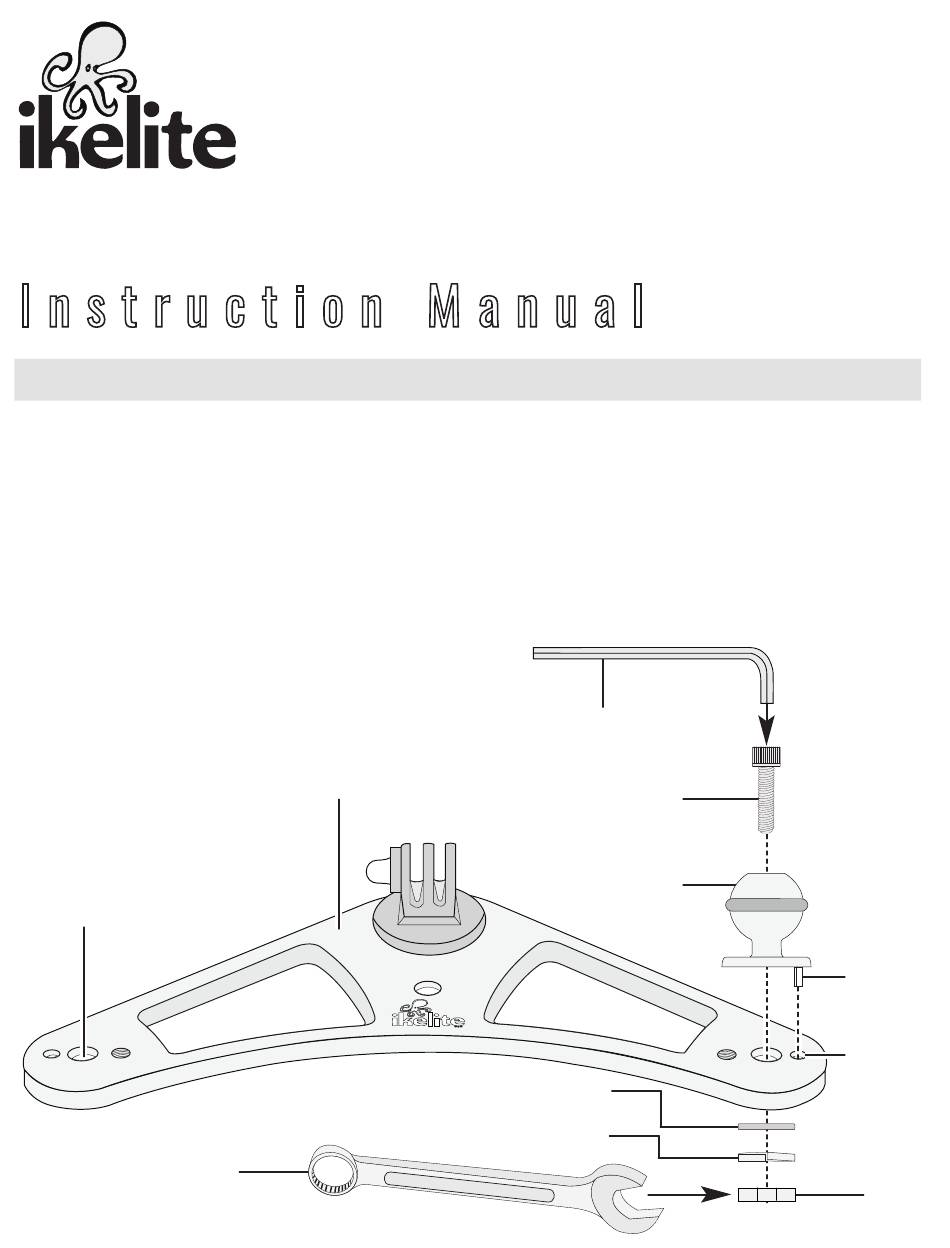

Installation Procedure

Steady Tray
(not included)
Split Lock-washer
for
Allen Wrench
Allen Screw
Ball Mount
Nylon Washer
Steady Tray
Guide
Pin
Guide
Pin
Hole
Nut
